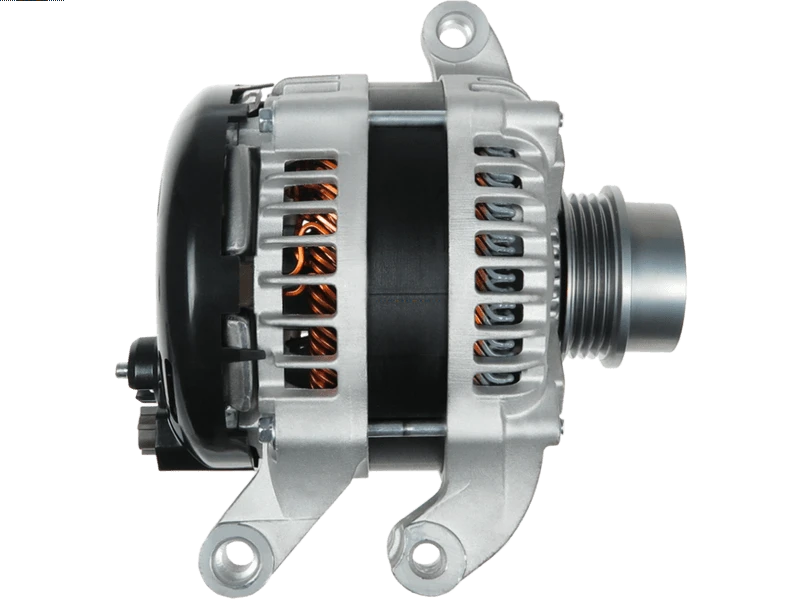

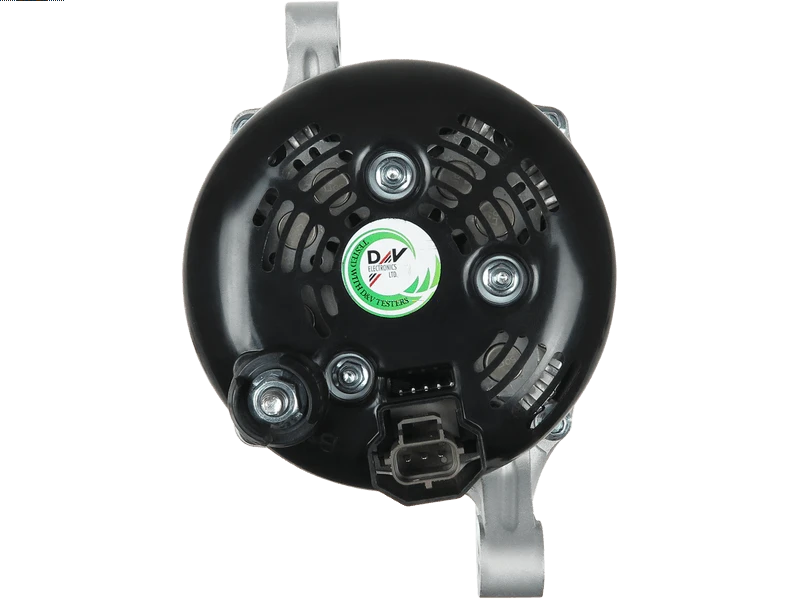

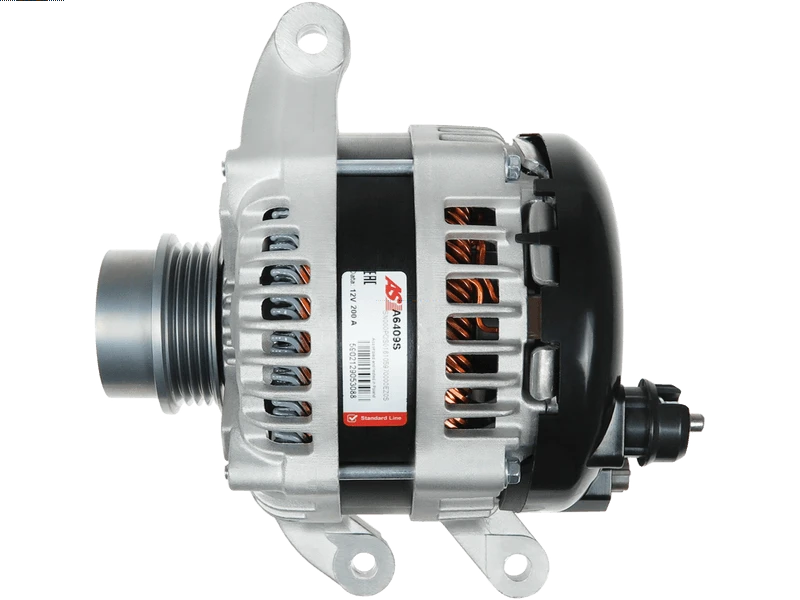

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 788.96 including GST
NZ$ 686.05 excluding GST
or four payments of $197.24
with
Learn More
each
A6409S
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
104210-6571Associated Numbers
104210-0300 104210-6571 11664 11664R 5272293 90-29-5845 A-80594 DG1T-10300-AE DG1T-10300-FA DG1Z-10346-D UD13749ASpecifications
| Amp | 200 A |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 207 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57.50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 20 mm |
| Pad mount thickness (E.2) | 20 mm |
| Pad mount thickness (E.3) | 20 mm |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 41 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Edge 2.0 | 01.2015-12.2015 | |
| FORD | Edge 2.0 | 01.2016-12.2016 | |
| FORD | Explorer 2.0 | 01.2013-12.2013 | |
| FORD | Explorer 2.0 | 01.2014-12.2014 | |
| FORD | Explorer 2.0 | 01.2015-12.2015 | |
| FORD | Explorer 2.3 | 01.2016-12.2016 | |
| FORD | Fusion 1.5 | 01.2014-12.2014 | |
| FORD | Fusion 1.5 | 01.2015-12.2015 | |
| FORD | Fusion 1.5 | 01.2016-12.2016 | |
| FORD | Fusion 1.6 | 01.2013-12.2013 | |
| FORD | Fusion 1.6 | 01.2014-12.2014 | |
| FORD | Fusion 1.6 | 01.2015-12.2015 | |
| FORD | Fusion 2.0 | 01.2013-12.2013 | |
| FORD | Fusion 2.0 | 01.2014-12.2014 | |
| FORD | Fusion 2.0 | 01.2015-12.2015 | |
| FORD | Fusion 2.0 | 01.2016-12.2016 | |
| FORD | Fusion 2.5 | 01.2013-12.2013 | |
| FORD | Fusion 2.5 | 01.2014-12.2014 | |
| FORD | Fusion 2.5 | 01.2015-12.2015 | |
| FORD | Fusion 2.5 | 01.2016-12.2016 | |
| FORD | Taurus 2.0 | 01.2013-12.2013 | |
| FORD | Taurus 2.0 | 01.2014-12.2014 | |
| FORD | Taurus 2.0 | 01.2015-12.2015 | |
| FORD | Taurus 2.0 | 01.2016-12.2016 | |
| LINCOLN | MKC 2.0 | 01.2015-12.2015 | |
| LINCOLN | MKC 2.3 | 01.2015-12.2016 | |
| LINCOLN | MKT 2.0 | 01.2013-12.2013 | |
| LINCOLN | MKT 2.0 | 01.2014-12.2014 | |
| LINCOLN | MKT 2.0 | 01.2016-12.2016 | |
| LINCOLN | MKT 3.5 | 01.2013-12.2013 | |
| LINCOLN | MKT 3.5 | 01.2014-12.2014 | |
| LINCOLN | MKT 3.5 | 01.2015-12.2015 | |
| LINCOLN | MKT 3.5 | 01.2016-12.2016 | |
| LINCOLN | MKT 3.7 | 01.2013-12.2013 | |
| LINCOLN | MKT 3.7 | 01.2014-12.2014 | |
| LINCOLN | MKT 3.7 | 01.2015-12.2015 | |
| LINCOLN | MKT 3.7 | 01.2016-12.2016 | |
| LINCOLN | MKZ 2.0 | 01.2013-12.2013 | |
| LINCOLN | MKZ 2.0 | 01.2014-12.2014 | |
| LINCOLN | MKZ 2.0 | 01.2015-12.2015 |
Reference Information
| 104210-0300 | DENSO |
| 104210-6571 | DENSO |
| 104211-0300 | DENSO |
| 11664 | WAI / TRANSPO |
| 11664N | WAI / TRANSPO |
| 11664R | WAI / TRANSPO |
| 5272293 | FORD |
| 90-29-5845 | WILSON |
| A-80594 | DIXIE |
| DG1T-10300-AE | FORD |
| DG1T-10300-FA | FORD |
| DG1Z-10346-D | FORD |
| GL8670 | FORD |
| UD13749A | AS-PL |
