Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 472.86 including GST
NZ$ 411.18 excluding GST
or four payments of $118.22
with
Learn More
each
A6440S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
421000-0800Associated Numbers
04801866AB 0986UR6072 11574 421000-0800 4801866AB 4801866AC 90-29-5779 A-80561 ALN0801 UD14265A
ARROWHEAD AND0594
CHRYSLER MOTORS 04801866AB, 04801866AC, 4801866AB, 4801866AC
DENSO 421000-0800, 421000-0801
J&N ELECTRICAL PRODUCTS 400-52412, 400-52412R
LESTER 11574
Specifications
| Amp | 160 A |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 14 mm |
| Length (L.1) | 175 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 97 mm |
| Pad mount thickness (E.2) | 93 mm |
| Pad mount thickness (E.3) | 93 mm |

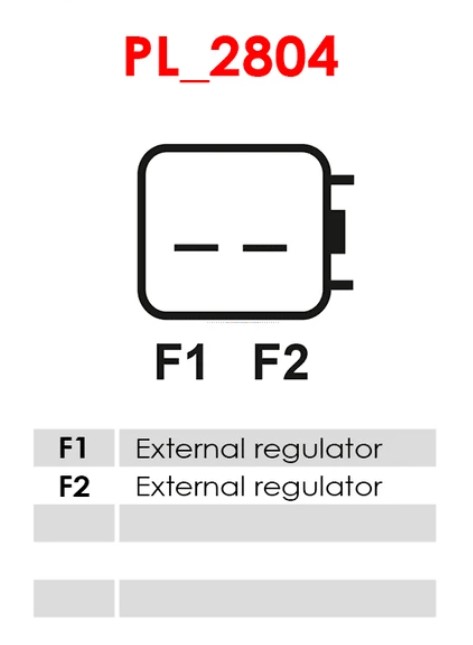

| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 53 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | 300 5.7 | 01.2011-12.2015 | |
| DODGE | Challenger 5.7 | 01.2011-12.2016 | |
| DODGE | Challenger SRT 6.4 | 01.2014- | |
| DODGE | Charger 5.7 | 01.2011-12.2015 | |
| JEEP | Grand Cherokee SRT8 | 01.2014- |
Reference Information
| 04801866AB | CHRYSLER |
| 0986UR6072 | BOSCH |
| 11574 | WAI / TRANSPO |
| 11574N | WAI / TRANSPO |
| 27-8602 | ELSTOCK |
| 421000-0800 | DENSO |
| 4801866AB | CHRYSLER |
| 4801866AC | CHRYSLER |
| 835.321.160.050 | PSH |
| 90-29-5779 | WILSON |
| A-80561 | DIXIE |
| ALN0801 | KRAUF |
| LRA04493 | LUCAS |
| LRA4493 | LUCAS |
| UD14265A | AS-PL |
Video/Publications
