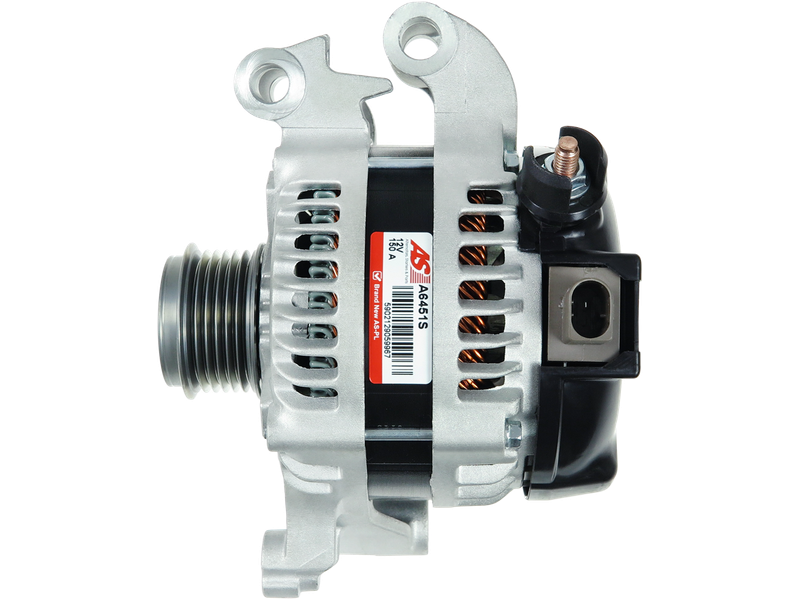

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 598.83 including GST
NZ$ 520.72 excluding GST
or four payments of $149.71
with
Learn More
each
A6451S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
104210-2330Associated Numbers
0986UR6176 104210-2330 11636 11636N 11636R 23025 555164RI 90-29-5844 A-80590 A6451S ALN6540 ALN6540AN CJ5T-10300-BB CJ5Z-10346-D UD14253ASpecifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 40 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 12.50 mm |
| Diameter (D.3) | 13.50 mm |
| Length (L.1) | 164 mm |
| Mount Inside Length or Pad Mount C-C (C) | 52 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 72 mm |
| Pad mount thickness (E.2) | 72 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52.50 mm |
| Pulley to Mount Distance (A) | 12 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Escape 1.6 | 01.2013-12.2016 |
Reference Information
| 0986UR6176 | BOSCH |
| 104210-2330 | DENSO |
| 11636 | WAI / TRANSPO |
| 11636N | WAI / TRANSPO |
| 11636R | WAI / TRANSPO |
| 23025 | DELCO |
| 555164RI | KUHNER |
| 90-29-5844 | WILSON |
| A6451S | AS-PL |
| A-80590 | DIXIE |
| ALN6540 | KRAUF |
| ALN6540AN | KRAUF |
| CJ5T-10300-BB | FORD |
| CJ5Z-10346-D | FORD |
| UD14253A | AS-PL |
Video/Publications
