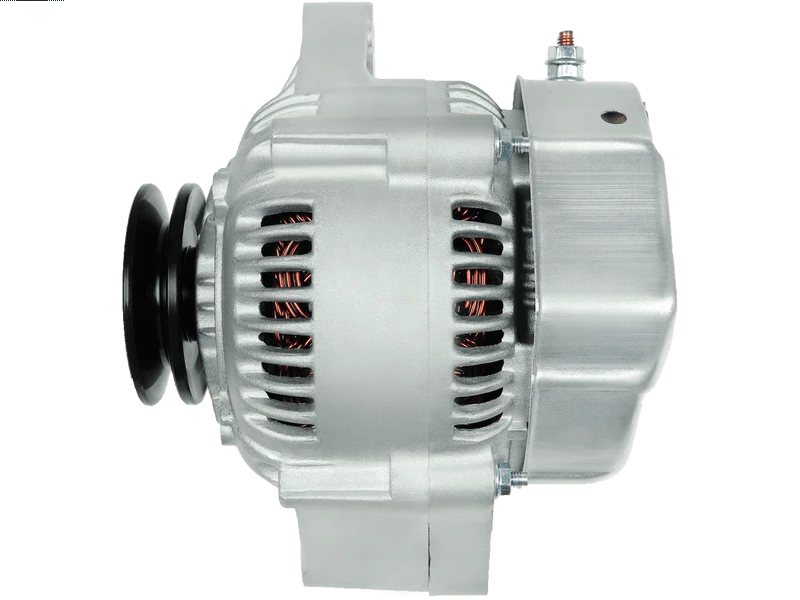

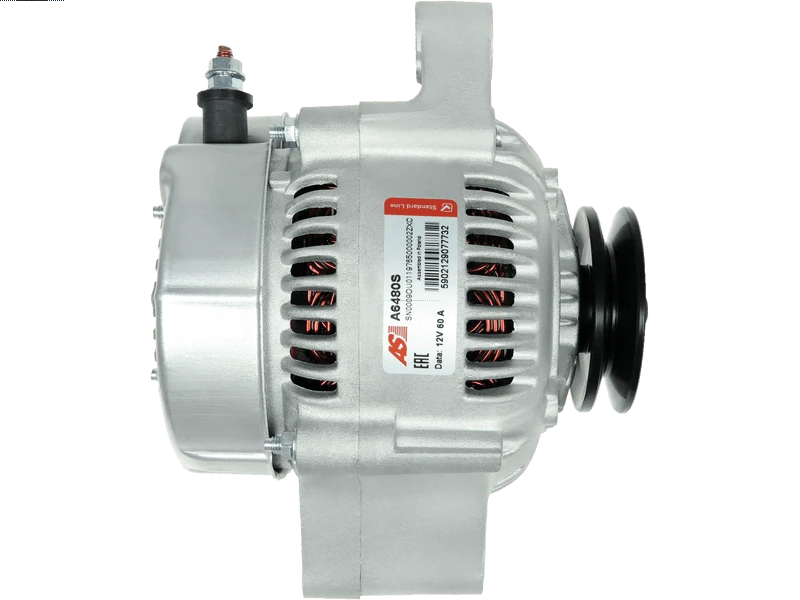

A6480S - Brand new AS-PL Alternator

Specifications

Amp	60 A
Bottom Mounting Foot Width (B)	59 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10.5 mm
Grooves	1 qty
Groove Width (W.1)	9 mm
Length (L.1)	156 mm
OEM Product	No
Outside Diameter (O.D.1)	46 mm
Outside Diameter (O.D.2)	67 mm
Plug Code	PL_3314
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	95 mm
Pulley Type	SOLID
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	4-Runner 2.4	[22R]	01.1993-12.1996
TOYOTA	Hilux 2.4	[22R]	01.1993-12.1998
VW	Taro 2.4	[22R]	01.1993-12.1997

Reference Information

A6480S 27060-35150 CAL40341 CAL40341RS 90-29-5252N 13492N 101211-0201 101211-0200 A-8415 13409N EAA-223557 90-29-5252 UD90103A DRA0915 9213913 LRA02902 27060-35160 2040341 89213913 ALT30130 CAL40341OS CAL40341ES 28-5516 ALT6338 LRA2902 CAL40341GS 101211-0191 27030-35150 101211-0190 CAL40341AS 195.593.060 EAA-223286

Video/Publications

101211-0190 101211-0191 101211-0200 101211-0201 13409N 13492N 195.593.060 2040341 27030-35150 27060-35150 27060-35160 28-5516 89213913 90-29-5252 90-29-5252N A-8415 ALT30130 CAL40341 CAL40341AS CAL40341ES CAL40341GS CAL40341OS CAL40341RS DRA0915 EAA-223286 EAA-223557 LRA02902 LRA2902 UD90103A
