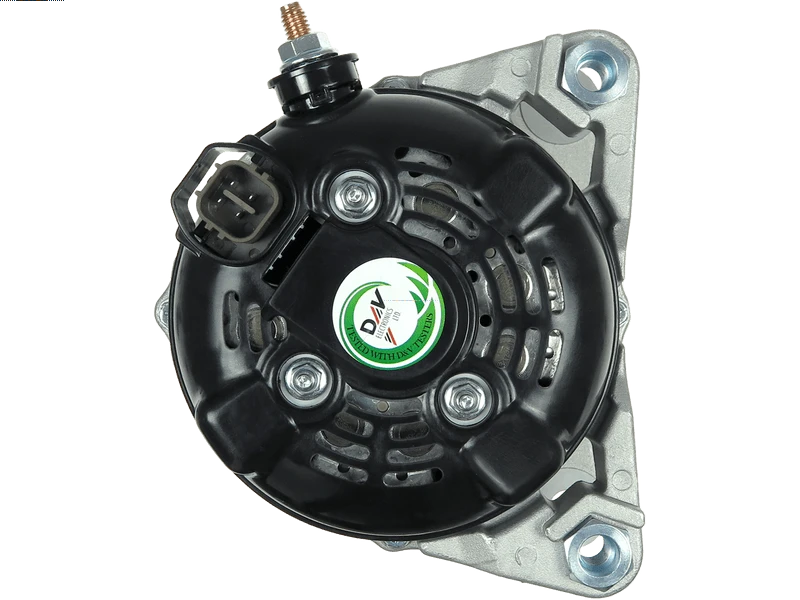

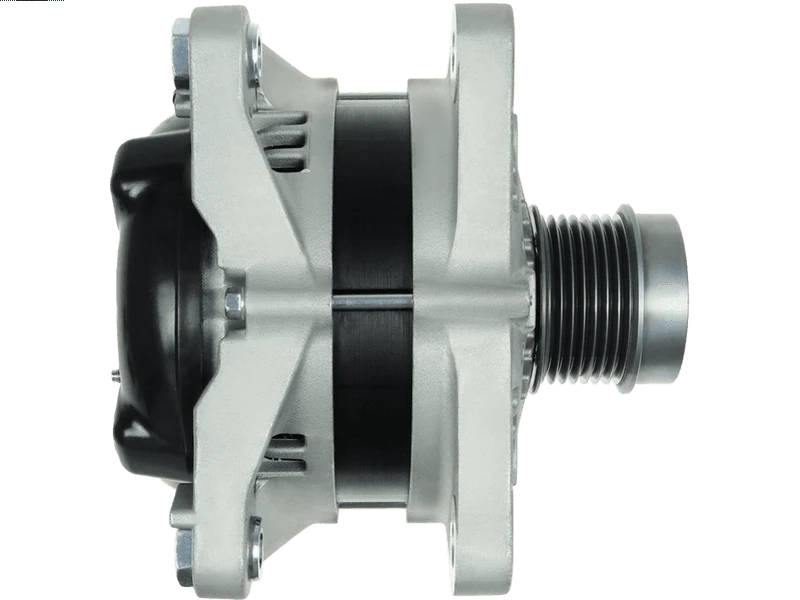

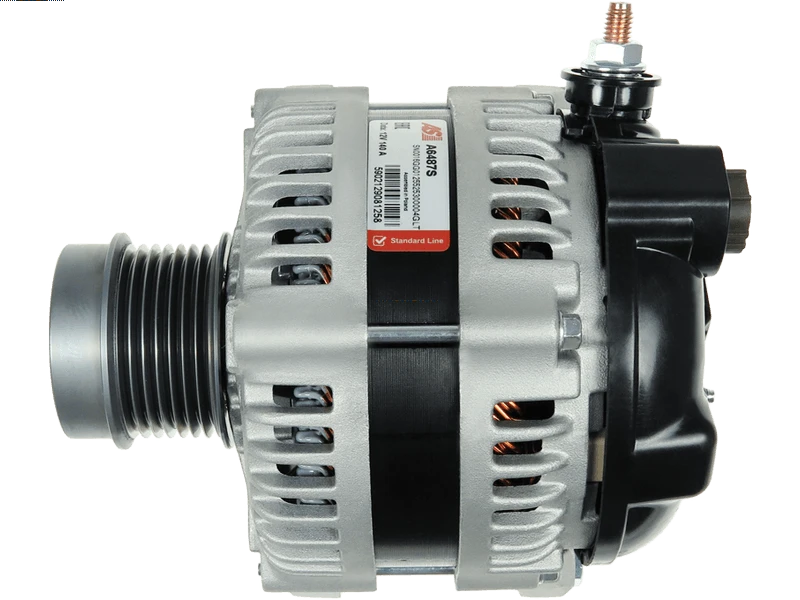

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 575.61 including GST
NZ$ 500.53 excluding GST
or four payments of $143.90
with
Learn More
each
A6487S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-1180Associated Numbers
104210-1180 2040388 28-7827 31400-67J1 31400-67J10 554533RI 554533RIR 89215461 CAL40388 CAL40388AS CAL40388ES CAL40388GS CAL40388OS CAL40388RS LRA04218 LRA4218 UD14833ASpecifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55.50 mm |
| OEM Product | No |
| Plug Code | PL_4001 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 32 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Grand Vitara 1.9 DDiS | [F9QB] | 03.2006-08.2008 |
| SUZUKI | Grand Vitara 1.9 DDiS 4x4 | [F9QB] | 10.2005-02.2015 |
Reference Information
| 104210-1180 | DENSO |
| 2040388 | SANDO |
| 28-7827 | ELSTOCK |
| 31400-67j1 | SUZUKI |
| 31400-67J1 | SUZUKI |
| 31400-67J10 | SUZUKI |
| 3140067J10000 | SUZUKI |
| 3140067J11 | SUZUKI |
| 3140067J11000 | SUZUKI |
| 447046 | LOGISTIK |
| 554533RI | KUHNER |
| 554533RIR | KUHNER |
| 89215461 | POWERMAX |
| CAL40388 | CASCO |
| CAL40388AS | CASCO |
| CAL40388ES | CASCO |
| CAL40388GS | CASCO |
| CAL40388OS | CASCO |
| CAL40388RS | CASCO |
| J5118031 | HERTH+BUSS |
| LRA04218 | LUCAS |
| LRA4218 | LUCAS |
| UD14833A | AS-PL |
Video/Publications
A6487SRelated Items
