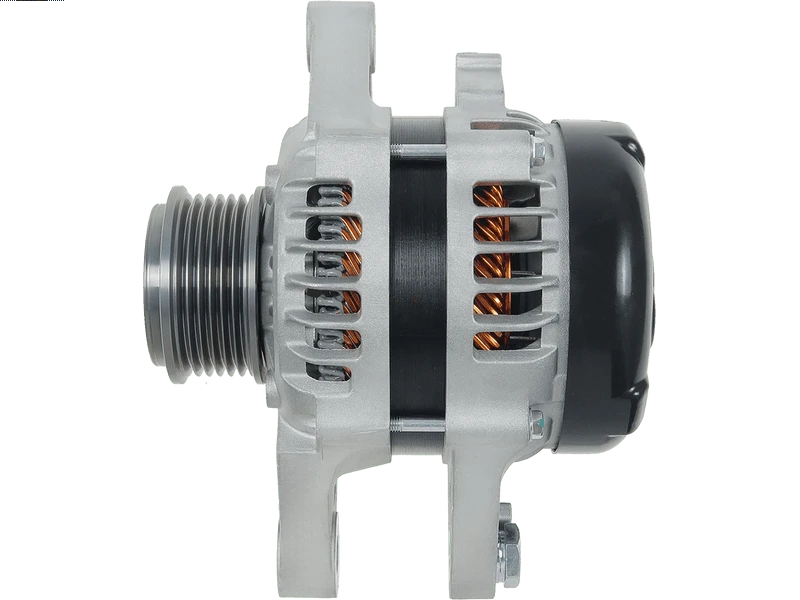

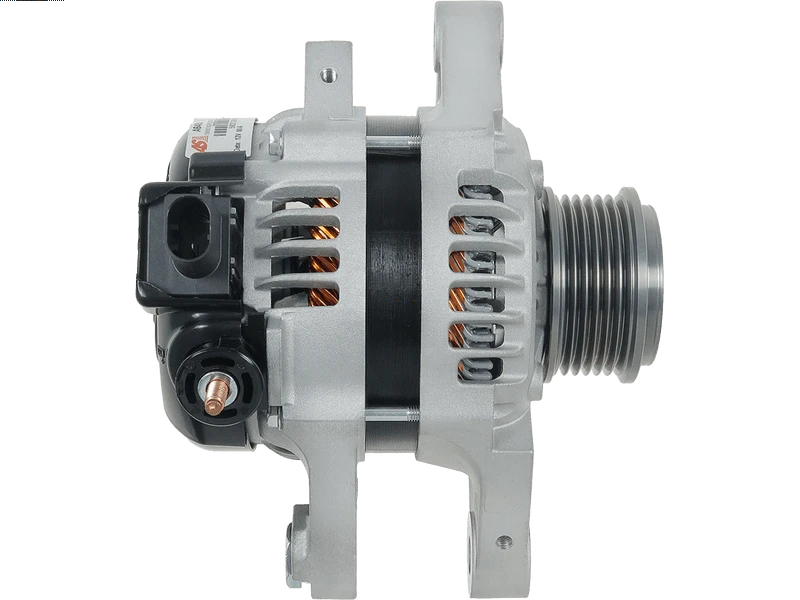

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 548.62 including GST
NZ$ 477.06 excluding GST
or four payments of $137.16
with
Learn More
each
A6489S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
104210-9820Associated Numbers
104210-9820 27060-0Q160 28-7579 40001 89216318 AEK3954 B000912080 DA2567 DAN1307 DENDAN1307 DRA1457 LRA03969 LRA3969 UD14842ASpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 162 mm |
| Mount Inside Length or Pad Mount C-C (C) | 37 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 29.50 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C1 1.0 VTi | [1KR-FE] | 01.2014- |
| PEUGEOT | 108 1.0 VTi | [1KR-FE] | 01.2014- |
| TOYOTA | Aygo 1.0 | [1KR-FE] | 01.2014- |
Reference Information
| 104210-9820 | DENSO |
| 1612351980 | PEUGEOT |
| 20132745BN | REAL |
| 2040547.0 | SANDO |
| 27060-0Q160 | TOYOTA |
| 270600Q16084 | TOYOTA |
| 28-7579 | ELSTOCK |
| 40001 | CEVAM |
| 89216318 | POWERMAX |
| A12DE0810A2 | SIDAT |
| AEK3954 | AUTOELECTRO |
| B000912080 | CITROEN |
| CAL40547AS | CASCO |
| DA2567 | DELCO |
| DAN1307 | DENSO |
| DENDAN1307 | WOODAUTO |
| DRA1457 | DELCO |
| J5112215 | HERTH+BUSS |
| LRA03969 | LUCAS |
| LRA3969 | LUCAS |
| UD14842A | AS-PL |
Video/Publications
A6489SView your shopping basket or Browse other items in Alternators.
