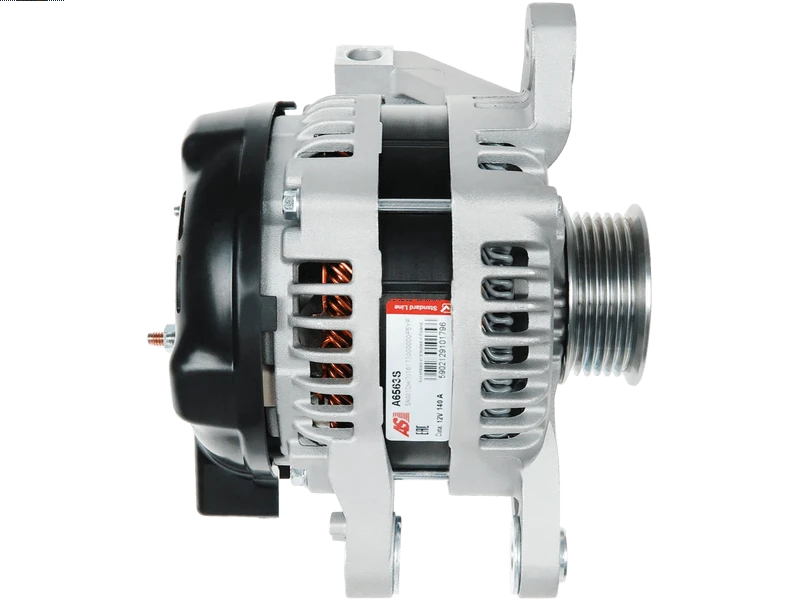

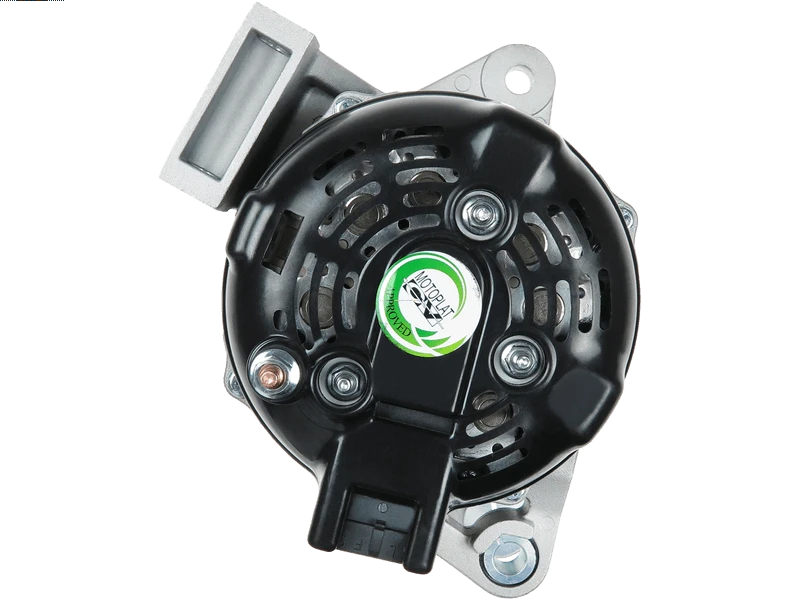

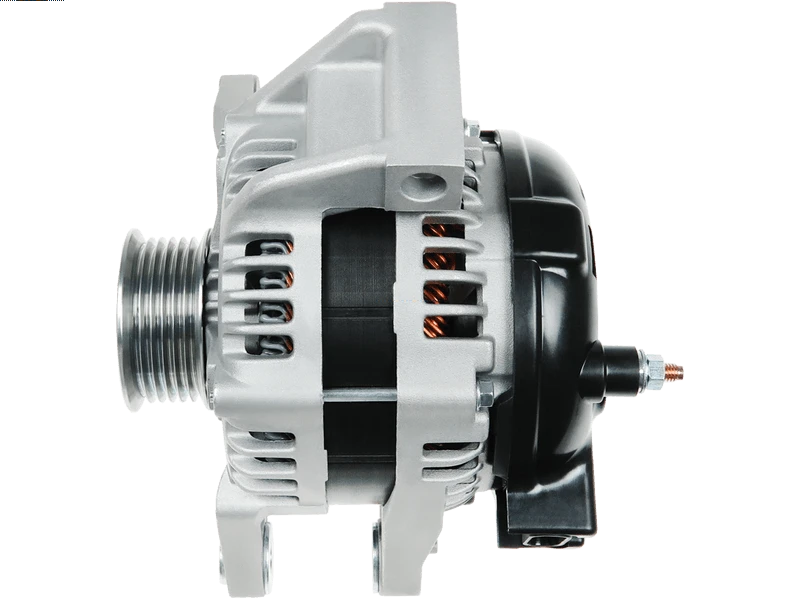

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 555.39 including GST
NZ$ 482.95 excluding GST
or four payments of $138.85
with
Learn More
each
A6563S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
104210-0467 104210-0468 104210-1200 104210-3060 104210-3070 104210-3330 12250 12661 13919 25697766 553967RI 553967RID 554370RI 94627 A-8922 A-8923 AL8784X UD15382A UD15384ASpecifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 17.50 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Diameter (D.4) | 13 mm |
| Length (L.1) | 178 mm |
| Mount Inside Length or Pad Mount C-C (C) | 31 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Plug Code | PL_4306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 23.30 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CADILLAC | Bonneville 4.6 V8 | 01.2004-12.2005 | |
| CADILLAC | Deville 4.6 V8 | 01.2001-12.2005 | |
| CADILLAC | Seville 4.6 V8 | 01.2001-12.2004 |
Reference Information
| 0986CR0305 | BOSCH |
| 0986UR0305 | BOSCH |
| 104210-0467 | DENSO |
| 104210-0468 | DENSO |
| 104210-3060 | DENSO |
| 104210-3070 | DENSO |
| 104210-3330 | DENSO |
| 12250 | DELCO |
| 12661 | DELCO |
| 13919 | WAI / TRANSPO |
| 25697765 | GM |
| 25697766 | DELCO |
| 25759776 | GM |
| 554370RI | KUHNER |
| 835.575.140.030 | PSH |
| 94627 | DELCO |
| A-8922 | DIXIE |
| A-8923 | DIXIE |
| AL8784X | BOSCH |
| ALTE241 | 3EFFE |
| PRAE241 | 3EFFE |
| STX101291 | STARDAX |
| UD15384A | AS-PL |
Video/Publications
A6563SRelated Items
