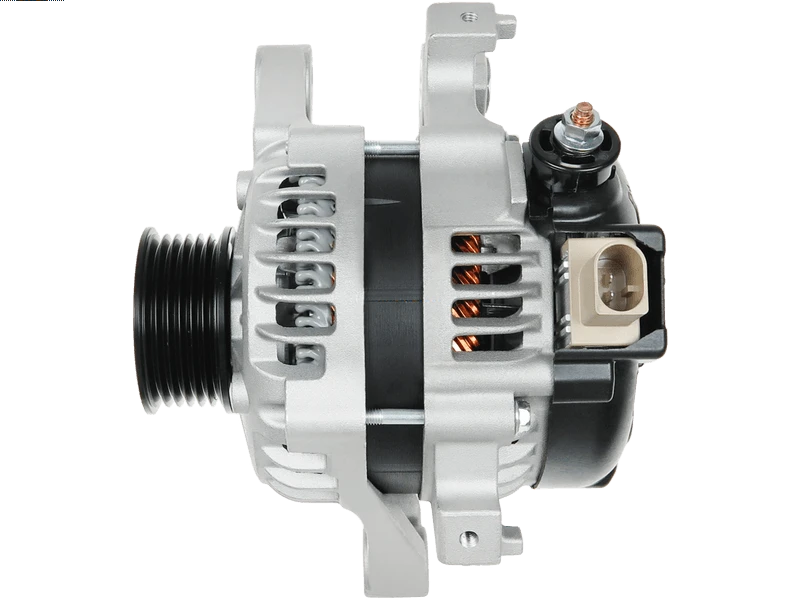

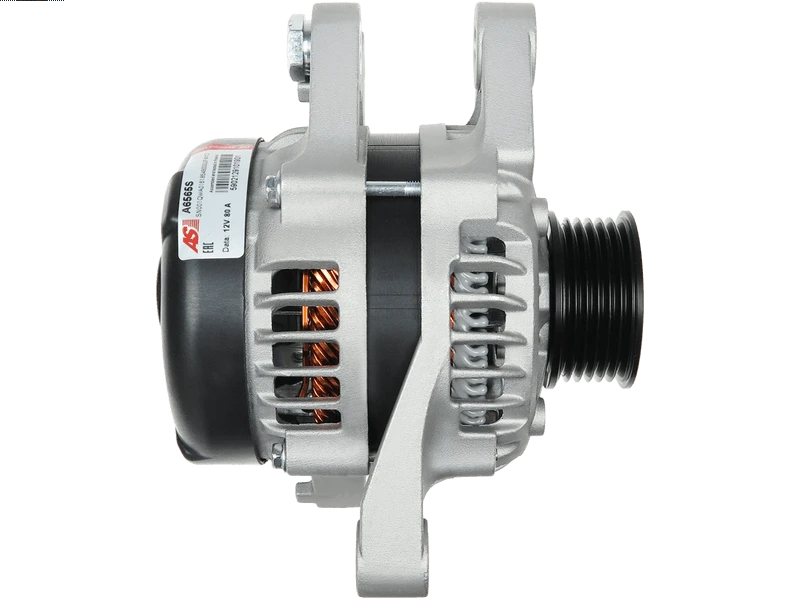

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 519.63 including GST
NZ$ 451.85 excluding GST
or four payments of $129.91
with
Learn More
each
A6565S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
270600-Y190Associated Numbers
104210-9680 270600-Y190 27060B-Z310 ALN9190 UD15387ASpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 153 mm |
| Mount Inside Length or Pad Mount C-C (C) | 36.50 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Vios 1.5 | [5NRFE] | 01.2013-12.2016 |
| TOYOTA | Yaris 1.5 | [4NRFE] | 01.2013-12.2016 |
Reference Information
| 104210-9680 | DENSO |
| 270600-Y190 | TOYOTA |
| ALN9190 | KRAUF |
| ALT6822 | ELECTROLOG |
| UD15387A | AS-PL |
Video/Publications
