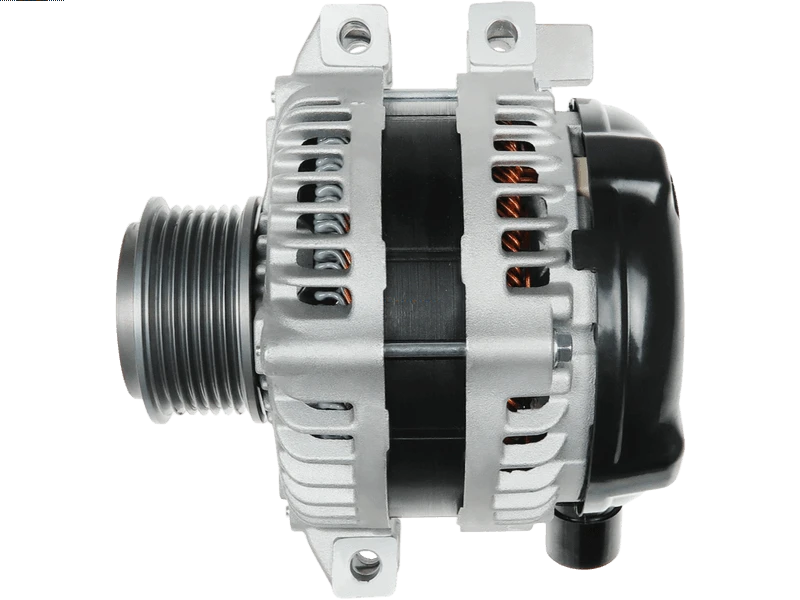

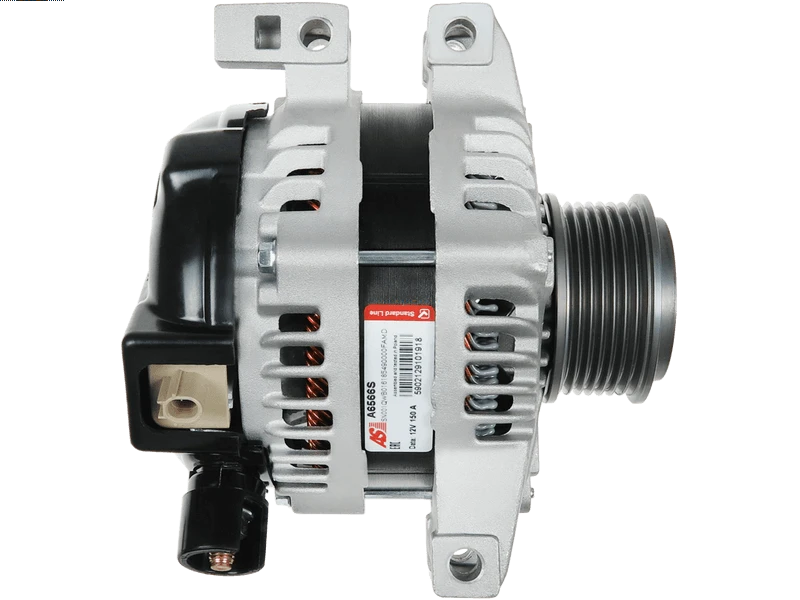

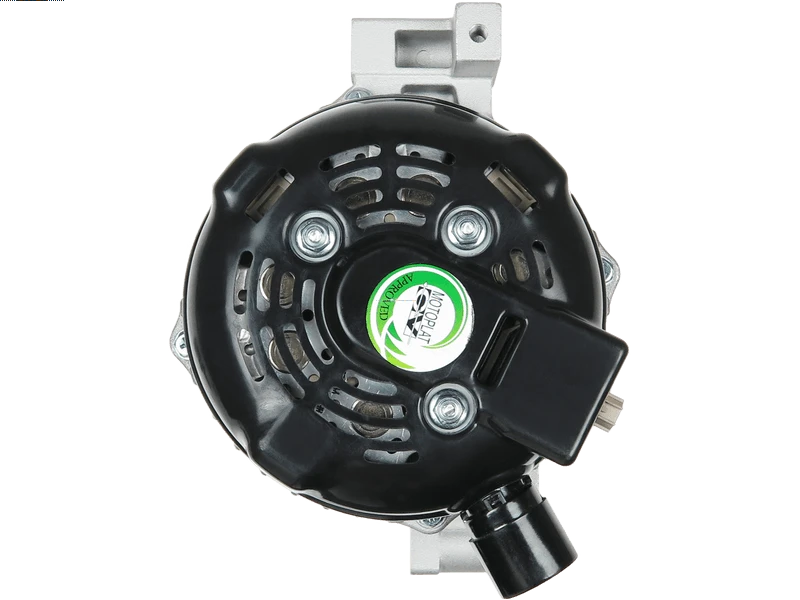

A6566S - Brand new AS-PL Alternator

Specifications

Amp	150 A
Diameter (D.1)	9.5 mm
Diameter (D.2)	9.5 mm
Diameter (D.3)	9.5 mm
Grooves	7 qty
Length (L.1)	168 mm
Mount Inside Length or Pad Mount C-C (C)	44 mm
OEM Product	No
Outside Diameter (O.D.1)	65 mm
Pad mount thickness (E.1)	46 mm
Pad mount thickness (E.2)	46 mm
Pad mount thickness (E.3)	46 mm
Plug Code	PL_1000
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	36 mm
Pulley Type	CLUTCH
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HONDA	Civic 2.2 i-DTEC	[N22B4]	02.2012-
HONDA	CR-V 2.2 i-DTEC AWD	[N22B4]	10.2012-

Reference Information

CAL40430GS 554459RI 9166 20971 EAA-241649 ALN4628 2040430 104210-1650 CAL40430ES 20971N CAL40430AS 125.570.150 A12DE0212A2 LRA4008 J5114055 CSJ65 20971-OS AEG1313 20132034 31100-R3L-G01 CAL40430OS LRA04008 ALTE777 CAL40430 554459RID UD15388A 447126 A6566S ALT30630 DAN1308 DA2328 ALT6735 28-7618 210970 CAL40430RS DRA1218

Video/Publications

104210-1650 125.570.150 20132034 2040430 20971 20971-OS 28-7618 31100-R3L-G01 554459RI 554459RID 9166 AEG1313 ALN4628 ALT30630 ALTE777 CAL40430 CAL40430AS CAL40430ES CAL40430GS CAL40430OS CAL40430RS CSJ65 DA2328 DAN1308 DRA1218 EAA-241649 J5114055 LRA04008 LRA4008 UD15388A 210970
