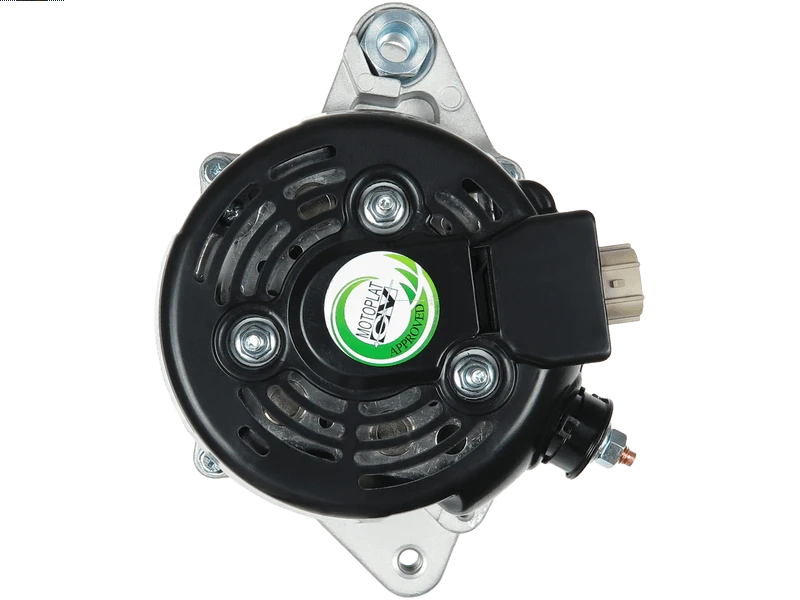

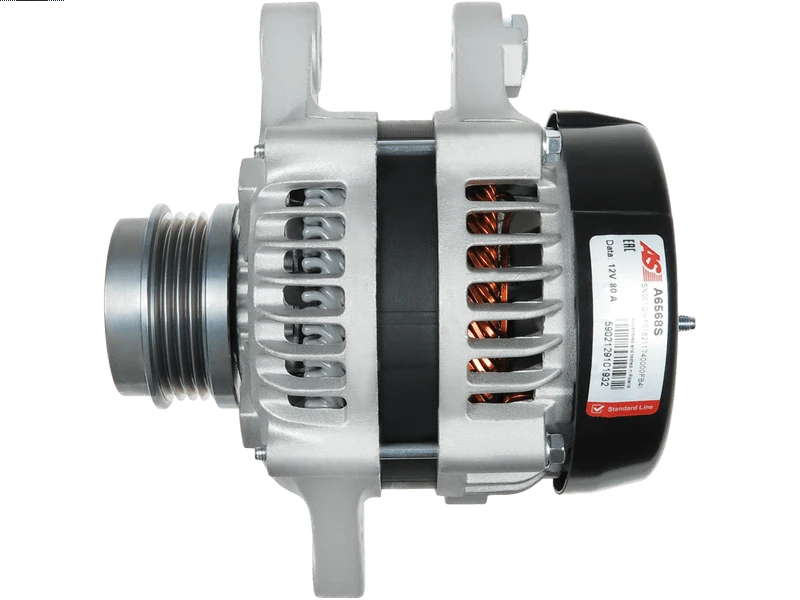

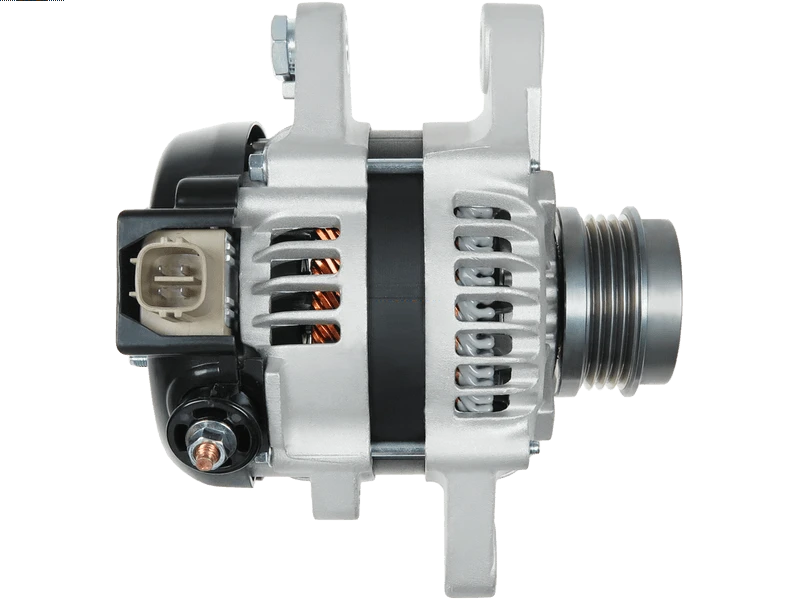

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 494.24 including GST
NZ$ 429.77 excluding GST
or four payments of $123.56
with
Learn More
each
A6568S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-9530Associated Numbers
104210-9530 104210-9531 104210-9532 27060-21180 UD15392A UNITBOM290-5789
A6568S-With Clutch Pulley
A6568S-With-Clutch-Pulley
Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 18 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 167 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41 mm |
| OEM Product | No |
| Plug Code | PL_4002 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 33.50 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Porte 1.5 | [1NZ-FE] | 07.2012- |
Reference Information
| 104210-9530 | DENSO |
| 104210-9531 | DENSO |
| 104210-9532 | DENSO |
| 27060-21180 | TOYOTA |
| UD15392A | AS-PL |
| UNITBOM290-5789 | WAI / TRANSPO |
Video/Publications
A6568SRelated Items
