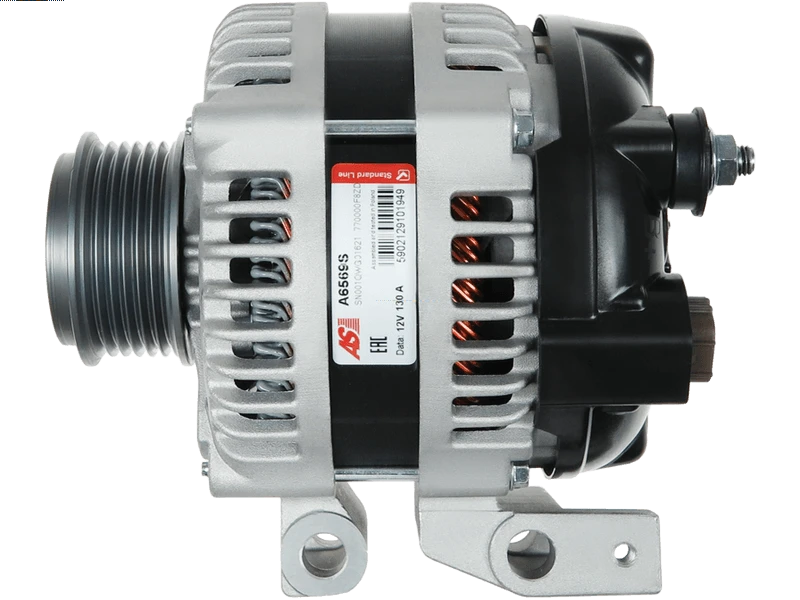

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 518.63 including GST
NZ$ 450.98 excluding GST
or four payments of $129.66
with
Learn More
each
A6569S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
104210-1070Associated Numbers
104210-1070 28-7934 31400-59L00 31400-59L01 90-29-5773 A-80600 AEG1482 ALN2273 DA2473 DRA1363 J5118036 LRA04325 UD15393ASpecifications
| Amp | 130 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | 12 mm |
| Length (L.1) | 183.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 75 mm |
| Pad mount thickness (E.2) | 75 mm |
| Plug Code | PL_4001 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 30.50 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Kizashi 2.4 | [J24B] | 01.2010-12.2014 |
Reference Information
| 104210-1070 | DENSO |
| 28-7934 | ELSTOCK |
| 31400-59L00 | SUZUKI |
| 31400-59L01 | SUZUKI |
| 90-29-5773 | WILSON |
| A-80600 | DIXIE |
| AEG1482 | AUTOELECTRO |
| ALN2273 | KRAUF |
| DA2473 | DELCO |
| DRA1363 | DELCO |
| J5118036 | HERTH+BUSS |
| LRA04325 | LUCAS |
| LRA4325 | LUCAS |
| UD15393A | AS-PL |
Video/Publications
A6569SRelated Items
