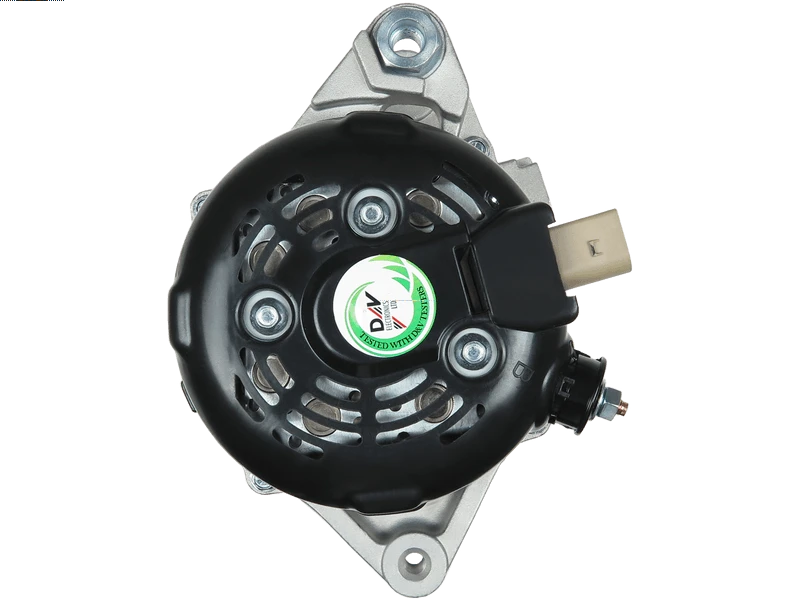

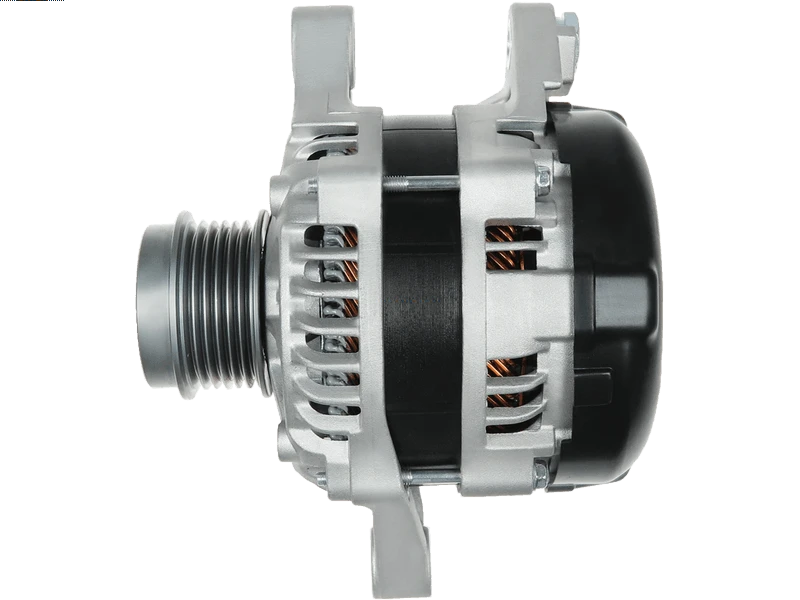

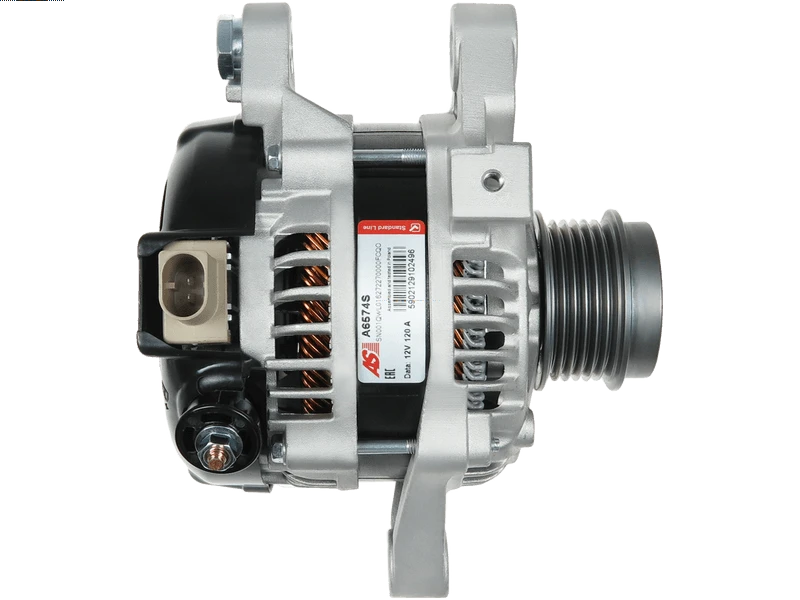

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 611.00 including GST
NZ$ 531.30 excluding GST
or four payments of $152.75
with
Learn More
each
A6574S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
104211-3301 104211-3303 11186 2614390 2614680 27060-0T230 27060-0T240 90-29-5840 A-80673 ALV1205 FG12T050 UD15398ASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 163.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Corolla 1.8 | [2ZRFE] | 01.2014-12.2018 |
Reference Information
| 104211-3301 | DENSO |
| 104211-3303 | DENSO |
| 11186 | DELCO |
| 2614390 | VALEO |
| 2614680 | VALEO |
| 27060-0T230 | TOYOTA |
| 27060-0T240 | TOYOTA |
| 90-29-5840 | WILSON |
| A-80673 | DIXIE |
| ALV1205 | KRAUF |
| FG12T050 | VALEO |
| UD15398A | AS-PL |
Video/Publications
