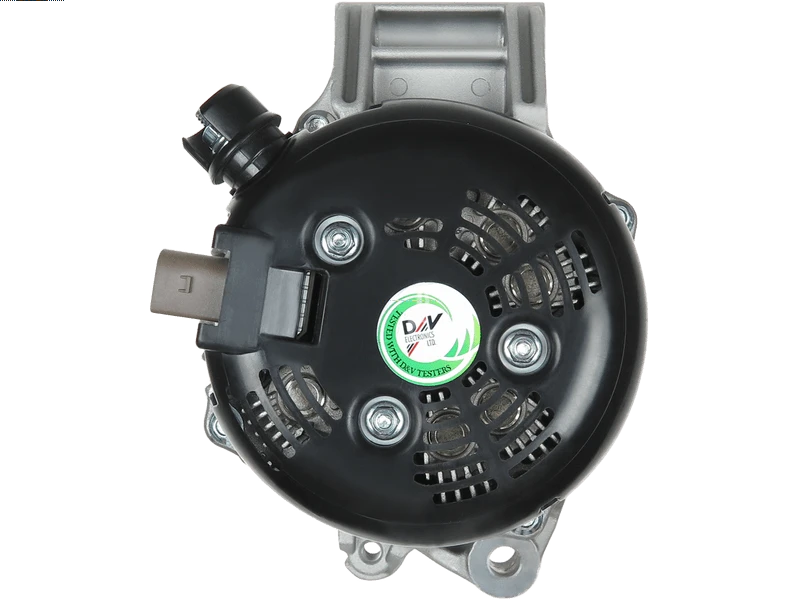

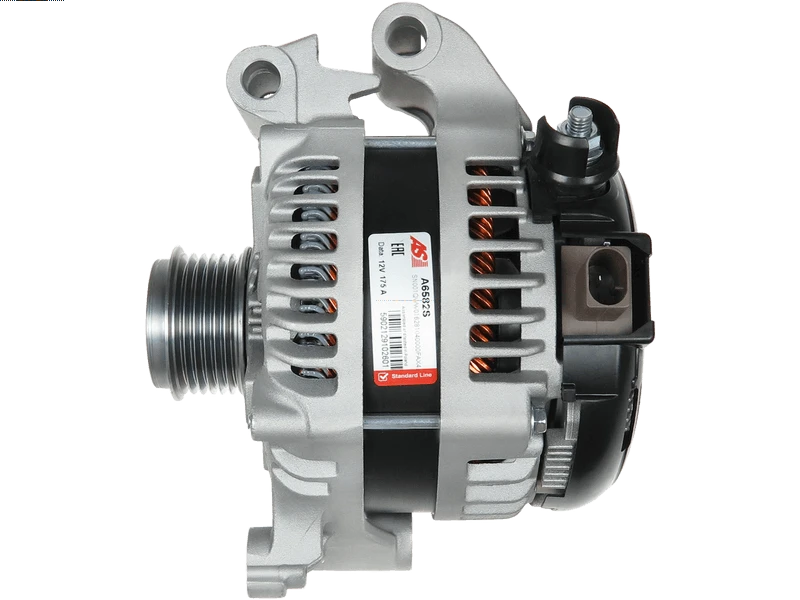

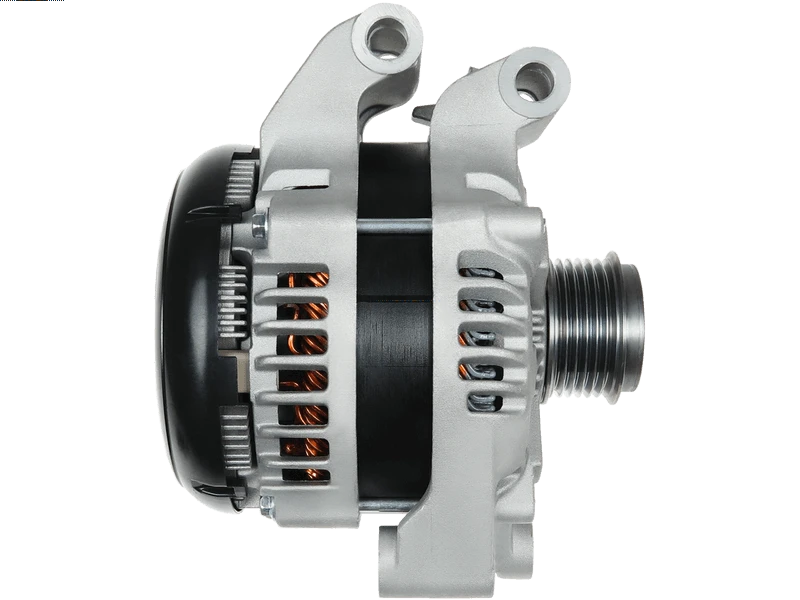

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 851.06 including GST
NZ$ 740.05 excluding GST
or four payments of $212.77
with
Learn More
each
A6582S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
104210-6540 104210-6541 12884N 23026 90-29-5849 A-80589 ALN9540 CJ5T-10300-DB CJ5T-10300-GA CJ5T10300DB CJ5T10300GA CJ5Z-10346-A CJ5Z-10346-F CJ5Z10346A CJ5Z10346F GL-8785 GL8785 UD15409ASpecifications
| Amp | 175 A |
| Diameter (D.1) | 13 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 14 mm |
| Length (L.1) | 173 mm |
| Mount Inside Length or Pad Mount C-C (C) | 52.50 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 72 mm |
| Pad mount thickness (E.2) | 72 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 11 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Escape 1.5 | 01.2013-12.2016 | |
| FORD | Escape 1.6 | 01.2017-12.2018 | |
| FORD | Transit Connect 1.6 | 01.2014-12.2016 |
Reference Information
| 104210-6540 | DENSO |
| 104210-6541 | DENSO |
| 12884N | WAI / TRANSPO |
| 23026 | DELCO |
| 90-29-5849 | WILSON |
| A-80589 | DIXIE |
| ALN9540 | KRAUF |
| CJ5T10300DB | FORD |
| CJ5T-10300-DB | FORD |
| CJ5T10300GA | FORD |
| CJ5T-10300-GA | FORD |
| CJ5Z10346A | FORD |
| CJ5Z-10346-A | FORD |
| CJ5Z10346F | FORD |
| CJ5Z-10346-F | FORD |
| GL8785 | FORD |
| GL-8785 | FORD |
| UD15409A | AS-PL |
