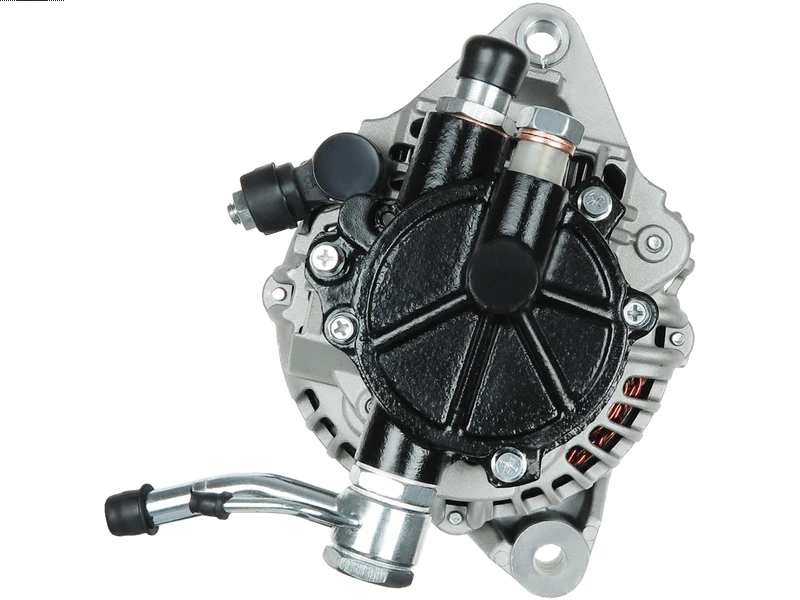

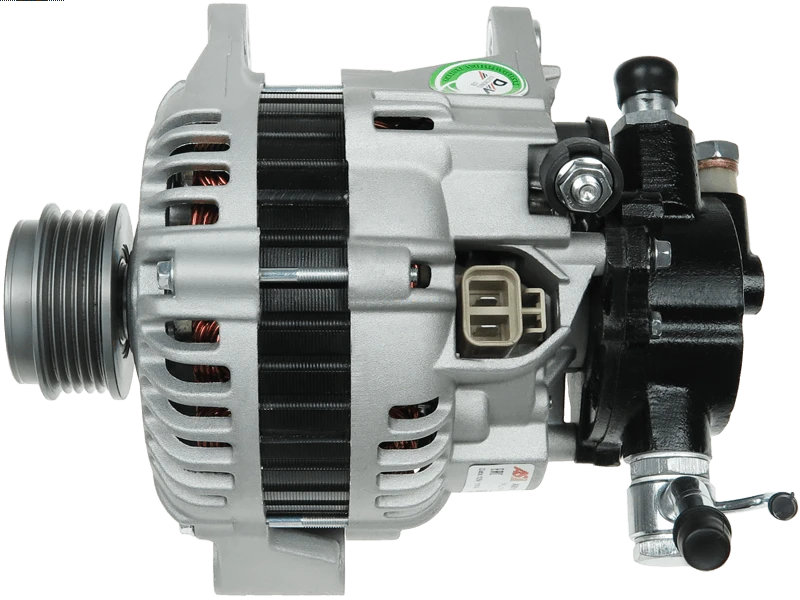

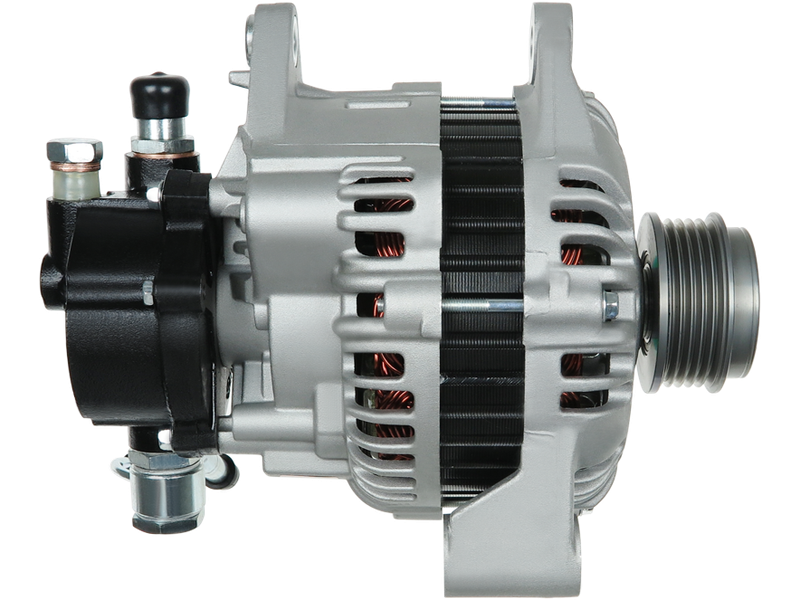

A9018 - Brand new AS-PL Alternator

Specifications

Amp	110 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	10.5 mm
Diameter (D.2)	11.5 mm
Diameter (D.3)	10.5 mm
Grooves	5 qty
Length (L.1)	244 mm
Mount Inside Length or Pad Mount C-C (C)	81 mm
OEM Product	No
Outside Diameter (O.D.1)	60 mm
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley to Mount Distance (A)	47.5 mm
Pulley Type	CLUTCH
Unit Type	HYUNDAI / KIA
Vacuum Pump	Yes
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	TeRacan 2.9 CRDi	[J3]	12.2001-
KIA	Carnival 2.9 CRDi	[J3]	10.2001-
KIA	Carnival 2.9 HPDi		10.2001-

Reference Information

401709RI 9090395 A12HY0127A2 ALTL122 37300-4A112 LRA02231 2032114 255.602.110.000 A9018 EAA-221254 255.602.110.365 0986049500 1334 446758 255.602.110.369 210387 600024 20193411RE AEB1709 RNL1709JA TA000A56901 AF111225 ALT35028 CAL32114AS DRA4203N ALT01007 DRA4203 002-M952 20193411BN 8EL738073-001 AX 986049500 37300-4X501 113331 20193411OE 255.602.110.415 37300-4X502 AF111390 TA000A61201 37300-4X503 RNL1709JAINA SA999 401709RIV 2M952 37300-4X500 23203N JA1709IR ALT2027 ALT2028 2032114.4 2032114.1 56994 210369 600005 600049 CAL32114OS 37300-4X000 89212444 37300-4X001 9413 28-4706 ALM952 LRA2231 ALT01101 CGB-11390 ANM36423X 11.1709 PRAL122 373004A112 CAL32114GS ALT341140 37300-4X002 37300-4X003 STA0404R
