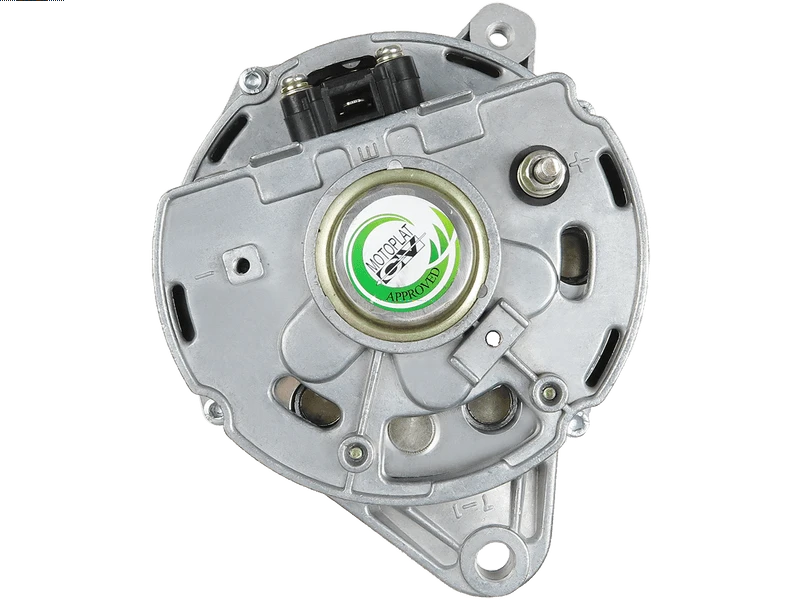

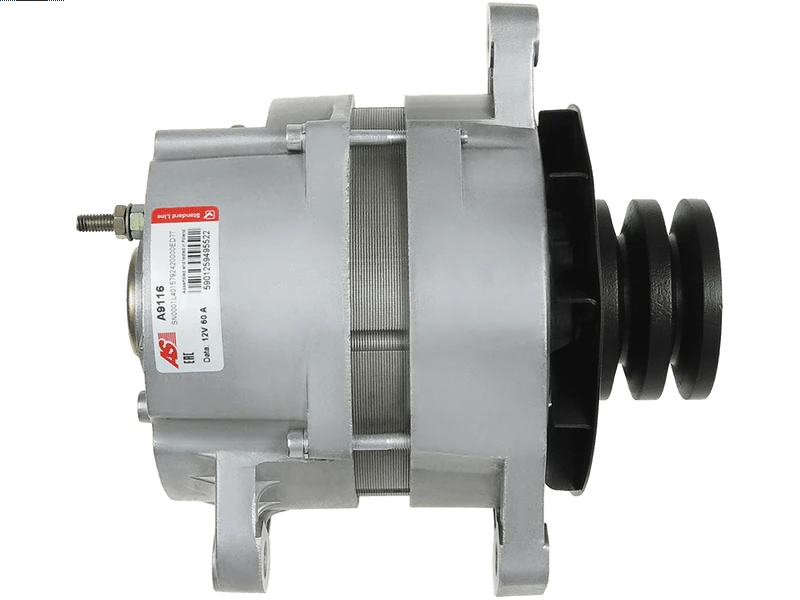

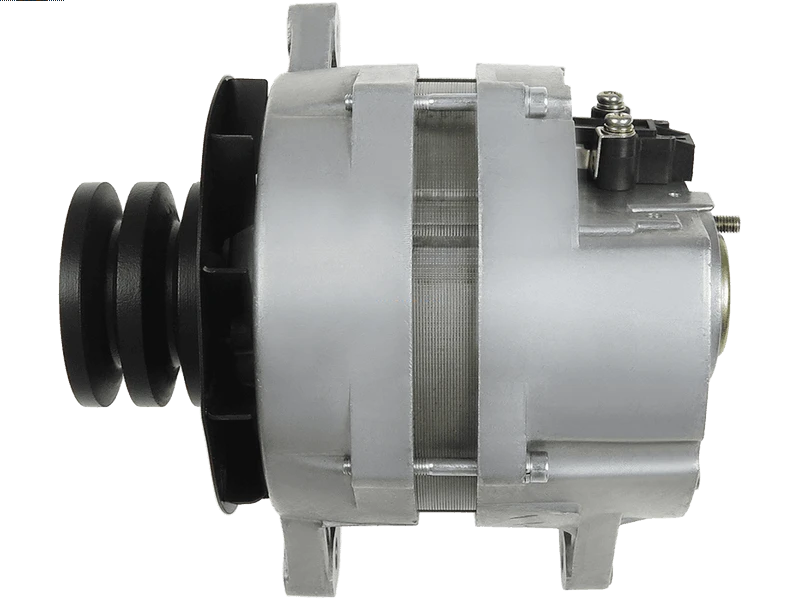

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
GAZ
Price:
NZ$ 237.90 including GST
NZ$ 206.87 excluding GST
or four payments of $59.48
with
Learn More
each
A9116
No stock in NZ currently
No stock in NZ currently
Associated Numbers
321.3701 A9116 ALR7011 UD10950ASpecifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 15.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 204 mm |
| Mount Inside Length or Pad Mount C-C (C) | 72 mm |
| OEM Product | No |
| Plug Code | PL_9102 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 9 mm |
| Pulley Outside Diameter (O.D.1) | 43.50 mm |
| Pulley Outside Diameter (O.D.2) | 68.50 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | Solid |
| Unit Type | GAZ |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GAZ | Engine | [ZMZ-402] |
Reference Information
| 321.3701 | GAZ |
| A9116 | AS-PL |
| ALR7011 | KRAUF |
| UD10950A | AS-PL |
Video/Publications
