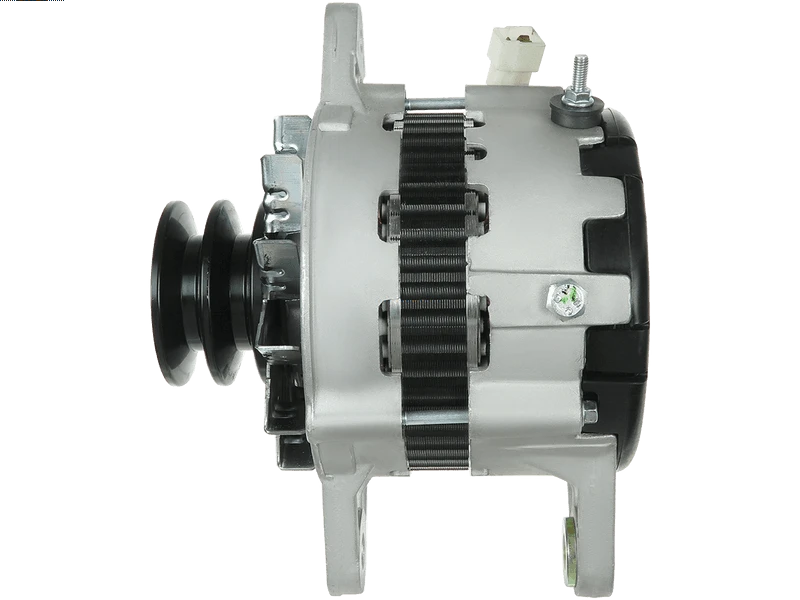

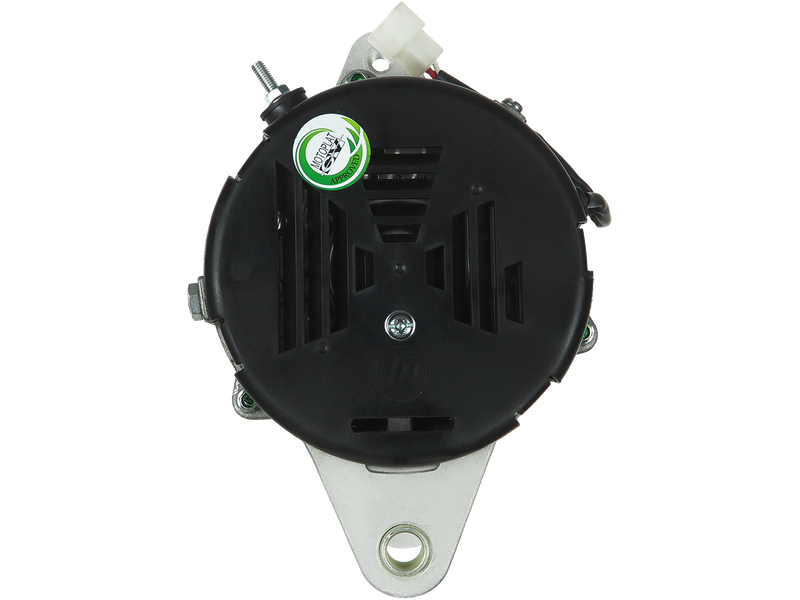

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 726.42 including GST
NZ$ 631.67 excluding GST
or four payments of $181.61
with
Learn More
each
A9138
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0201-102-1113 0201-102-11132 0201-102-1210 0201-102-1310 27040-1113 27040-1390 27040-1400 27040-1410 ALW7400 UD30021ASpecifications
| Amp | 50 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | M10x1.25 mm |
| Diameter (D.2) | 13.50 mm |
| Diameter (D.3) | 13.50 mm |
| Length (L.1) | 201 mm |
| Mount Inside Length or Pad Mount C-C (C) | 84.50 mm |
| OEM Product | No |
| Plug Code | PL_3600 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 15 mm |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley Outside Diameter (O.D.2) | 80 mm |
| Pulley to Mount Distance (A) | 51 mm |
| Pulley Type | Solid |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | FD | ||
| HINO | FE | ||
| HINO | FL |
Reference Information
| 0201-102-1113 | HINO |
| 0201-102-11132 | HINO |
| 0201-102-1210 | HINO |
| 0201-102-1310 | HINO |
| 27040-1113 | SAWAFUJI |
| 27040-1390 | SAWAFUJI |
| 27040-1400 | SAWAFUJI |
| 27040-1410 | SAWAFUJI |
| ALW7400 | KRAUF |
| UD30021A | AS-PL |
