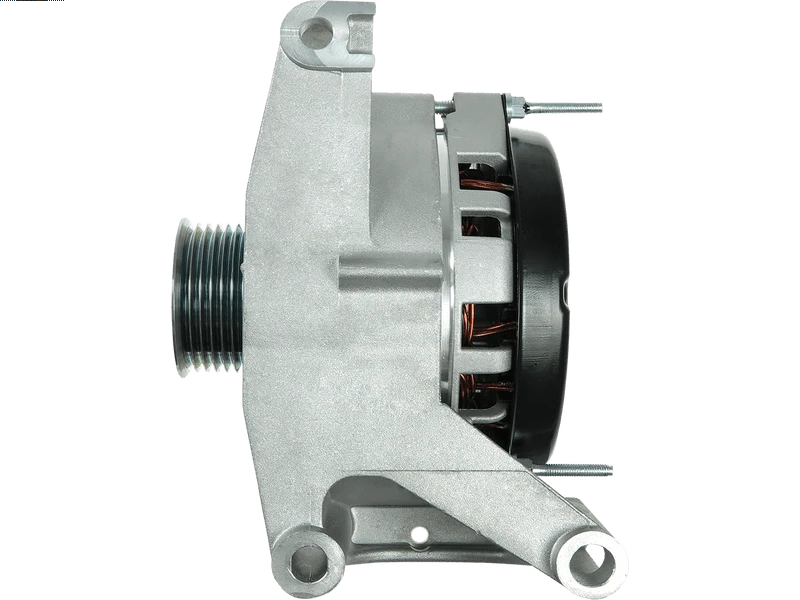

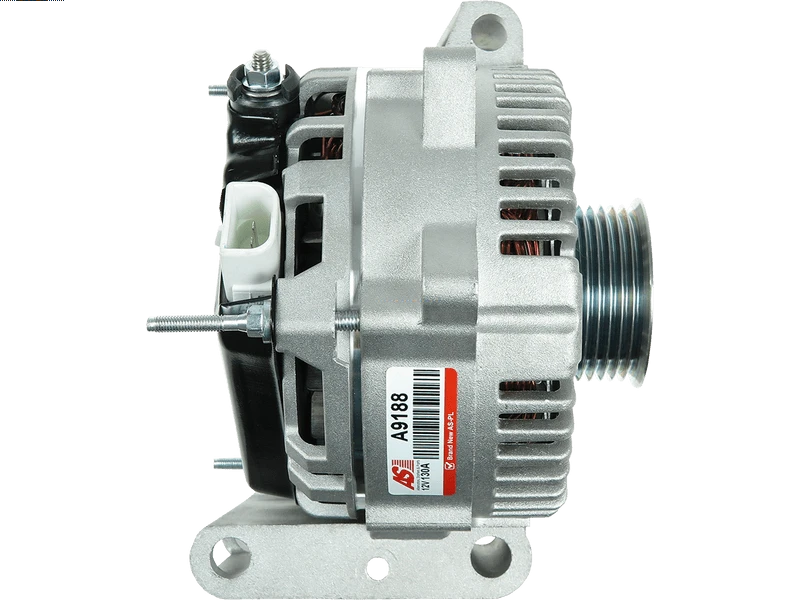

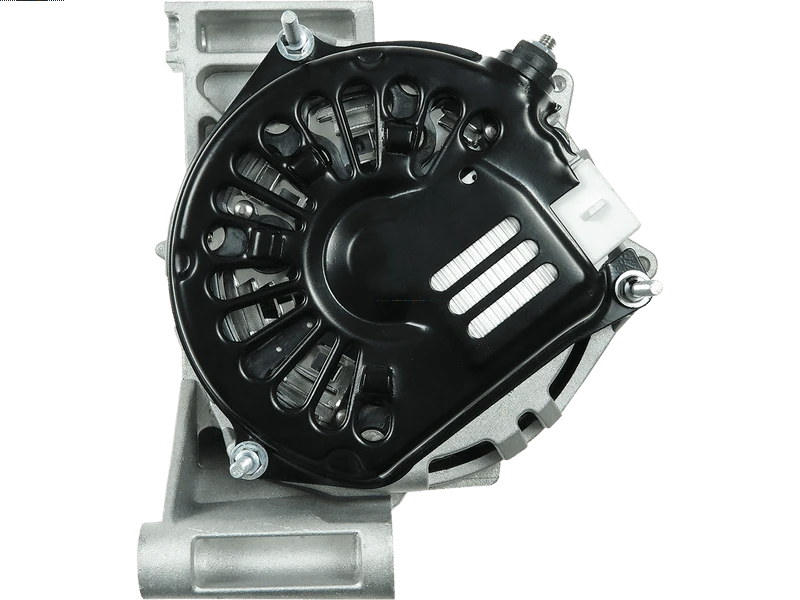

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 385.26 including GST
NZ$ 335.01 excluding GST
or four payments of $96.32
with
Learn More
each
A9188
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
20130192 23770 4U2Z-10V346-ADRM 554825RI 5L8T-10300-KC 5L8T-10300-KD 5L8T-KC 5L8T-KD 5L8Z-10346-KA 6L8T-10300-AB 6L8T-10300-KA 6L8T-AB 6L8T-KA 6L8Z-10346-AB 6L8Z-10346-ABRM2 6L8Z-10346-ACRM 6L8Z-10346-BDRM 6L8Z-10346-KA 6L8Z-10V346-ACRM 8403N 8403R 885.562.130 90-02-5147 90-02-5147N 92542 A-2086 A9188 AJC8-18-300B ALF3403 ALT42490 RM4U2J-10D309-JC RM6L8T-10300-AE UD12658A ZZC2-18-300 ZZC3-18-300R0BSpecifications
| Amp | 130 A |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | 13.50 mm |
| Length (L.1) | 148 mm |
| Mount Inside Length or Pad Mount C-C (C) | 86 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 75.50 mm |
| Pad mount thickness (E.2) | 75.50 mm |
| Plug Code | PL_3102 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 28 mm |
| Pulley Type | Solid |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Escape 3.0 V6 | 01.2005-12.2007 | |
| MAZDA | Tribute 3.0 V6 AWD | [AJ] | 03.2000-05.2008 |
| MERCURY | Mariner 3.0 V6 | 01.2005-12.2007 |
Reference Information
| 20130192 | PRESTOLITE |
| 2014128.0 | SANDO |
| 20150821BN | REAL |
| 23770 | DELCO |
| 27-7576 | ELSTOCK |
| 4U2Z-10V346-ADRM | FORD |
| 554825RI | KUHNER |
| 5F9T-10300-AC | FORD |
| 5L8T-10300-KC | FORD |
| 5L8T-10300-KD | FORD |
| 5L8T-KC | FORD |
| 5L8T-KD | FORD |
| 5L8Z-10346-KA | FORD |
| 6L8T-10300-AB | FORD |
| 6L8T-10300-KA | FORD |
| 6L8T-AB | FORD |
| 6L8T-KA | FORD |
| 6L8Z-10346-AB | FORD |
| 6L8Z-10346-ABRM2 | FORD |
| 6L8Z-10346-ACRM | FORD |
| 6L8Z-10346-BDRM | FORD |
| 6L8Z-10346-KA | FORD |
| 6L8Z-10V346-ACRM | FORD |
| 8403N | WAI / TRANSPO |
| 8403R | WAI / TRANSPO |
| 885.562.130 | PSH |
| 90-02-5147 | WILSON |
| 90-02-5147N | WILSON |
| 92542 | DELCO |
| A-2086 | DIXIE |
| A9188 | AS-PL |
| AJC8-18-300B | MAZDA |
| ALF3403 | KRAUF |
| ALT161280A | SIOM |
| ALT42490 | WOODAUTO |
| CAL14128AS | CASCO |
| RM4U2J-10D309-JC | FORD |
| RM6L8T-10300-AE | FORD |
| UD12658A | AS-PL |
| ZZC2-18-300 | MAZDA |
| ZZC3-18-300R0B | MAZDA |
Video/Publications
A9188Related Items
View your shopping basket or Browse other items in Alternators.
