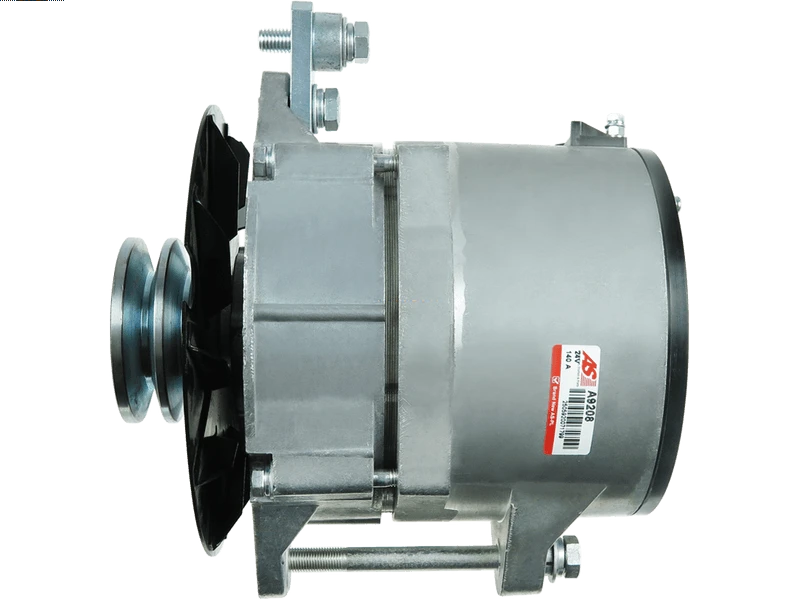

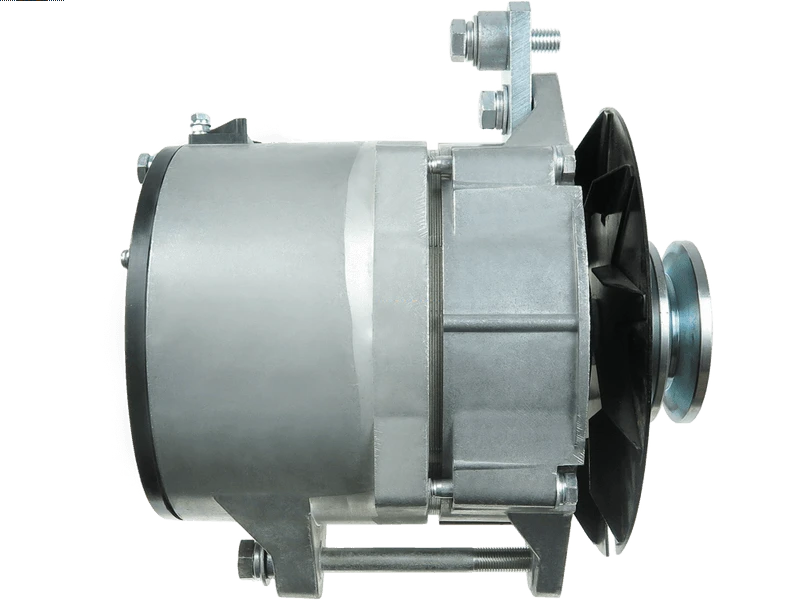

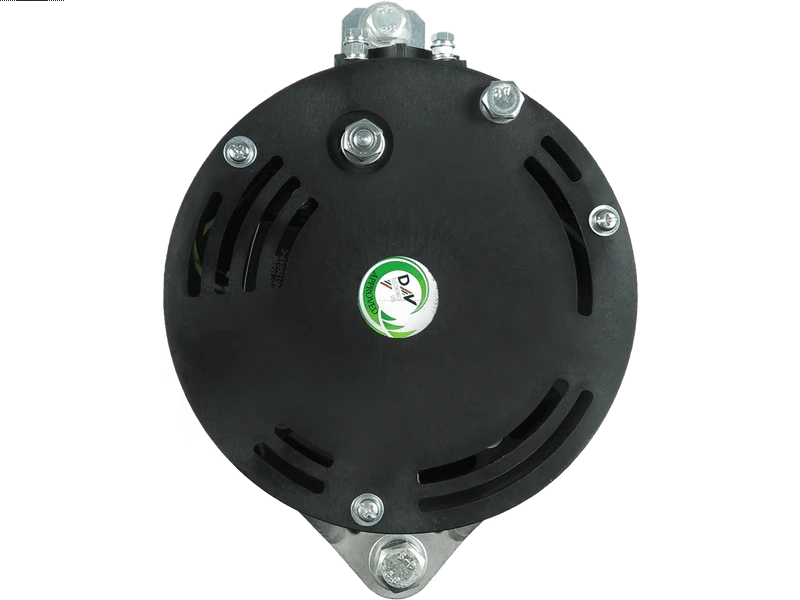

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 1,233.26 including GST
NZ$ 1,072.40 excluding GST
or four payments of $308.32
with
Learn More
each
A9208
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
235.3771 UD10974ASpecifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 7/16" UNC 14 mm |
| Diameter (D.2) | 7/16" UNF 20 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 250 mm |
| Mount Inside Length or Pad Mount C-C (C) | 98 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 13 mm |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley Outside Diameter (O.D.2) | 87 mm |
| Pulley to Mount Distance (A) | 46.50 mm |
| Pulley Type | Solid |
| Unit Type | UNIVERSAL |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LIAZ | 5256.25 | [3116] | |
| LIAZ | 5256.26 | [3116] | |
| LIAZ | 6212 | [3126E] |
Reference Information
| 1A00075 | RUSSIA |
| 23513771155 | RUSSIA |
| 235.3771 | RUSSIA |
| ALR2351 | KRAUF |
| UD10974A | AS-PL |
Video/Publications
