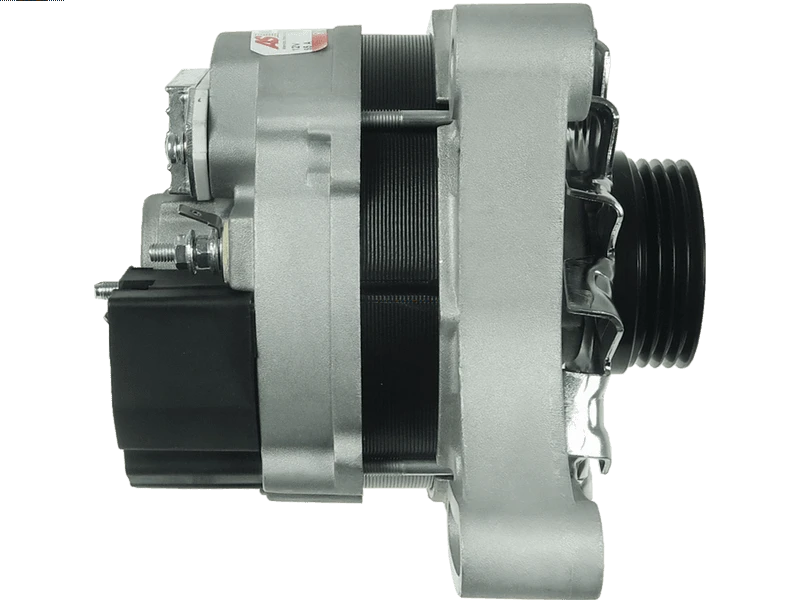

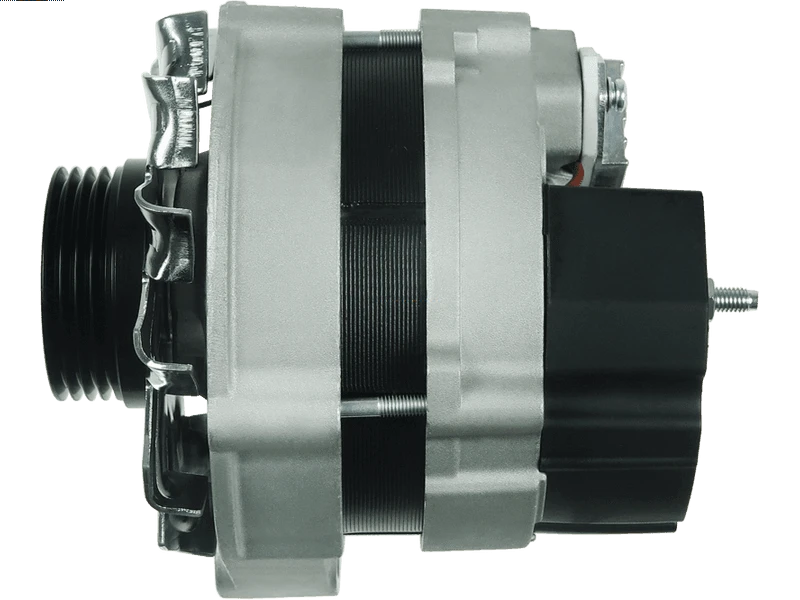

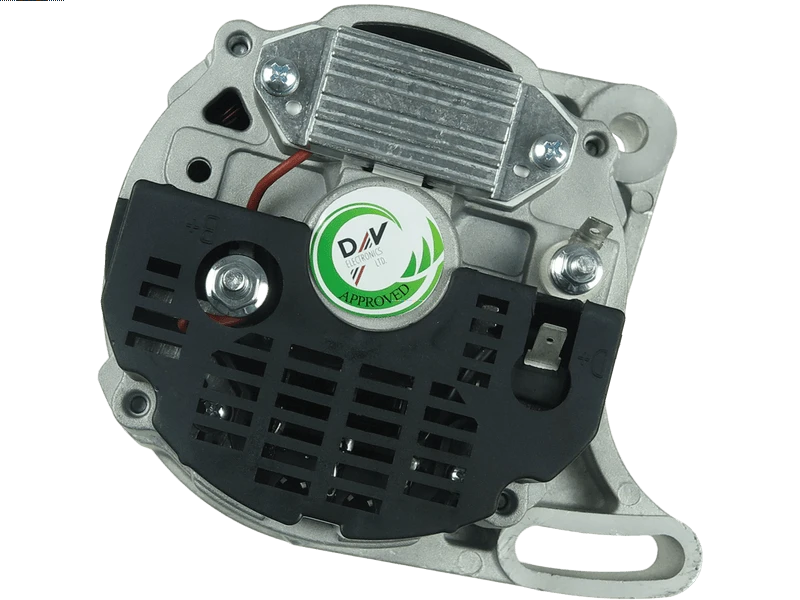

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 267.62 including GST
NZ$ 232.71 excluding GST
or four payments of $66.91
with
Learn More
each
A4018
A9239
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.201.695Associated Numbers
0986038621 11.201.695 113471 20110148 20110326 2030117 210219 21525N 2456 28-2673 30851RI 30851RIM 30890RI 30890RIM 32201695 436481 437551 4506 46231658 505.017.065 6.3079.9 63320040 63320140 63321082 63321173 63321488 7713141 89212782 943321082 944390386210 AAK4556 AEA3226 AG0208 ALE0851 ALT12037 CAL30117 CAL30117AS CAL30117ES CAL30117GS CAL30117OS CAL30117RS DA4528 DAN575 DAN619 DENDAN619 DRA3418 EAA-221155 IA0695 LRB00326 LRB326 MAHMG360 MG360 MRA38621 UD13062ASpecifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 31.50 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11.50 mm |
| Length (L.1) | 169 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 58 mm |
| Pulley to Mount Distance (A) | 55 mm |
| Pulley Type | Solid |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUTOBIANCHI | Y10 1.1 | [156C.000] | 06.1989-10.1995 |
| AUTOBIANCHI | Y10 1.1 4WD | [156C.000] | 06.1989-10.1995 |
| AUTOBIANCHI | Y10 1.1 i.e. Cat | [156C.046] | 09.1990-10.1995 |
| FIAT | Cinquecento 0.9 i.e. S | [1170A1.000] | 07.1991-07.1999 |
| FIAT | Cinquecento 0.9 i.e. S | [1170A1.046] | 07.1991-07.1999 |
| FIAT | Cinquecento 1.1 Sporting | [176B2.000] | 10.1994-01.1998 |
| FIAT | Palio 1.2 | [178B7.045] | 07.1997-08.2002 |
| FIAT | Palio 1.2 | [178C4.066] | 07.1997-08.2002 |
| FIAT | Palio 1.2 | [188A4.000] | 07.1997-08.2002 |
| FIAT | Panda 1000 4x4 | [141C2.000] | 05.1986-12.1994 |
| FIAT | Panda 1000 4x4 | [156A2.246] | 05.1986-12.1994 |
| FIAT | Panda 1000 i.e. Cat | [141C2.000] | 10.1987-08.1998 |
| FIAT | Panda 1000 i.e. Cat | [156A2.246] | 10.1987-08.1998 |
| FIAT | Panda 1100 | [176B2.000] | 02.1995-09.2003 |
| FIAT | Panda 1100 | [187A1.000] | 02.1995-09.2003 |
| FIAT | Panda 1100 4x4 | [176B2.000] | 02.1995-07.2004 |
| FIAT | Panda Van 1000 i.e | [156A2.246] | 08.1992-02.2004 |
| FIAT | Punto 1.2 16V | [176B9.000] | 04.1997-09.1999 |
| FIAT | Punto 1.4 GT Turbo | [176B6.000] | 09.1996-07.1999 |
| FIAT | Punto 85 16V 1.2 | [176B9.000] | 04.1997-06.2000 |
| FIAT | Seicento 1.1 | [176B2.000] | 01.1998-01.2010 |
| FIAT | Seicento 1.1 | [187A1.000] | 01.1998-01.2010 |
| FIAT | Siena 1.2 | [178B5.000] | 09.1998-12.2009 |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998-12.2009 |
| FIAT | Strada 1.2 | [178B5.000] | 06.1999-12.2006 |
| FIAT | Uno 45 1.0 | [156A2.048] | 06.1986-12.1993 |
| FIAT | Uno 45 1.0 | [156A2.100] | 06.1986-12.1993 |
| FIAT | Uno 45 1.0 | 06.1986-12.1993 | |
| FIAT | Uno 45 i.e. 1.0 | [156A2.246] | 04.1984-10.1995 |
| FIAT | Uno 60 1.1 | [160A3.000] | 04.1989-12.1992 |
| LANCIA | Kappa 2.4 T.DS | [838A3.000] | 07.1996-10.2001 |
| LANCIA | Kappa 2.4 T.DS | [838A7.000] | 07.1996-10.2001 |
| LANCIA | Y10 1.1 Fire | [176B2.000] | 01.1995-12.1995 |
| LANCIA | Y10 1.1 Fire All-wheel Drive | [176B2.000] | 01.1995-12.1995 |
| LANCIA | Y10 1.1 i.e Fire | [156C.000] | 08.1989-06.1992 |
| LANCIA | Y10 1.1 i.e. Fire | [156C.046] | 07.1989-09.1995 |
| LANCIA | Y10 1.1 i.e. Fire All-wheel Drive | [156C.046] | 09.1992-12.1995 |
| LANCIA | Y 1.1 | [176B2.000] | 11.1995-09.2003 |
| LANCIA | Y 1.2 | [188A4.000] | 03.1996-09.2003 |
| LANCIA | Y 1.2 | [840A3.000] | 03.1996-09.2003 |
| LANCIA | Y 1.2 16V | [176B9.000] | 04.1997-09.2003 |
Reference Information
| 0986038621 | BOSCH |
| 11.201.695 | ISKRA / LETRIKA |
| 113471 | CARGO |
| 2030117 | SANDO |
| 210219 | ERA |
| 210230 | ERA |
| 21525N | WAI / TRANSPO |
| 2456 | CEVAM |
| 28-2673 | ELSTOCK |
| 30851RI | KUHNER |
| 30851RIM | KUHNER |
| 32201695 | HERTH+BUSS |
| 437551 | VALEO |
| 4506 | CEVAM |
| 46231658 | FIAT |
| 46231659 | FIAT |
| 46528046 | FIAT |
| 493002 | DAIHATSU |
| 493990 | DAIHATSU |
| 505.017.065 | PSH |
| 6.3079.9 | IKA |
| 63320040 | MAGNETI MARELLI |
| 63320140 | MAGNETI MARELLI |
| 63321082 | MAGNETI MARELLI |
| 63321173 | MAGNETI MARELLI |
| 63321488 | MAGNETI MARELLI |
| 71721174 | FIAT |
| 71721176 | FIAT |
| 71724052 | FIAT |
| 71780108 | FIAT |
| 7636428 | FIAT |
| 7636431 | AUTOBIANCHI |
| 7636431 | FIAT |
| 7713140 | IVECO |
| 7713140 | FIAT |
| 7713141 | FIAT |
| 77347410 | FIAT |
| 89212782 | POWERMAX |
| 943321082 | MAGNETI MARELLI |
| 944390386210 | MAGNETI MARELLI |
| A12ML0015A2 | SIDAT |
| AAK4556 | ISKRA / LETRIKA |
| AEA3226 | AUTOELECTRO |
| AG0208 | GHIBAUDI |
| ALE0851 | KRAUF |
| ALT12037 | WOODAUTO |
| ALT7858 | ELECTROLOG |
| ALTL138 | 3EFFE |
| CA851IR | HC PARTS |
| CAL30117 | CASCO |
| CAL30117AS | CASCO |
| CAL30117ES | CASCO |
| CAL30117GS | CASCO |
| CAL30117OS | CASCO |
| CAL30117RS | CASCO |
| CQ1140008 | LAUBER |
| DA4528 | DELCO |
| DAN575 | DENSO |
| DAN619 | DENSO |
| DENDAN619 | WOODAUTO |
| DRA3418 | DELCO |
| F032113471 | CARGO |
| IA0695 | ISKRA / LETRIKA |
| LRB00326 | LUCAS |
| LRB326 | LUCAS |
| MAHMG360 | WOODAUTO |
| MG360 | MAHLE |
| MG 360 | MAHLE |
| MRA38621 | MAGNETI MARELLI |
| PRAL138 | 3EFFE |
| STX100089 | STARDAX |
| STX100089R | STARDAX |
| UD13062A | AS-PL |
