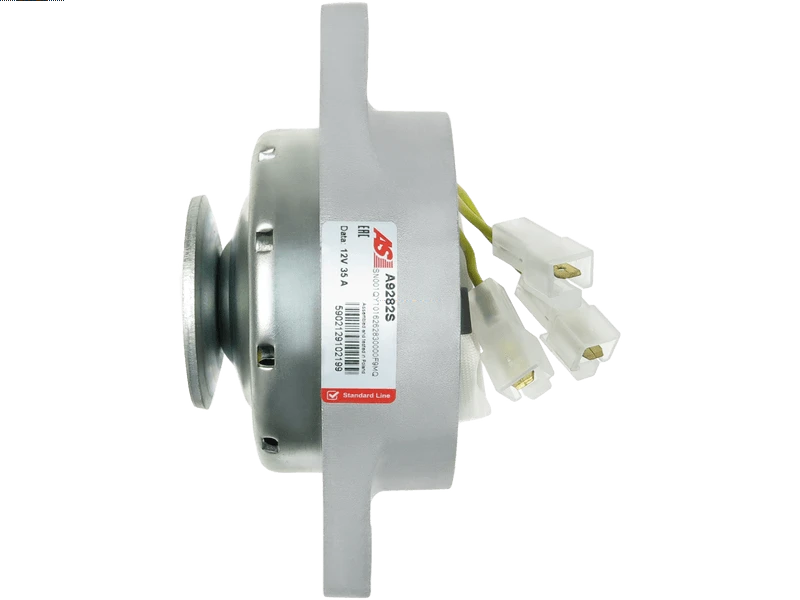

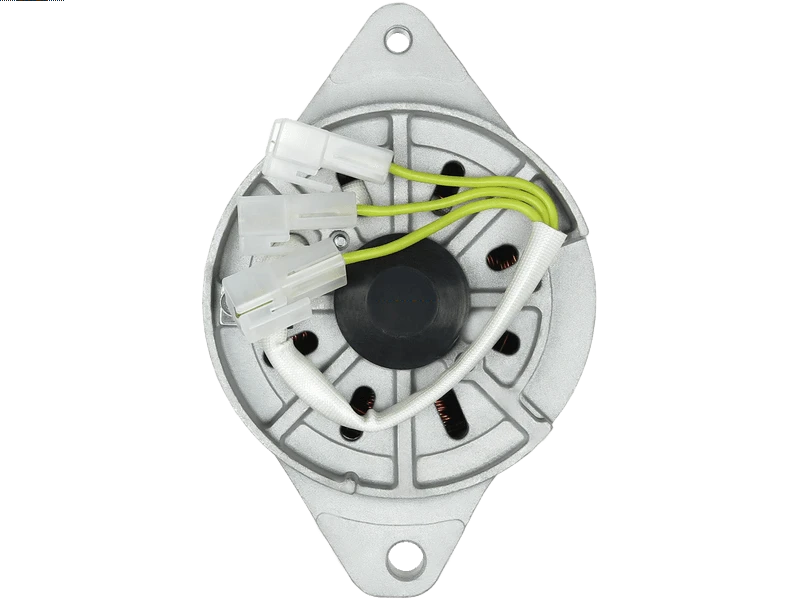

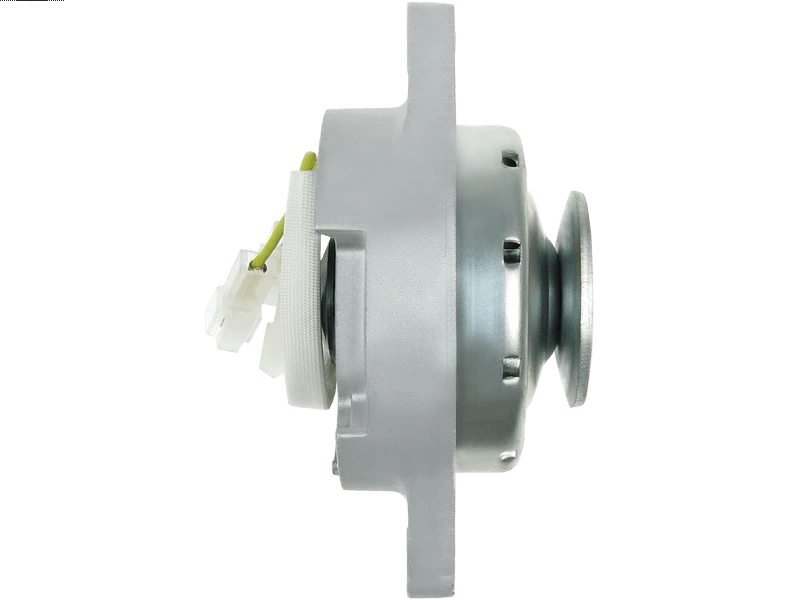

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 256.17 including GST
NZ$ 222.76 excluding GST
or four payments of $64.04
with
Learn More
each
A9282S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
10944N ALZ2261 AM877957 AM880339 UD15432ASpecifications
| Amp | 35 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Length (L.1) | 80 mm |
| OEM Product | No |
| Plug Code | PL_N/A |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 37.50 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Solid |
| Unit Type | UNIVERSAL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 1070 | [4TN84] | 01.1989-12.1996 |
| JOHN DEERE | 2305 | 01.2002- | |
| JOHN DEERE | 2320 | 01.2002- | |
| JOHN DEERE | 2520 | 01.2002- | |
| JOHN DEERE | 4010 | 01.1996- | |
| JOHN DEERE | 4100 | 01.1996- | |
| JOHN DEERE | 4110 | 01.1996- | |
| JOHN DEERE | 670 | [3TNA72] | 01.1989-12.1996 |
| JOHN DEERE | 770 | [3TN82] | 01.1989-12.1996 |
| JOHN DEERE | 790 | 01.1984-12.1987 | |
| JOHN DEERE | 870 | [3TN84] | 01.1989-12.1996 |
| JOHN DEERE | 970 | [4TN82] | 01.1989-12.1996 |
| JOHN DEERE | 990 | [4TNE84] | 01.1989-12.1996 |
Reference Information
| 10944N | WAI / TRANSPO |
| ALZ2261 | KRAUF |
| AM877957 | JOHN DEERE |
| AM880339 | JOHN DEERE |
| UD15432A | AS-PL |
