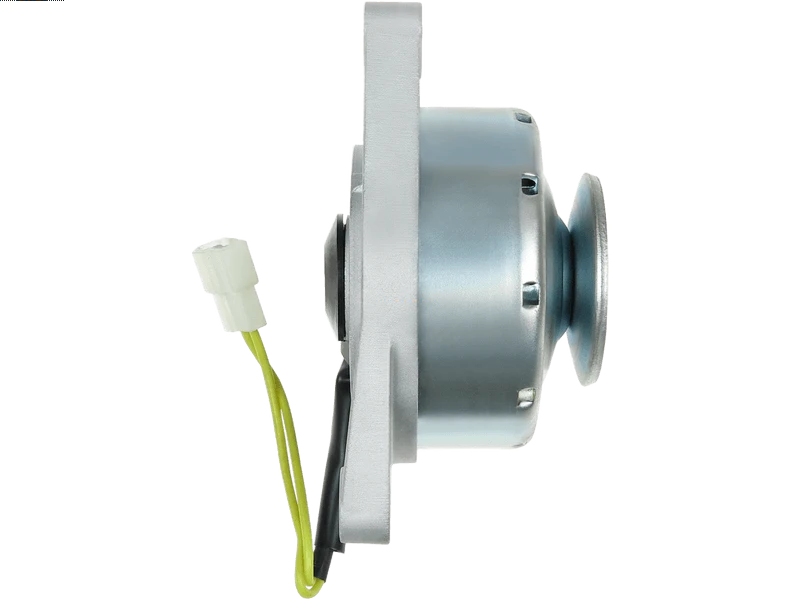

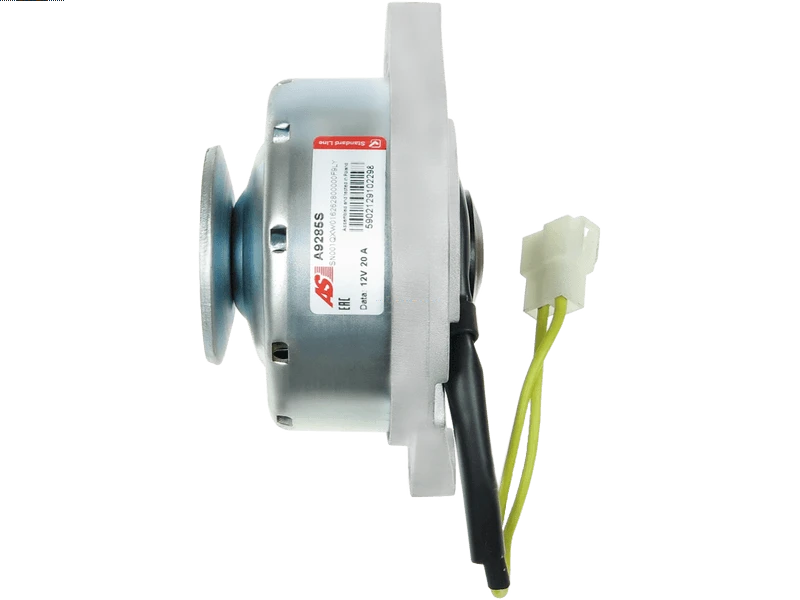

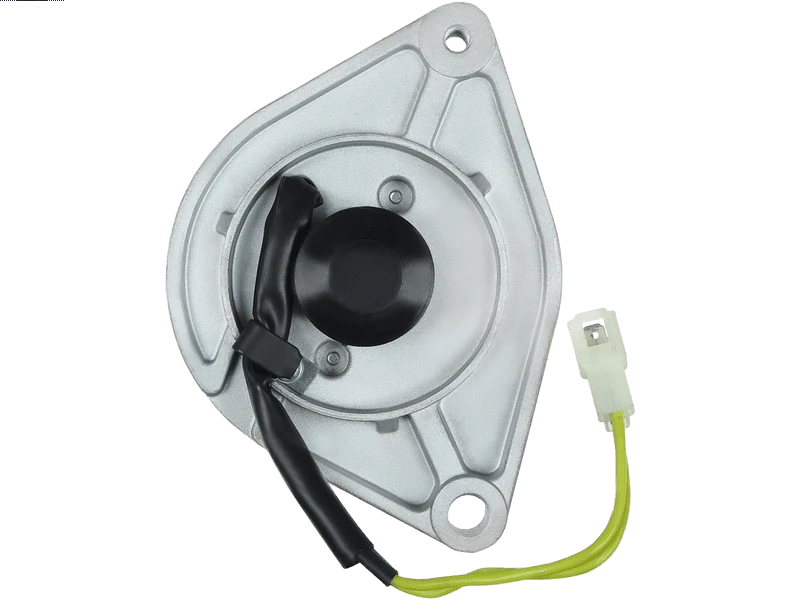

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 257.90 including GST
NZ$ 224.26 excluding GST
or four payments of $64.48
with
Learn More
each
A9285S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Associated Numbers
10940N 151-14108 185046160 300-10102 550185046160 ALT42703 ALZ2045 ALZ3045 ALZ6045 CH15587 MIA10312 UD15429ASpecifications
| Amp | 20 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Length (L.1) | 83 mm |
| OEM Product | No |
| Plug Code | PL_N/A |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 15 mm |
| Pulley Outside Diameter (O.D.1) | 37 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 67.50 mm |
| Pulley Type | Solid |
| Unit Type | UNIVERSAL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 650 | [3T90] | 01.1981-12.1989 |
| JOHN DEERE | 750 | [3T80] | 01.1981-12.1989 |
Reference Information
| 10940N | WAI / TRANSPO |
| 151-14108 | DIXIE |
| 185046160 | PERKINS |
| 300-10102 | ROBERT'S |
| 550185046160 | PERKINS |
| 5574946 | MEAT & DORIA |
| A12KU1081A2 | SIDAT |
| ALT42703 | WOODAUTO |
| ALZ2045 | KRAUF |
| ALZ3045 | KRAUF |
| ALZ6045 | KRAUF |
| CH15587 | JOHN DEERE |
| MIA10312 | JOHN DEERE |
| UD15429A | AS-PL |
Video/Publications
