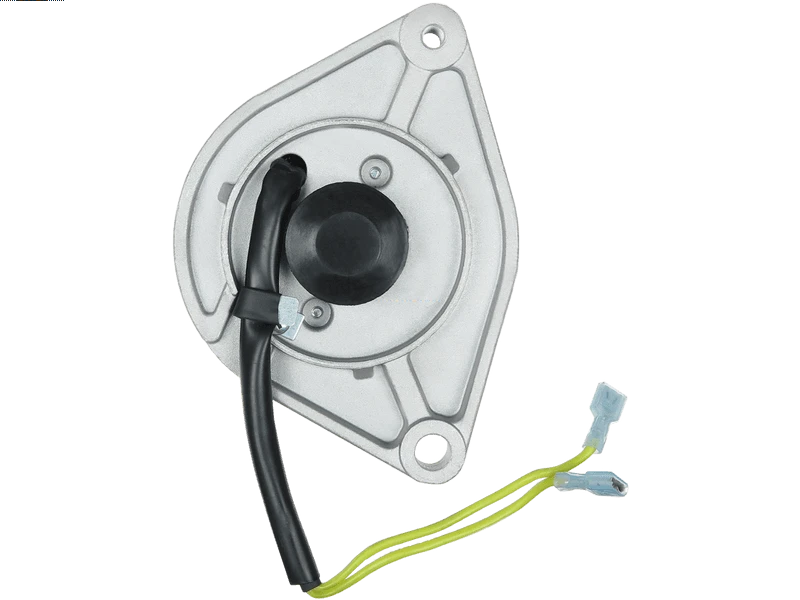

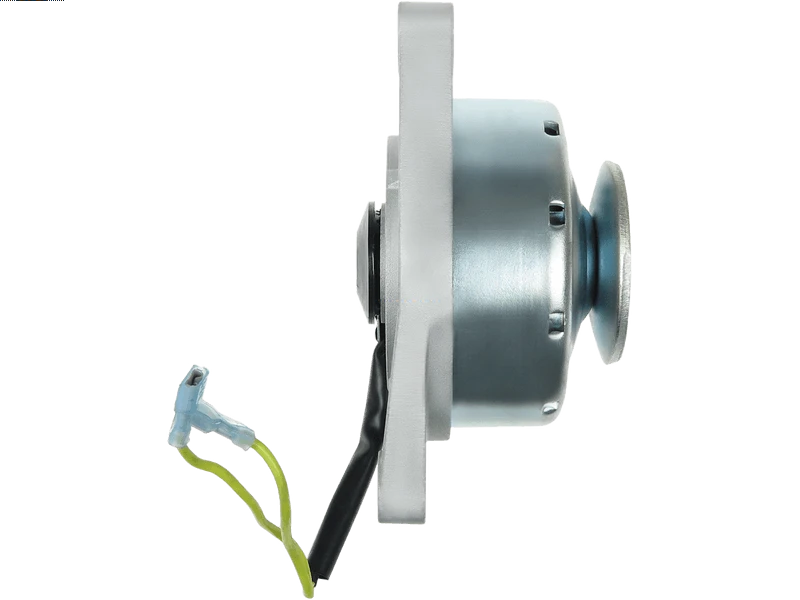

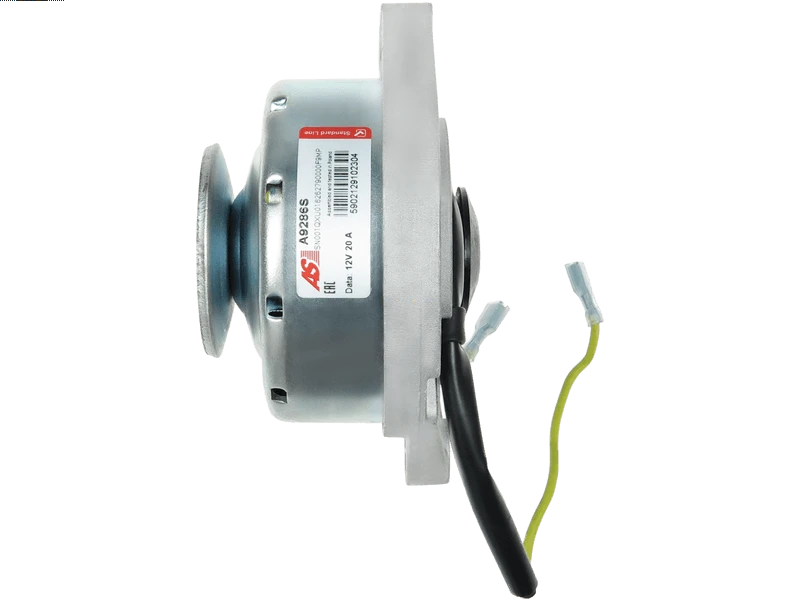

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
UNIVERSAL
Price:
NZ$ 252.29 including GST
NZ$ 219.38 excluding GST
or four payments of $63.07
with
Learn More
each
A9286S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
10940N 151-14108 185046160 300-10102 550185046160 ALT42703 ALZ2045 ALZ3045 ALZ6045 CH15587 MIA10312 UD15427ASpecifications
| Amp | 20 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | M8x1.25 mm |
| Length (L.1) | 83.50 mm |
| OEM Product | No |
| Plug Code | PL_N/A |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 14 mm |
| Pulley Outside Diameter (O.D.1) | 37 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 67 mm |
| Pulley Type | Solid |
| Unit Type | UNIVERSAL |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 650 | [3T90] | 01.1981-12.1989 |
| JOHN DEERE | 750 | [3T80] | 01.1981-12.1989 |
Reference Information
| 10940N | WAI / TRANSPO |
| 151-14108 | DIXIE |
| 185046160 | PERKINS |
| 300-10102 | ROBERT'S |
| 550185046160 | PERKINS |
| 695.519.020.200 | PSH |
| 695.519.020.440 | PSH |
| A12KU1081A2 | SIDAT |
| ALT42703 | WOODAUTO |
| ALZ2045 | KRAUF |
| ALZ3045 | KRAUF |
| ALZ6045 | KRAUF |
| CH15587 | JOHN DEERE |
| MIA10312 | JOHN DEERE |
| UD15427A | AS-PL |
