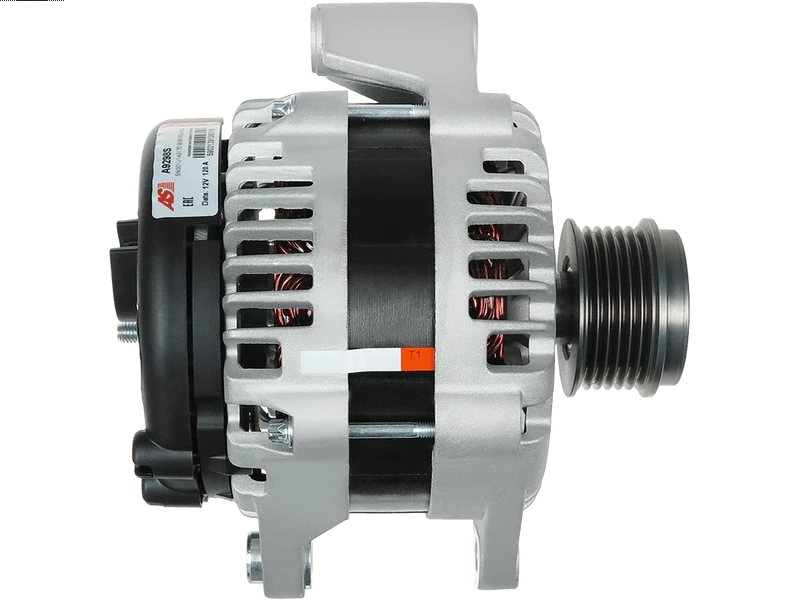

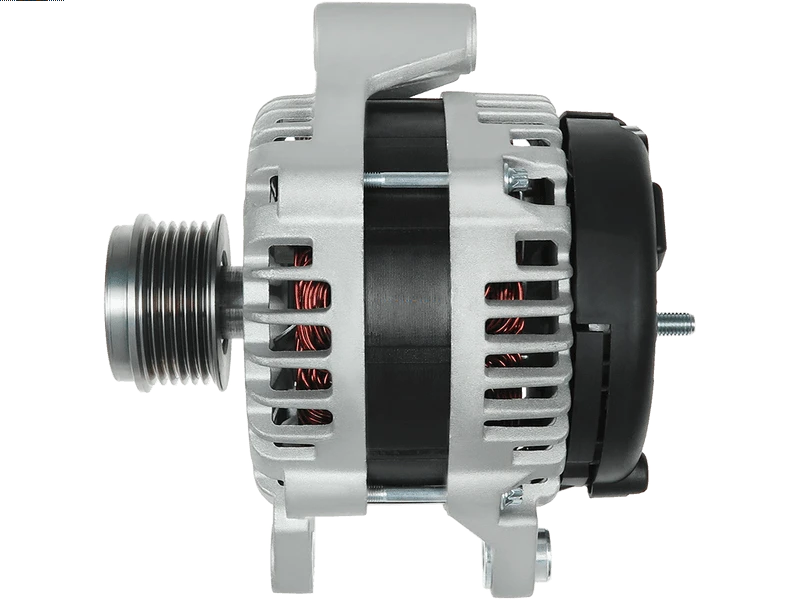

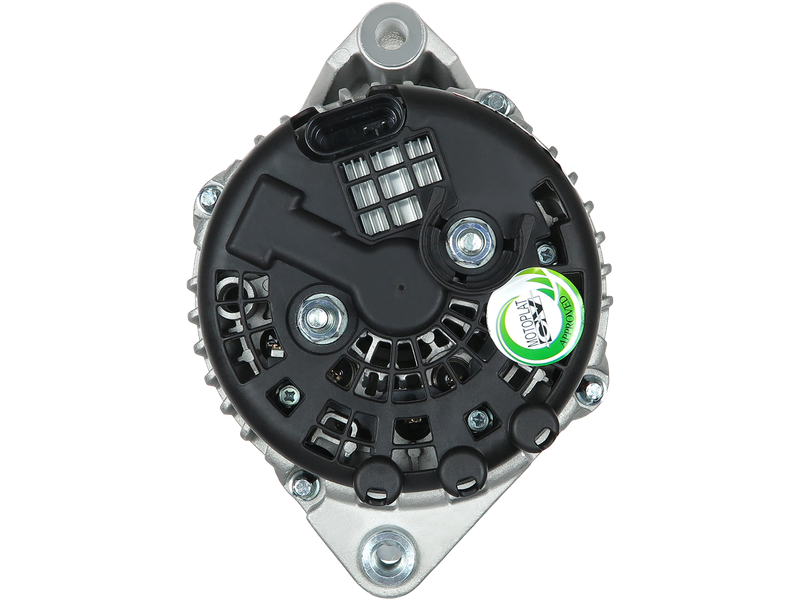

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
SSANGYONG
Price:
NZ$ 545.07 including GST
NZ$ 473.97 excluding GST
or four payments of $136.27
with
Learn More
each
A9298S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
6711540202Associated Numbers
6711540202 UD16505A 935.510.120 CAL42123GS 40291 DRA1769 DA2879 28-7823 209134 ALD7711 LRA04214 20141321OE 2042123.1 A6711540202 21011-OS 287823 Elstock Ssang Yong show 935510120 PSH Remy Lucas RNL6711540202 RNL TRA339 TWASpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56.50 mm |
| OEM Product | No |
| Plug Code | PL_4310 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | Clutch |
| Unit Type | SSANGYONG |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SSANGYONG | Actyon 2.0 Xdi | [D20DT.] | 01.2012- |
| SSANGYONG | Actyon 2.0 Xdi 4WD | [D20DT.] | 01.2012- |
| SSANGYONG | Actyon Sports 2.0 Xdi | [D20DT.] | 01.2012- |
| SSANGYONG | Actyon Sports 2.0 Xdi | [D20DTR] | 01.2011-12.2012 |
| SSANGYONG | Actyon Sports 2.0 Xdi 4WD | [D20DT.] | 01.2012- |
| SSANGYONG | Actyon Sports 2.0 Xdi 4WD | [D20DTR] | 01.2011-12.2012 |
| SSANGYONG | Actyon Sports 2.2 Xdi | [D20DT.] | 01.2015- |
| SSANGYONG | Actyon Sports 2.2 Xdi 4WD | [D20DT.] | 01.2015- |
| SSANGYONG | Korando 2.0 e-Xdi | [D20DT.] | 01.2010- |
| SSANGYONG | Korando 2.0 e-Xdi 4WD | [D20DT.] | 01.2010- |
| SSANGYONG | Korando 2.2 e-Xdi | [D20DT.] | 01.2010- |
| SSANGYONG | Korando 2.2 e-Xdi 4WD | [D20DT.] | 01.2010- |
| SSANGYONG | Korando Sports 2.0 Xdi | [D20DT.] | 01.2012- |
| SSANGYONG | Korando Sports 2.0 Xdi 4WD | [D20DT.] | 01.2012- |
| SSANGYONG | Korando Sports 2.2 Xdi | [D20DT.] | 01.2015- |
| SSANGYONG | Korando Sports 2.2 Xdi 4WD | [D20DT.] | 01.2015- |
| SSANGYONG | Rexton 2.0 Xdi | [D20DT.] | 01.2012- |
| SSANGYONG | Rexton 2.0 Xdi 4x4 | [D20DT.] | 01.2012- |
| SSANGYONG | Rexton 2.2 Xdi | [D20DT.] | 01.2015- |
| SSANGYONG | Rexton 2.2 Xdi 4x4 | [D20DT.] | 01.2015- |
Reference Information
| 20141321OE | REAL |
| 2042123.1 | SANDO |
| 209134 | ERA |
| 21011-OS | WAI / TRANSPO |
| 28-7823 | ELSTOCK |
| 40291 | CEVAM |
| 6711540202 | SSANGYONG |
| 935.510.120 | PSH |
| 935.510.120.415 | PSH |
| A6711540202 | SSANGYONG |
| A9298S | AS-PL |
| ALD7711 | KRAUF |
| ALTE825 | 3EFFE |
| CAL42123GS | CASCO |
| DA2879 | DELCO |
| DRA1769 | DELCO |
| LRA04214 | LUCAS |
| LRA4214 | LUCAS |
| UD16505A | AS-PL |
Video/Publications
A9298SRelated Items
