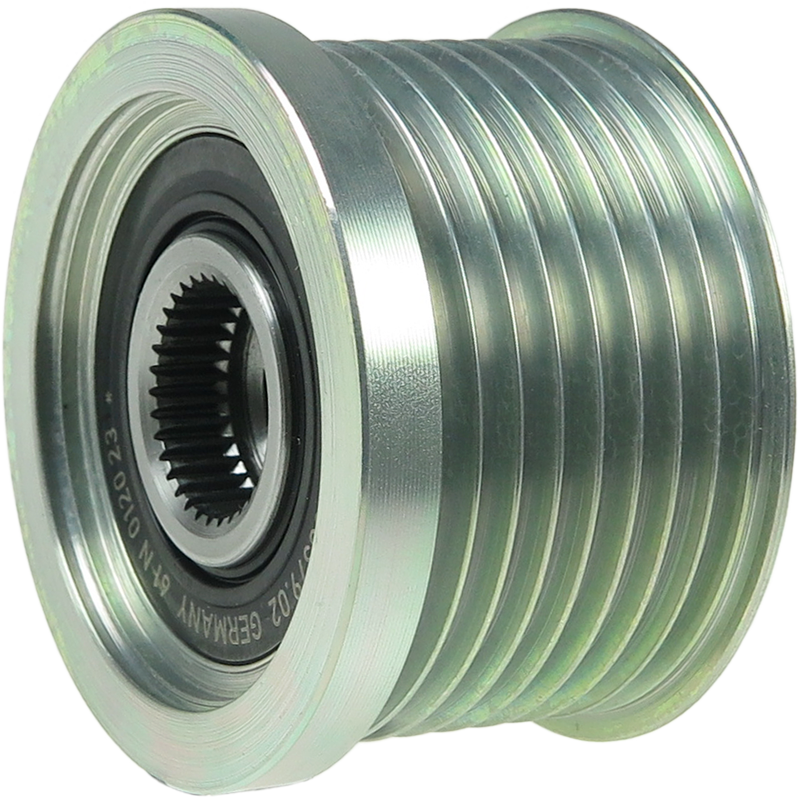

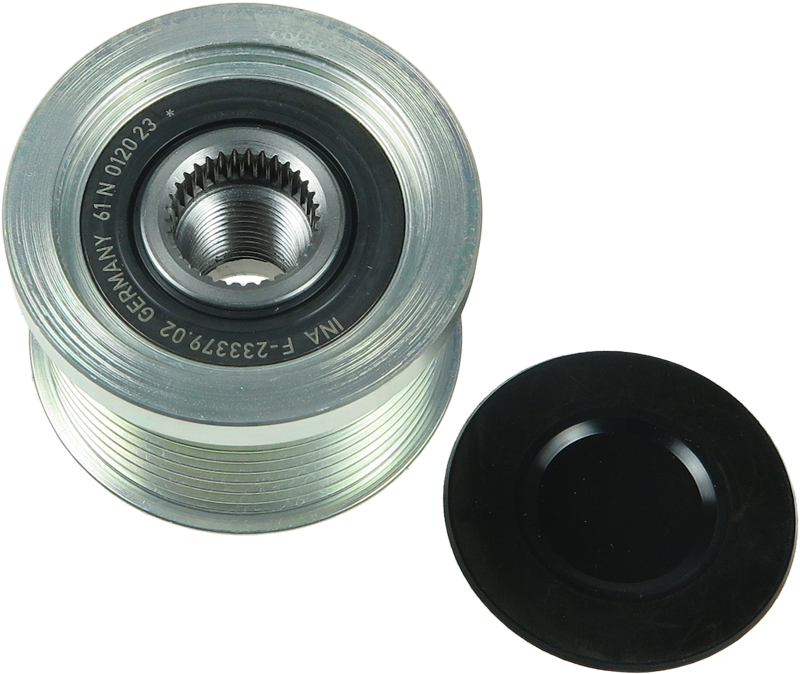

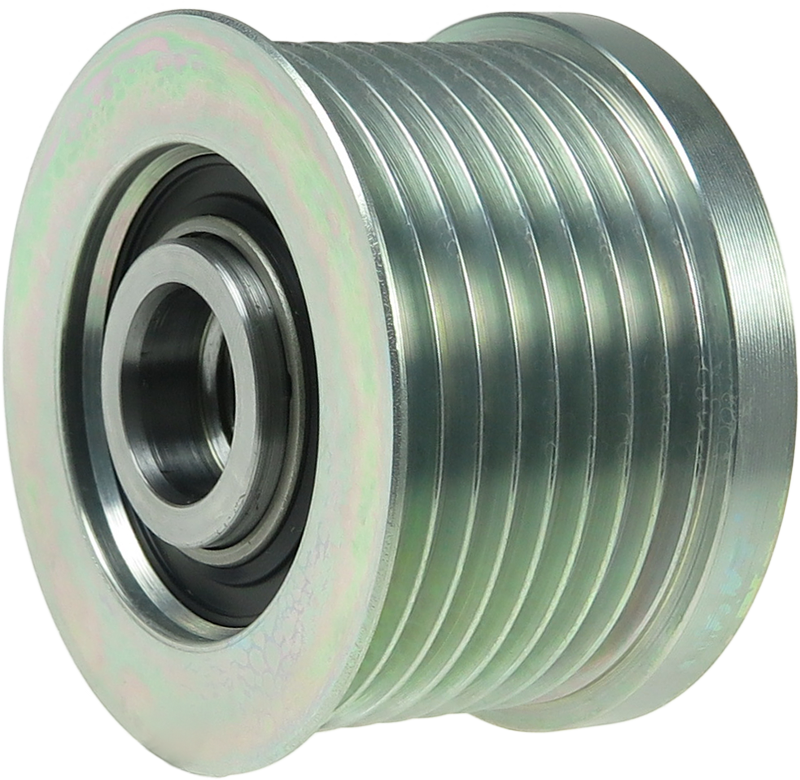

Brand new INA Alternator freewheel pulley
PREMIUM LINE
Ina
JOHN DEERE
Price:
NZ$ 89.25 including GST
NZ$ 77.61 excluding GST
or four payments of $22.31
with
Learn More
each
AFP9015(INA)
1
Associated Numbers
49-233
Specifications
Check Critical notes tab
Thread starts 7mm down
| Inside Diameter (I.D.1) | 17 mm |
| Length (L.1) | 38.80 mm |
| Length (L.2) | 3.50 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 56 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | JOHN DEERE |
Reference Information
| 051.000.116 | PSH |
| 051.000.116.209 | PSH |
| 219109 | ERA |
| 235718 | CARGO |
| 2460-8082 | DIXIE |
| 24-91308 | WAI / TRANSPO |
| 24-91308-3 | WAI / TRANSPO |
| 28706 | ZNP |
| 335014 | CARGO |
| 3.5360.1 | IKA |
| 5350131000 | INA |
| 535013110 | INA |
| 5534 | ZEN |
| 58882 | RUVILLE |
| 81113268 | POWERMAX |
| 9600022 | ZM |
| AL158161 | JOHN DEERE |
| AL161112 | JOHN DEERE |
| AL166835 | JOHN DEERE |
| AL166836 | JOHN DEERE |
| APB5718 | KRAUF |
| APB9718 | KRAUF |
| CCP90280 | CASCO |
| CQ1041350 | LAUBER |
| EC4381 | WOODAUTO |
| F032235718 | CARGO |
| F032335014 | CARGO |
| F-233379 | INA |
| F-233379.01 | INA |
| F-233379.02 | INA |
| F-233379.04 | INA |
| F-233379.1 | INA |
| INA535013110 | WOODAUTO |
| P0122 | GHIBAUDI |
| PUL1077 | ELECTROLOG |
| SCP90280 | SANDO |
| UD13379AFP | AS-PL |
| ZN5534 | ZEN |
Video/Publications
0123512500 0124625021 0124625065 0124625191 0124625192 AL111675 AL111676 AL114092 AL114093 AL166645 AL166646 AL166647 AL170947 AL171541 AL210425 AL210427 AL224083 SE501827 SE501829 SE501830< Critical Notes >
Check the depth of where the thread starts and compare.
There is variences in the pulleys where the thread starts in the bore. Revision part numbers (01 02 03 etc) can have this problem.
Check your pulley before ordering
