Associated Numbers
A004TR5691 A4TR5691 A5331

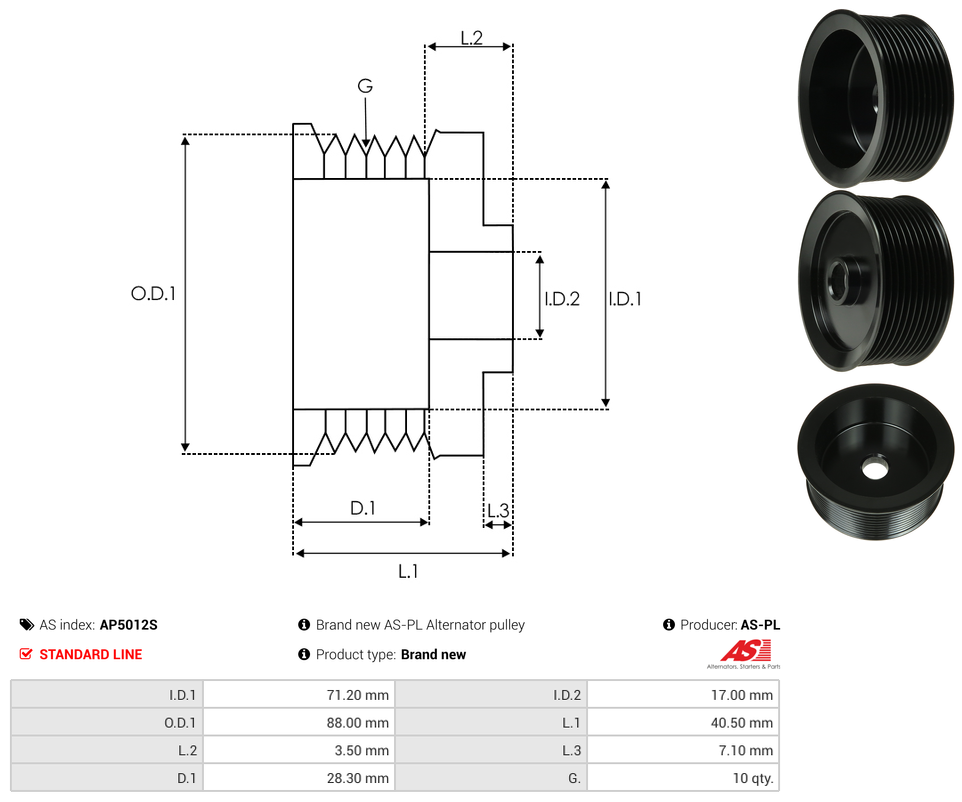

Specifications
| Depth (D.1) | 28.3 mm |
| Grooves | 10 qty |
| Inside Diameter (I.D.1) | 71.2 mm |
| Inside Diameter (I.D.2) | 17 mm |
| Length 3 (L.3) | 7.1 mm |
| Length (L.1) | 40.5 mm |
| Length (L.2) | 3.5 mm |
| Outside Diameter (O.D.1) | 88 mm |
| Unit Type | MITSUBISHI |
Reference Information
UD44627AP 2443-4212 1526143 APM3691 APM3691UX PUL5120 PUL5120iVideo/Publications
A004TR5691 A5331 UD44627AP 2443-4212 1526143 APM3691 APM3691UX A4TR5691Add Your Number
