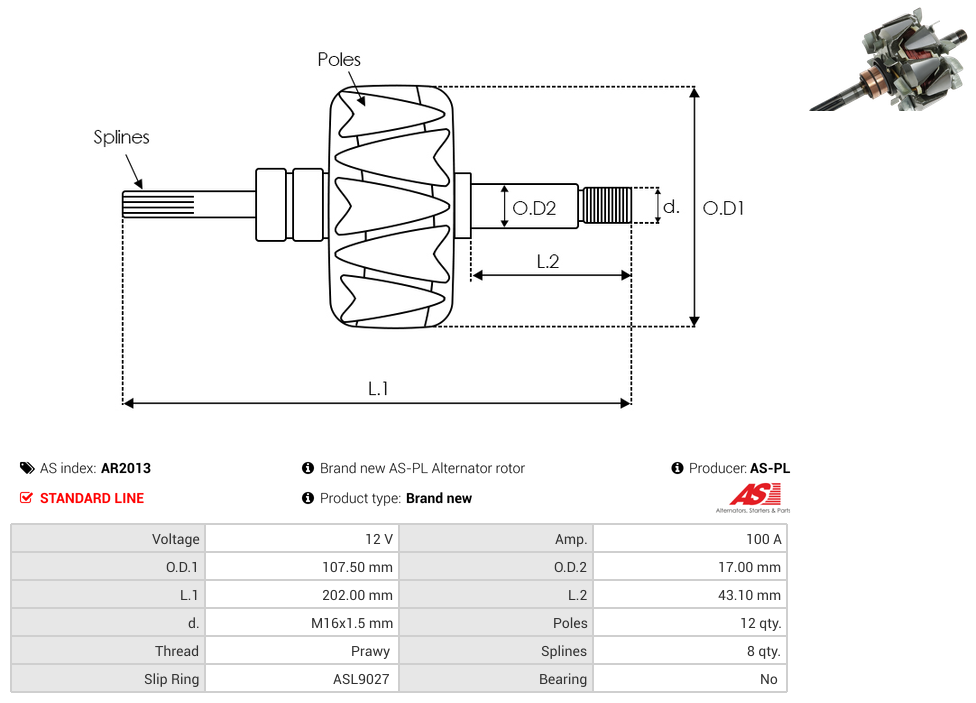

Brand new AS-PL Alternator rotor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 150.06 including GST
NZ$ 130.49 excluding GST
or four payments of $37.52
with
Learn More
each
AR2013
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
A2003 LR1100502 LR1100502E LR1100502F A2022 LR1100508 A2038 LR1100503 A2066 LR1110502 A2011 LR170509Specifications
| Amp | 100 A |
| Fitted with Bearing | No |
| Length (L.1) | 202 mm |
| Length (L.2) | 43.10 mm |
| No./Splines | 8 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 107.50 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Product Line | Standard Line |
| Product Type | Brand new |
| Slip Ring to Suit | ASL9027 |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
| 1115533 | POWERMAX |
| 233768 | CARGO |
| A/433 | ORME |
| CRO20030AS | CASCO |
| F032233768 | CARGO |
| ROT3143 | ELECTROLOG |
| SRO20030 | SANDO |
| UD01718AR | AS-PL |
| UD40094AR | AS-PL |
