Associated Numbers
1371679 1377400 1433689 571523 2541873 2541916 2542415 2542416 2809249 A14VI19 A14VI20 HD90S010 HD90S011 HD90S016ZDSpecifications

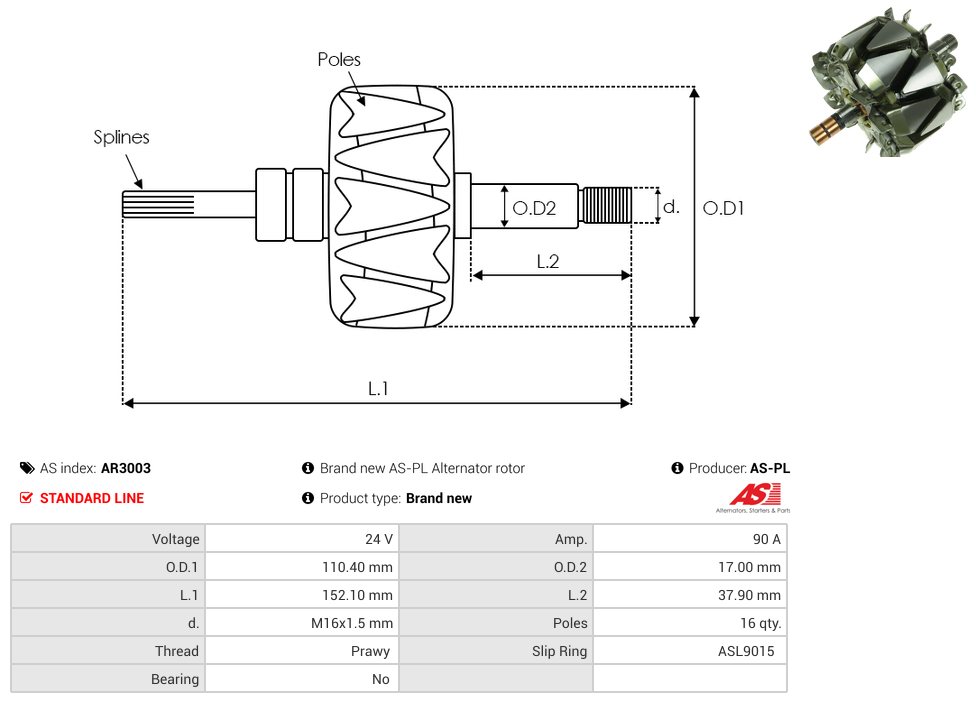

Amp | 90 A |
Fitted with Bearing | No |
Length (L.1) | 152.1 mm |
Length (L.2) | 37.9 mm |
Outside Diameter (O.D.1) | 110.4 mm |
Outside Diameter (O.D.2) | 17 mm |
Poles | 16 qty |
Slip Ring to Suit | ASL9015 |
Thread Direction | Right |
Thread size & pitch (d.) | M16x1.5 mm |
Unit Type | VALEO |
Voltage | 24 V |
Reference Information
CRO15621AS ROT0010 1115184 WRT67215 SRO15621 231873 593275 230722 A/1181Video/Publications
1433689 2541916 A14VI20 2542416 HD90S010 2541873 A14VI19 571523 1371679 1377400 2542415 593275 2809249 CRO15621AS 1115184 WRT67215 HD90S011 SRO15621 231873 HD90S016ZD 230722 A/1181Add Your Number
