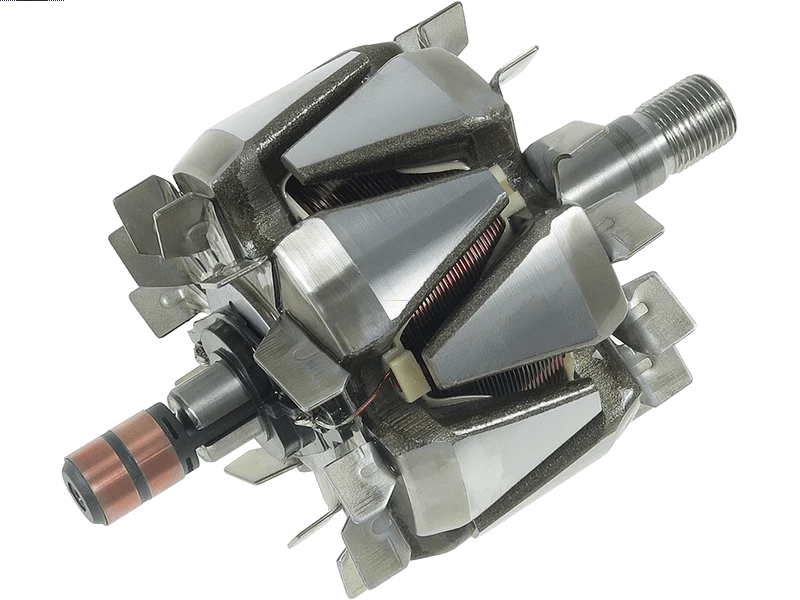

Brand new AS-PL Alternator rotor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 146.26 including GST
NZ$ 127.18 excluding GST
or four payments of $36.57
with
Learn More
each
AR6018
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
1012100990 1022118270 063321814010 063321815010 063321816010 063321940010 063377005010 63321814 63321815 63321816 63321940 63377004 63377005 A4096Specifications
| Amp | 140 A |
| Fitted with Bearing | No |
| Length (L.1) | 160.70 mm |
| Length (L.2) | 45.60 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 99.40 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Product Line | Standard Line |
| Product Type | Brand new |
| Slip Ring to Suit | ASL9014 |
| Thread Direction | Right |
| Thread size & pitch (d.) | M17x1.5 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
| 085563021010 | LUCAS |
| 1116024 | POWERMAX |
| 235172 | CARGO |
| 85563021 | MAGNETI MARELLI |
| A/1166 | ORME |
| CRO30036AS | CASCO |
| F032235172 | CARGO |
| ROT4046 | ELECTROLOG |
| SRO30036 | SANDO |
| UD01562AR | AS-PL |
| WRT68752 | WOODAUTO |
