Brand new AS-PL Alternator rotor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 135.27 including GST
NZ$ 117.63 excluding GST
or four payments of $33.82
with
Learn More
each
AR6026
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

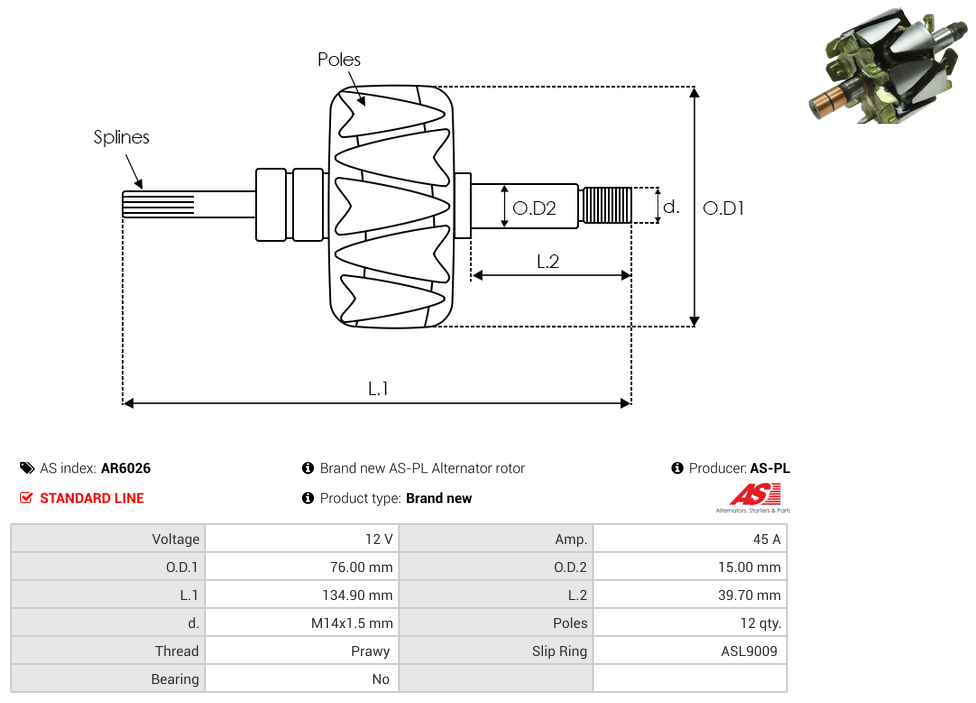

1002111400 A6188 1002111401 1002111402 1002111410 1002111411 1002111451 1002111470 1002114070 1002114180 1002116600 A3412S A13N162 A3414S A13N221Specifications
| Amp | 45 A |
| Fitted with Bearing | No |
| Length (L.1) | 134.90 mm |
| Length (L.2) | 39.70 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 76 mm |
| Outside Diameter (O.D.2) | 15 mm |
| Poles | 12 qty |
| Product Line | Standard Line |
| Product Type | Brand new |
| Slip Ring to Suit | ASL9009 |
| Thread Direction | Right |
| Thread size & pitch (d.) | M14x1.5 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
| 0212002511 | DENSO |
| 136617 | CARGO |
| F032136617 | CARGO |
| ROT6086 | ELECTROLOG |
| UD01949AR | AS-PL |
