Brand new AS-PL Alternator rotor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 126.26 including GST
NZ$ 109.79 excluding GST
or four payments of $31.57
with
Learn More
each
AR9010
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
11201727 11201875 11201881 11201963 11201989 11203015 11203016 11203098 11203166 AAK5123 AAK5165 AAK5166 AAK5186 AAK5197 AAK5315 AAK5363 A0157 0123315013Specifications

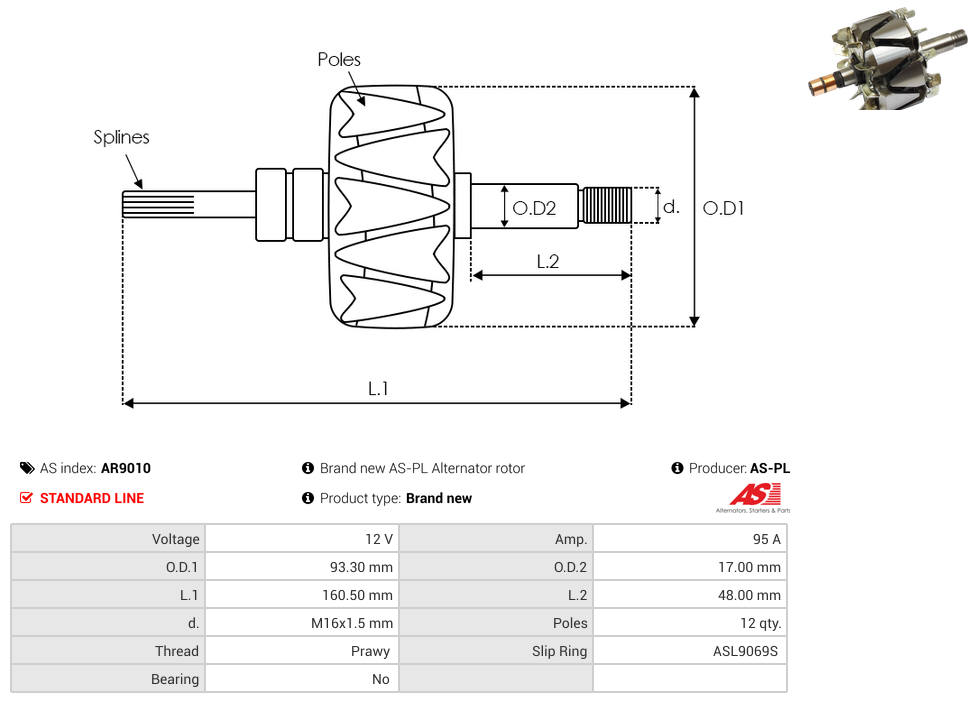

| Amp | 95 A |
| Fitted with Bearing | No |
| Length (L.1) | 160.50 mm |
| Length (L.2) | 48 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 93.30 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Product Line | Standard Line |
| Product Type | Brand new |
| Slip Ring to Suit | ASL9069S |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Reference Information
| 16.361.637 | ISKRA / LETRIKA |
| 16.362.905 | ISKRA / LETRIKA |
| 236703 | CARGO |
| F032236703 | CARGO |
| MGX873 | MAHLE |
| ROT7913 | ELECTROLOG |
| UD01794AR | AS-PL |
| UD01804AR | AS-PL |
| WRT68765 | WOODAUTO |
