Brand new AS-PL Alternator rotor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 115.47 including GST
NZ$ 100.41 excluding GST
or four payments of $28.87
with
Learn More
each
AR9021S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

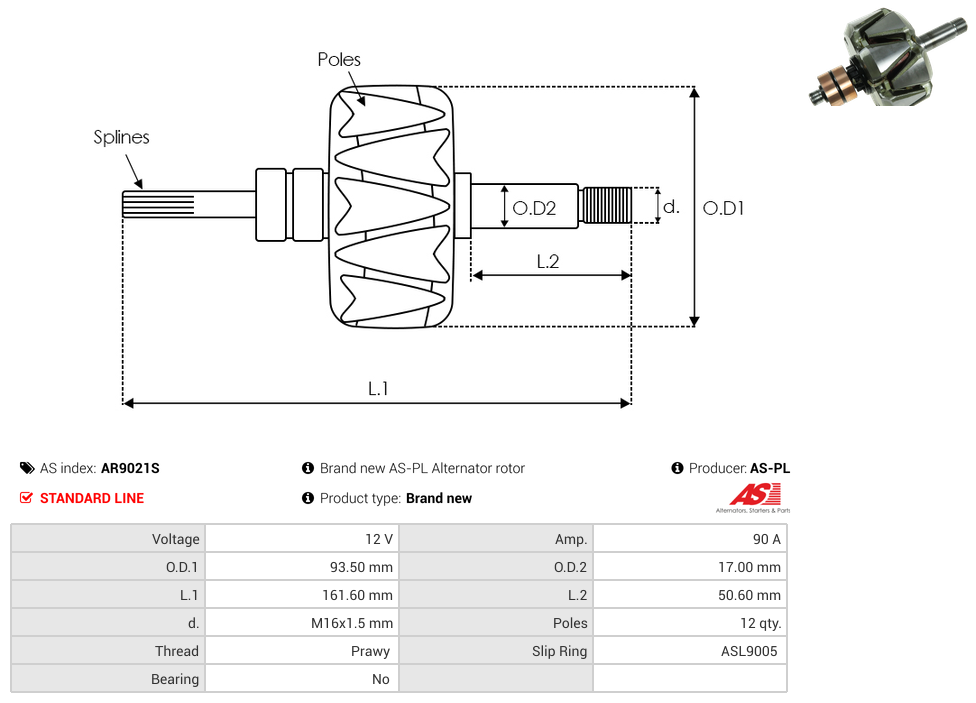

A9034 443113516591 9516591 9515110 9515112 9516590 9515114 9515115 9515131Specifications
| Amp | 90 A |
| Fitted with Bearing | No |
| Length (L.1) | 161.60 mm |
| Length (L.2) | 50.60 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 93.50 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Product Line | Standard Line |
| Product Type | Brand new |
| Slip Ring to Suit | ASL9005 |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Reference Information
| 0136051 | MAGNETON |
| 231722 | CARGO |
| 443930136051 | MAGNETON |
| F032231722 | CARGO |
| ROTX007 | ELECTROLOG |
| UD02941AR | AS-PL |
| WRT67119 | WOODAUTO |
