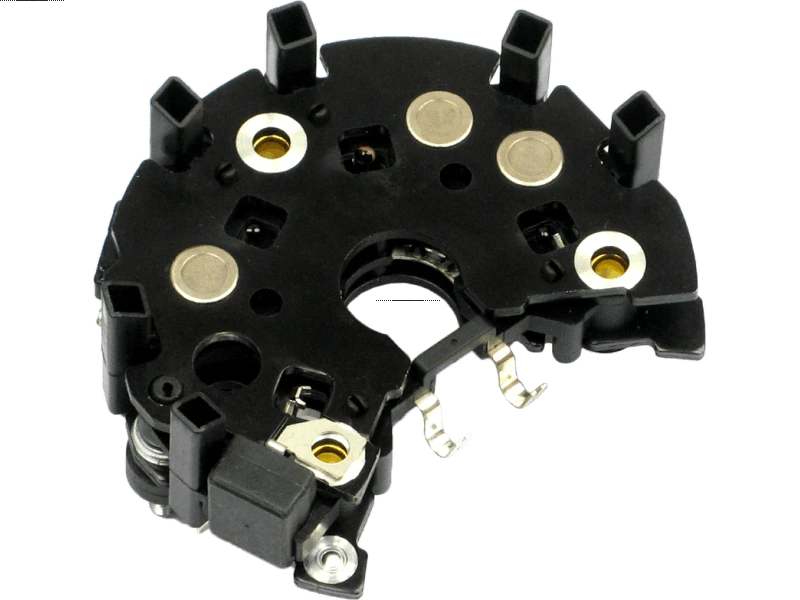

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 72.12 including GST
NZ$ 62.71 excluding GST
or four payments of $18.03
with
Learn More
each
ARC0105
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0123310023 0123310048 0123310050 0123320050 0123310055 0123320067 0123310029 0123310054Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 11.20 mm |
| Diode Amp Rating | 35 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M5x0.8 mm |
| D+ Thread Height (D+H) | 10 mm |
| Inside Diameter (I.D.1) | 22.90 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 111.90 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | Y |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 1127319569 | BOSCH |
| 1127319570 | BOSCH |
| 137507 | CARGO |
| AEB1507 | KRAUF |
| AMP1570 | MAGNETI MARELLI |
| F032137507 | CARGO |
| IBR570 | WAI / TRANSPO |
| PRP582 | GHIBAUDI |
| RB-105H | MOBILETRON |
| RCT1046 | ELECTROLOG |
Video/Publications
0123310023 0123310029 0123310048 0123310050 0123310055 0123320050 0123320067 A0378View your shopping basket or Browse other items in Rectifier.
