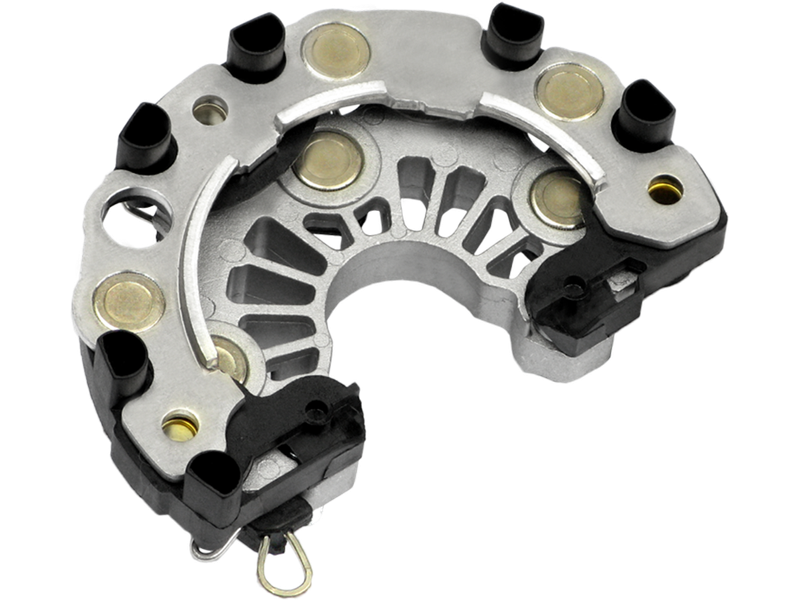

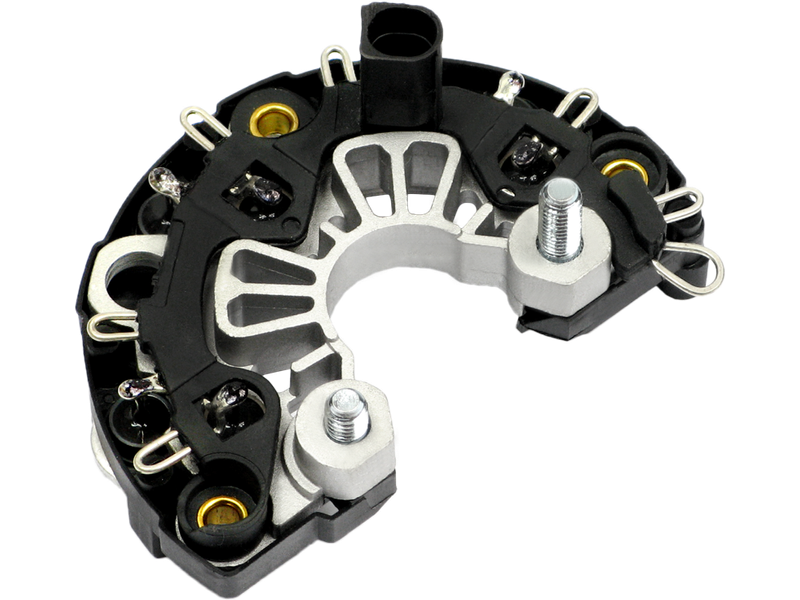

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 55.87 including GST
NZ$ 48.58 excluding GST
or four payments of $13.97
with
Learn More
UOM:
each
Product Code:
ARC0110
1
Associated Numbers
0124515035 0124515057 0124515134Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8X1.25 mm |
| B+ Thread Length (B+H) | 18.30 mm |
| Diode Amp Rating | 60 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8X1.25 mm |
| D+ Thread Height (D+H) | 8.30 mm |
| Height (H.1) | 56 mm |
| Inside Diameter (I.D.1) | 38.40 mm |
| Mount Distance (C-C) | 54.50 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 120 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 038903803H | VW |
| 133755 | HUCO |
| 230374 | CARGO |
| 81112894 | POWERMAX |
| CQ1080514 | CQ |
| F00M133207 | BOSCH |
| F00M133231 | BOSCH |
| F00M133268 | BOSCH |
| F032230374 | CARGO |
| IBR207 | WAI / TRANSPO |
| P564 | GHIBAUDI |
| RCT1166 | ELECTROLOG |
| RTF39821 | WOODAUTO |
Video/Publications
0124515035 0124515057 0124515134 A01077S A0189View your shopping basket or Browse other items in Rectifier.
