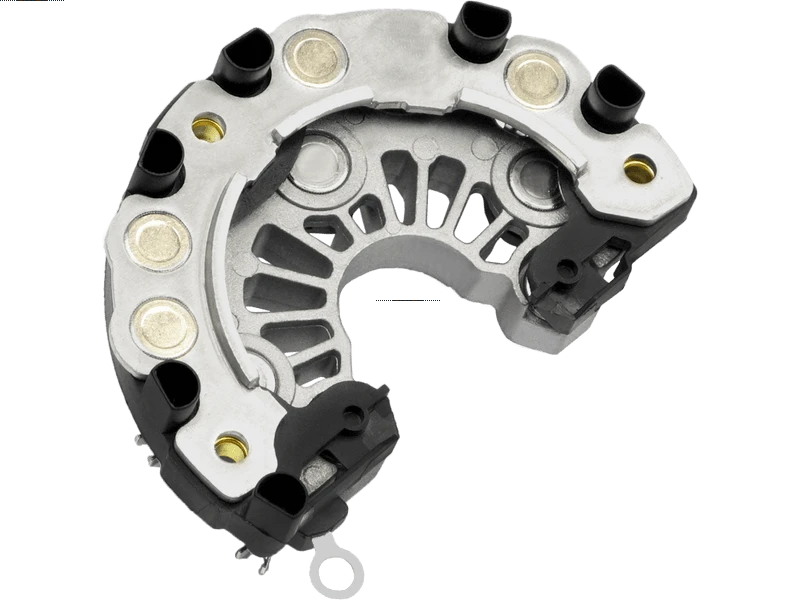

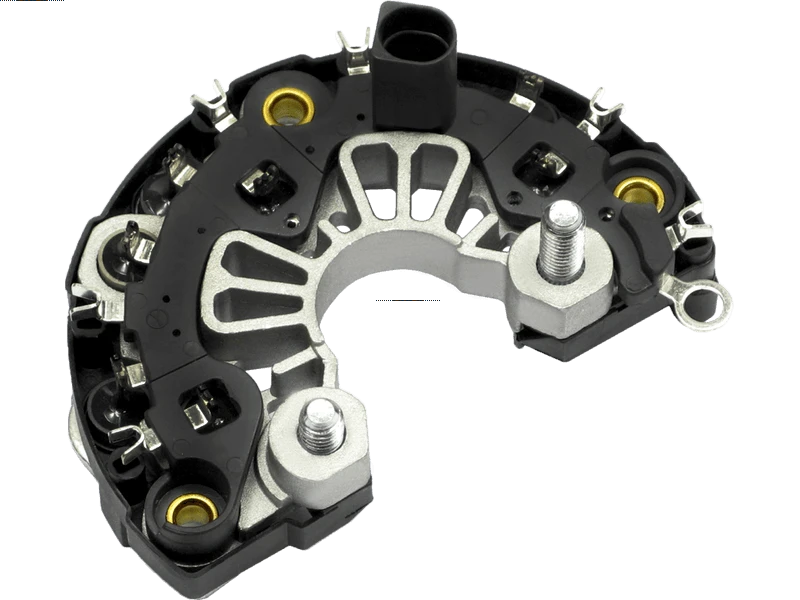

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 60.50 including GST
NZ$ 52.61 excluding GST
or four payments of $15.13
with
Learn More
each
ARC0114
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124315030 0124315042 RE509648 RE529377 SE501831 A0038 0124325022Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 18.40 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 8 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
| D+ Thread Height (D+H) | 8.30 mm |
| Height (H.1) | 56 mm |
| Inside Diameter (I.D.1) | 38.30 mm |
| Mount Distance (C-C) | 53.5 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 121 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | Y |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 038903023P | VW |
| 038903803G | VW |
| 216189 | ERA |
| 233467 | CARGO |
| AEB0208 | KRAUF |
| CQ1080318 | LAUBER |
| F00M123212 | BOSCH |
| F00M123228 | BOSCH |
| F00M123255 | BOSCH |
| F00M144002 | BOSCH |
| F032233467 | CARGO |
| IBR208 | WAI / TRANSPO |
| RCT1184 | ELECTROLOG |
| UD01480ARC | AS-PL |
