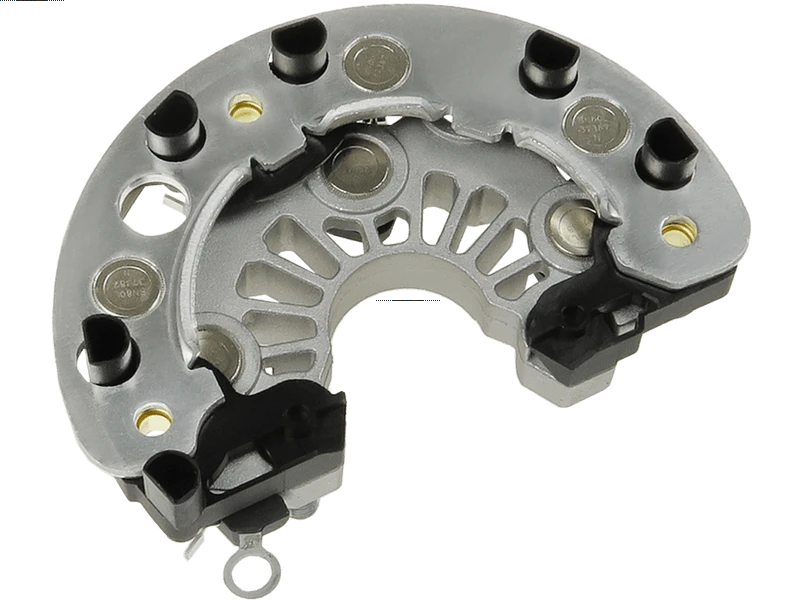

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 123.10 including GST
NZ$ 107.04 excluding GST
or four payments of $30.78
with
Learn More
UOM:
each
Product Code:
ARC0162
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124625029 0124625030Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 20.70 mm |
| Diode Amp Rating | 80 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
| D+ Thread Height (D+H) | 8.30 mm |
| Inside Diameter (I.D.1) | 38.30 mm |
| Mount Distance (C-C) | 102 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 129 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | ∆ |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 236821 | CARGO |
| 335528 | CARGO |
| 81111787 | POWERMAX |
| F00M133249 | BOSCH |
| F00M133276 | BOSCH |
| F00M133282 | BOSCH |
| F032236821 | CARGO |
| F032335528 | CARGO |
| IBR215 | WAI / TRANSPO |
| IBR216 | WAI / TRANSPO |
| RB-166H | MOBILETRON |
| RCT1206 | ELECTROLOG |
| RCT1218 | ELECTROLOG |
| RTF39894 | WOODAUTO |
