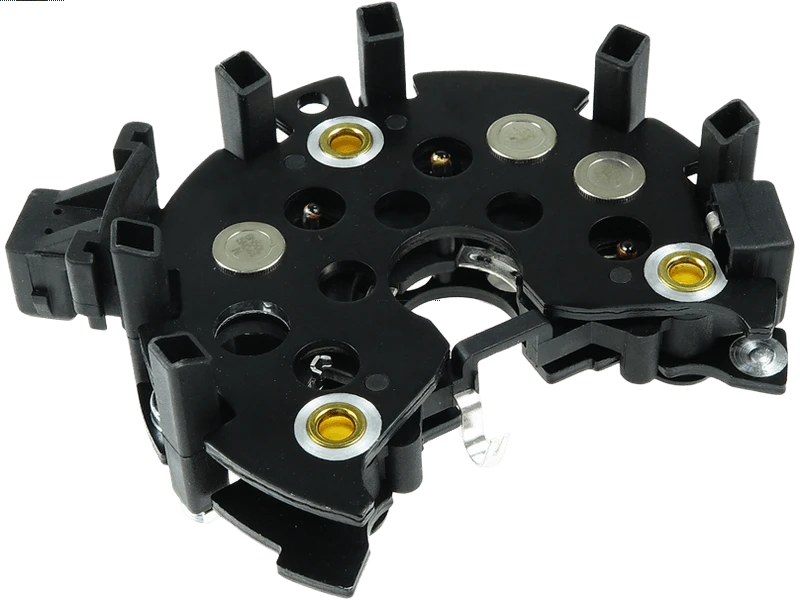

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 72.12 including GST
NZ$ 62.71 excluding GST
or four payments of $18.03
with
Learn More
each
ARC0185
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0123320007 0123320017 0123340002 0123340003 0123320002 0123340005 0123320005 9123320007 0123320001 0120485036 0120485038 0120485039 0123310001 0123310020 0123310037 0123310003 A0079 A0129 A0509 A0006Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 23.90 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 6 qty |
| Inside Diameter (I.D.1) | 23 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 112.80 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | Y |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 028903359B | VW |
| 028903359C | VW |
| 028903359J | VW |
| 053.000.279.010 | PSH |
| 11-15-1279 | WILSON |
| 1127319552 | BOSCH |
| 1127319666 | BOSCH |
| 1127319728 | BOSCH |
| 1127320852 | BOSCH |
| 135439 | CARGO |
| 138077 | CARGO |
| 139454 | HITACHI |
| 1.6508.1 | IKA |
| 215351 | ERA |
| 230242 | CARGO |
| 81112202 | POWERMAX |
| 81114089 | POWERMAX |
| 940038207 | MAGNETI MARELLI |
| 940038207010 | MAGNETI MARELLI |
| 9946868 | FIAT |
| AEB1852 | KRAUF |
| CQ1080276 | CQ |
| CRC10100AS | CASCO |
| F032135439 | CARGO |
| F032138077 | CARGO |
| F032230242 | CARGO |
| IBR852 | WAI / TRANSPO |
| PRP588 | GHIBAUDI |
| PT0065 | 3EFFE |
| RB-122H | MOBILETRON |
| RB-24H | MOBILETRON |
| RCT1031 | ELECTROLOG |
| RTF39793 | WOODAUTO |
| SRC10100.0 | SANDO |
| UD11446ARC | AS-PL |
| UD46005ARC | AS-PL |
Video/Publications
0120485034 0120485036 0120485038 0120485039 0123310001 0123310003 0123310019 0123310020 0123310037 0123320001 0123320002 0123320005 0123320007 0123320017 0123320018 0123320034 0123340002 0123340003 0123340005 9123320007 A0006 A0019 A0079 A0080 A0129 A0131 A0202 A0380 A0509View your shopping basket or Browse other items in Rectifier.
