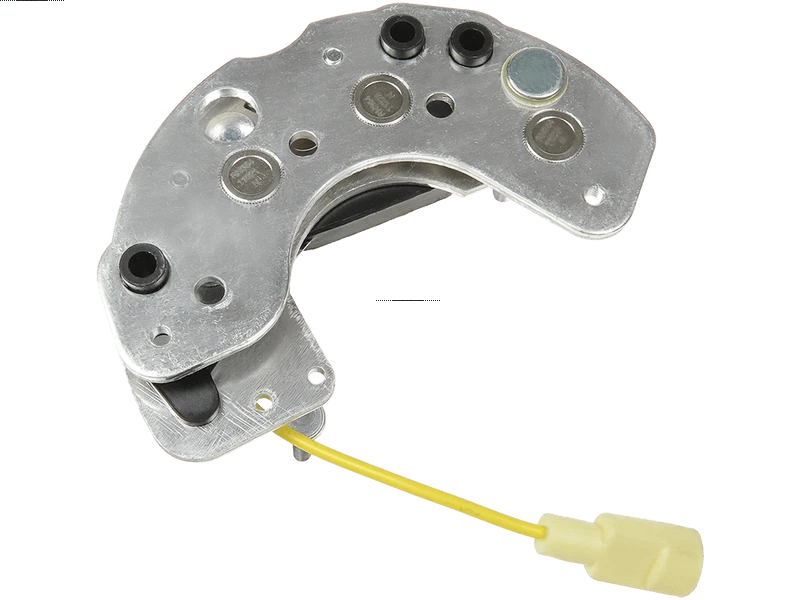

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 32.50 including GST
NZ$ 28.26 excluding GST
each
ARC4004
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
1012257 1659058 5027845 5029923 88BB10300HA 88BB10300HB 89FF10300CC 89FF10300CD 89FF10300CE 89FF10300EB 89FF10300EC 89FF10300JA 89FF10300JB 89FX10300CD 89FX10300EB 89FX10300JA 91FF10300TA 95FB10300AA V89AB10300AA 054022197010 054022198010 054022232010 054022251010 054022275010 054022290010 054022314010 054022317010 054022330010 054022340010 054022388010 054022419010 054022474010 054022514010 054022574010 054022585010 054022602010 054022603010 054022604010 054022665010 054022693010 063324206010 063324217010 063324220010 063324221010 063324404010 24206 24206A 24206A/B 24206B 24207 24207A 24216 24217 24217A 24220 24220A 24221 24221A 24271 54022158 54022159 54022187 54022197 54022198 54022232 54022251 54022275 54022281 54022290 54022305 54022307 54022312 54022314 54022314B 54022317 54022318 54022330 54022340 54022388 54022400 54022419 54022450 54022474 54022514 54022559 54022574 54022584 54022585 54022597 54022602 54022603 54022604 54022614 54022665 54022693 54022701 54022716 54055205 LRA00517 LRA00604 54022197 54022198 54022275 54022340 54022474 54022574 54022665 54022693 63324121 63324206 63324217 63324220 63324221 63324334 63324404 2871A161 YLE10105 YLE102200 LRA604 A4012 A4013 LRA517Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 38.20 mm |
| Diode Amp Rating | 35 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M5x0.8 mm |
| D+ Thread Height (D+H) | 29.70 mm |
| Mount Distance (C-C) | 75 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 112.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | LUCAS |
| With Attached Bracket | No |
Reference Information
| 000084469010 | LUCAS |
| 000084886010 | LUCAS |
| 1114145 | POWERMAX |
| 132721 | CARGO |
| 139632 | HUCO |
| 21105301BN | REAL |
| 21105301OE | REAL |
| 215500 | ERA |
| 28502 | MAGNETI MARELLI |
| 81114145 | POWERMAX |
| 84469 | LUCAS |
| 84886 | LUCAS |
| 86AB10304BA | FORD |
| CQ1080531 | CQ |
| CQ1080670 | CQ |
| CRC25103AS | CASCO |
| CRC25103GS | CASCO |
| F032132721 | CARGO |
| ILR568 | WAI / TRANSPO |
| ILR568HD | WAI / TRANSPO |
| LBU5225 | ROVER |
| PT0125 | 3EFFE |
| RCT4025 | ELECTROLOG |
| REC-833 | UNIPOINT |
| RL-09 | MOBILETRON |
| RL-09H | MOBILETRON |
| RTC5371 | ROVER |
| RTC5671 | ROVER |
| RTF4954B | WOODAUTO |
| SRC25103.0 | SANDO |
| SRC25103.1 | SANDO |
| UBB137 | LUCAS |
Video/Publications
054022197010 054022198010 054022232010 054022251010 054022275010 054022290010 054022314010 054022317010 054022330010 054022340010 054022388010 054022419010 054022474010 054022514010 054022574010 054022585010 054022602010 054022603010 054022604010 054022665010 054022693010 063324206010 063324217010 063324220010 063324221010 063324404010 1012257 1659058 24206 24206A 24206A/B 24206B 24207 24207A 24216 24217 24217A 24220 24220A 24221 24221A 24271 2871A161 5027845 5029923 54022158 54022159 54022187 54022197 54022198 54022232 54022251 54022275 54022281 54022290 54022305 54022307 54022312 54022314 54022314B 54022317 54022318 54022330 54022340 54022388 54022400 54022419 54022450 54022474 54022514 54022559 54022574 54022584 54022585 54022597 54022602 54022603 54022604 54022614 54022665 54022693 54022701 54022716 54055205 63324121 63324206 63324217 63324220 63324221 63324334 63324404 88BB10300HA 88BB10300HB 89FF10300CC 89FF10300CD 89FF10300CE 89FF10300EB 89FF10300EC 89FF10300JA 89FF10300JB 89FX10300CD 89FX10300EB 89FX10300JA 91FF10300TA 95FB10300AA A4012 A4013 A4041 A4129S LRA00517 LRA00604 LRA517 LRA604 V89AB10300AA YLE10105 YLE102200View your shopping basket or Browse other items in Rectifier.
