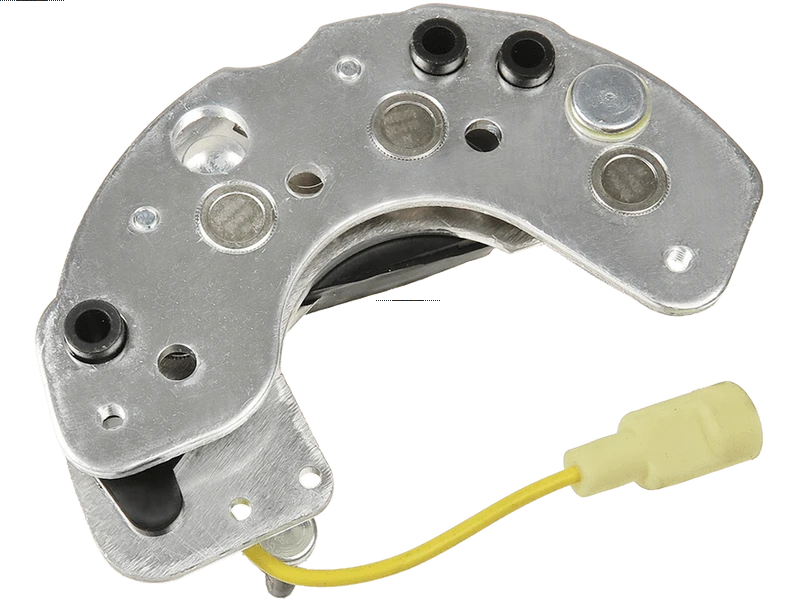

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 34.66 including GST
NZ$ 30.14 excluding GST
each
ARC4006
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
054022608010 054022653010 054022654010 063324286010 063324411010 24286 54022375 54022608 54022653 54022654 54022375 54022653 63324286 63324411 2871A166 A4015 LRA527Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 46.60 mm |
| Diode Amp Rating | 35 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M5x0.8 mm |
| D+ Thread Height (D+H) | 29.80 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 112.30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | LUCAS |
| With Attached Bracket | No |
Reference Information
| 000028500010 | LUCAS |
| 000028506010 | LUCAS |
| 1111776 | POWERMAX |
| 136324 | CARGO |
| 21105701BN | REAL |
| 215508 | ERA |
| 28500 | MAGNETI MARELLI |
| 28506 | MAGNETI MARELLI |
| 63328506 | MAGNETI MARELLI |
| 81111776 | POWERMAX |
| 84976 | LUCAS |
| CQ1080261 | CQ |
| CRC25107AS | CASCO |
| F032136324 | CARGO |
| ILR576 | WAI / TRANSPO |
| ILR576HD | WAI / TRANSPO |
| RCT4023 | ELECTROLOG |
| RL-10H | MOBILETRON |
| RTF4954F | WOODAUTO |
| SRC25107 | SANDO |
