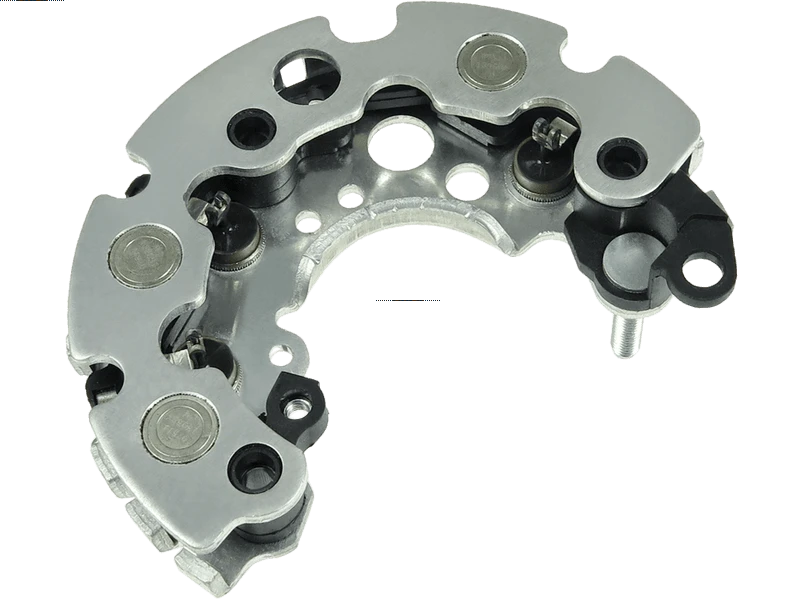

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
MAGNETI MARELLI
Price:
NZ$ 49.65 including GST
NZ$ 43.17 excluding GST
or four payments of $12.41
with
Learn More
each
ARC4015S
1
Associated Numbers
063321321010 063321333010 063321351010 063321352010 063341321010 063341333010 063341351010 063341352010 63321321 63321333 63321351 63321352 63341321 63341333 63341351 63341352 63621321 63621333 63621351 63621352 63641351 63641352Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M6x1.0 mm |
| B+ Thread Length (B+H) | 27 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 6 qty |
| Mount Distance (C-C) | 86 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 123 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Unit Type | MAGNETI MARELLI |
| With Attached Bracket | No |
Reference Information
| 063623602010 | MAGNETI MARELLI |
| 138792 | CARGO |
| 1.6638.1 | IKA |
| 215947 | ERA |
| 63623602 | MAGNETI MARELLI |
| 81110243 | POWERMAX |
| AEE1726 | KRAUF |
| CQ1080376 | LAUBER |
| F032138792 | CARGO |
| IXR726 | WAI / TRANSPO |
| PRP126 | GHIBAUDI |
| RCT4053 | ELECTROLOG |
| RDD36B | MAGNETI MARELLI |
| RI-18H | MOBILETRON |
| RTF49557 | WOODAUTO |
| UD18343ARC | AS-PL |
| UD20218ARC | AS-PL |
Video/Publications
