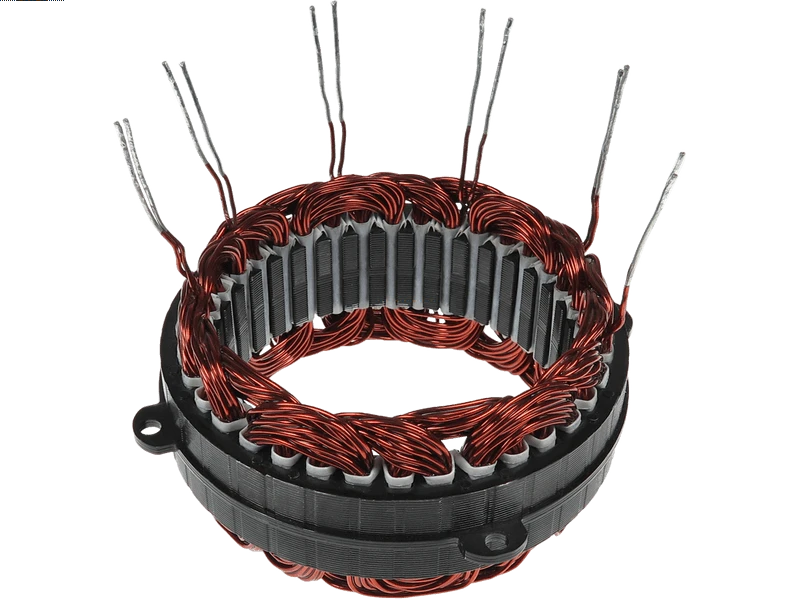

Brand new AS-PL Alternator stator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 107.03 including GST
NZ$ 93.07 excluding GST
or four payments of $26.76
with
Learn More
each
AS0097S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
A0197 0123310054 0123310015 0123310023 0123310029 0123310038 0123310048 0123310050 0123310053 0123310055 B120411528 1036244 1093245 1127350 5030656 7355509 94AB10300BA 95AB10300DB 95AB10300DC 96FB10300AA 96FB10300AB 96FB10300DC 96FB10300DD 96FB10300DE R95AB10300DB R96FB10300DDSpecifications
| Amp | 70 A |
| Height (H.1) | 61.70 mm |
| Height (H.2) | 28.50 mm |
| Inside Diameter (I.D.1) | 94.50 mm |
| Lam. Stack Height (H.3) | 3 mm |
| No./Leads | 6 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 128 mm |
| Outside Diameter (O.D.2) | 125 mm |
| Outside Diameter of Windings (O.D.3) | 113.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | BOSCH |
| Voltage | 12 V |
Reference Information
| 1115370 | POWERMAX |
| 1125045511 | BOSCH |
| 1125045513 | BOSCH |
| 1125045530 | BOSCH |
| 136373 | CARGO |
| 20801690 | REAL |
| 81115370 | POWERMAX |
| AFB6373 | KRAUF |
| CSR10096 | CASCO |
| F032136373 | CARGO |
| SSR10096 | SANDO |
| STA1126 | ELECTROLOG |
| UD20215AS | AS-PL |
| WST87730 | WOODAUTO |
