AS1010 - Brand new AS-PL Alternator stator

Brand new AS-PL Alternator stator
Brand new AS-PL Alternator stator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 99.15 including GST

NZ$ 86.22 excluding GST



or four payments of $24.79 with
Afterpay Payment Offer Learn More

each
AS1010
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

A1008 1101603 10479969 1101583 1101123 10480098 1101125 1105661 1101149 10479974 1101158 1101179 1101229 10480094 1105667 1101577 1101141 1105701 1102604 10479998 10463176 10480069 10479912 10463011 10480028 10479815 10479814 10479902 1101629 1101184 1101231 1105671 1101832 1101810 1101595 10480083 1101632 1101612 1101475 10480105 1101608 1101150 10463016 10479920 1101142 1101253 10480087 10480035 1101318 1105712 10480114 1101480 10480055 1105612 1101601 1101272 10480068 1101846 10479922 1101107 10479903 1101822 1102600 1105664 1101277 10463097 10479913 1101644 1101293 10479097 1101140 10463007 1101617 1101267 10479963 1101139 1102629 10463197 1101582 10480115 1101110 1101571 1101273 1101618 1101173 1105710 10480089 1101091 1101271 1102603 1102630 10479874 10480037 1101616 1101478 1101467 1101151 1105725 1101814 10479897 1101146 10480025 10479806 1101246 1101646 1102607 1101465 10479962 1105698 1101812 1101807 1105688 10463017 1101154 10479921 10479895 1101124 10463013 1101600 1101599 1101636 10463187 1101630 10480104 10463014 1101461 10480082 1101170 1101275 1102631 1101259 1101650 1105672 10480134 1101145 1105720 10479905 10480088 1101111 1101137 1101144 1101126 1105689 1105718 10479954 10479909 10463012 1102601 1101521 1101127 1101464 1101642 1101628 1105669 1101638 1101435 1101310 1101148 1101806 10480036 1101843 1101633 10480093 1101346 1101254 10480086 1101136 10479807 1105715 10463043 1102602 1105662 1101143 1101186 1101647 1101255 10480084 1101167 1105665 10480090 1101264 1101634 1101138 10479808 1101109 10479976 1101317 1102617 1105663 1101619 1101162 1101344 10479911 1105694 1101181 1101605 10480099 1101621 1101635 1101649 1101606 10479938 1101135 1101278 10480085 10480097 10480040 10479901 10480137 1101645 1101596 10463015 1101620 1105678 1101466 1101593 1101637 10463172 1101815 1105722 1101227 1105716 10479906 10479993 1101101 1101266 1101292 1105711 10479910 10480092 10480091 10480027 10480136 10480127 1105670 S1007

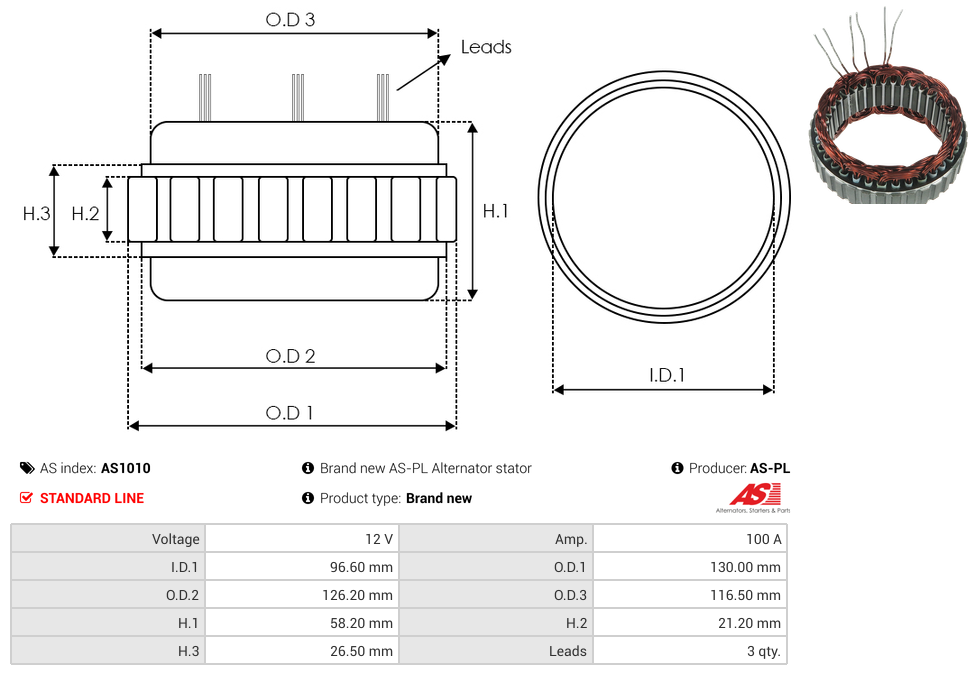

Amp100 A
Height (H.1)58.20 mm
Height (H.2)21.20 mm
Inside Diameter (I.D.1)96.60 mm
Lam. Stack Height (H.3)26.50 mm
No./Leads3 qty
OEM ProductNo
Outside Diameter (O.D.1)130 mm
Outside Diameter (O.D.2)126.20 mm
Outside Diameter of Windings (O.D.3)116.50 mm
Product LineStandard Line
Product TypeBrand new
Unit TypeDELCO
Voltage12 V
10463007 10463011 10463012 10463013 10463014 10463015 10463016 10463017 10463043 10463097 10463172 10463176 10463187 10463197 10479097 10479806 10479807 10479808 10479814 10479815 10479874 10479895 10479897 10479901 10479902 10479903 10479905 10479906 10479909 10479910 10479911 10479912 10479913 10479920 10479921 10479922 10479938 10479954 10479962 10479963 10479969 10479974 10479976 10479993 10479998 10480000 10480025 10480027 10480028 10480035 10480036 10480037 10480040 10480055 10480068 10480069 10480082 10480083 10480084 10480085 10480086 10480087 10480088 10480089 10480090 10480091 10480092 10480093 10480094 10480097 10480098 10480099 10480104 10480105 10480114 10480115 10480127 10480134 10480136 10480137 1101091 1101101 1101107 1101109 1101110 1101111 1101123 1101124 1101125 1101126 1101127 1101135 1101136 1101137 1101138 1101139 1101140 1101141 1101142 1101143 1101144 1101145 1101146 1101148 1101149 1101150 1101151 1101154 1101158 1101162 1101167 1101170 1101173 1101179 1101181 1101184 1101186 1101227 1101229 1101231 1101246 1101253 1101254 1101255 1101259 1101264 1101266 1101267 1101271 1101272 1101273 1101275 1101277 1101278 1101292 1101293 1101310 1101317 1101318 1101344 1101346 1101435 1101461 1101464 1101465 1101466 1101467 1101475 1101478 1101480 1101521 1101571 1101577 1101582 1101583 1101593 1101595 1101596 1101599 1101600 1101601 1101603 1101605 1101606 1101608 1101612 1101616 1101617 1101618 1101619 1101620 1101621 1101628 1101629 1101630 1101632 1101633 1101634 1101635 1101636 1101637 1101638 1101642 1101644 1101645 1101646 1101647 1101649 1101650 1101806 1101807 1101810 1101812 1101814 1101815 1101822 1101832 1101843 1101846 1102600 1102601 1102602 1102603 1102604 1102607 1102617 1102629 1102630 1102631 1105612 1105661 1105662 1105663 1105664 1105665 1105667 1105669 1105670 1105671 1105672 1105678 1105688 1105689 1105694 1105698 1105701 1105710 1105711 1105712 1105715 1105716 1105718 1105720 1105722 1105725 A1002 A1008 A1010
