Brand new AS-PL Alternator stator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 96.49 including GST
NZ$ 83.90 excluding GST
or four payments of $24.12
with
Learn More
UOM:
each
Product Code:
AS6001
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
100213-1920 27040-54350 2703064130000 2706087720000 1002103381 1002103470 1002103480 1002110120 1002118000 1002118010 1002118020 1002118030 1002118031 1002118050 1002118060 1002118070 1002118090 1002118100 1002118110 1002118120 1002118130 1002118150 1002118151 1002118170 1002118240 1002118250 1002118270 1002118320 1002118330 1002118340 1002118350 1002118380 1002118392 1002118410 1002118440 1002118490 1002118590 1002118610 1002118611 1002118700 1002118710 1002118720 1002118860 1002118960 1002131011 1002131050 1002131130 1002131240 1002131770 1002131920 1002132320 1002132540 1012115010 1012115020 1012115100 1012115110 1012115120 1012115130 1012115150 1012115230 1012115240 1012115260 1012115340 1012115410 1012115460 1012115490 1012115720 1012115870 1012115970 1012119020 1012119180 1012119280 1012119500 1012119510 1012119520 1012119670 1022111210 1022111680 1022111960 31100P0AAA010 31100P720032 31100PT2003 31100PT3A01 31100PT3A511M 31100PT3Q01 CJP16 CJP28 CJP62 CJS50 CJS88 YLE101650 3140060G13 3140077E10 2703064111 2703064140 2704054160 2704054210 2704054240 2704054300 2704054350 2706011280 2706011281 2706015090 2706015140 2706016230 2706016370 2706016390 2706017030 2706017170 2706021020 2706023030 2706042030 2706054070 2706062090 2706064080 2706064100 2706064130 2706064270 2706074100 2706074110 2706074120 2706074150 2706074170 2706074250 2706074290 2706074360 2706074410 2706074430 2706074590 2706074640 2706074730 2706074830 2706076020 2706076030 2706076040 2706076080 ALT5033 ALT5036 ALT5036A ALT5041 ALT5042 ALT5043 ALT5044 ALT5045 ALT5046 ALT5047 ALT5048 ALT5058B ALT5059B ALT5060 ALT5087 ALT5088 ALT5092 3545364 A6001 A6034 1022112230 1022119140 2706022250Specifications

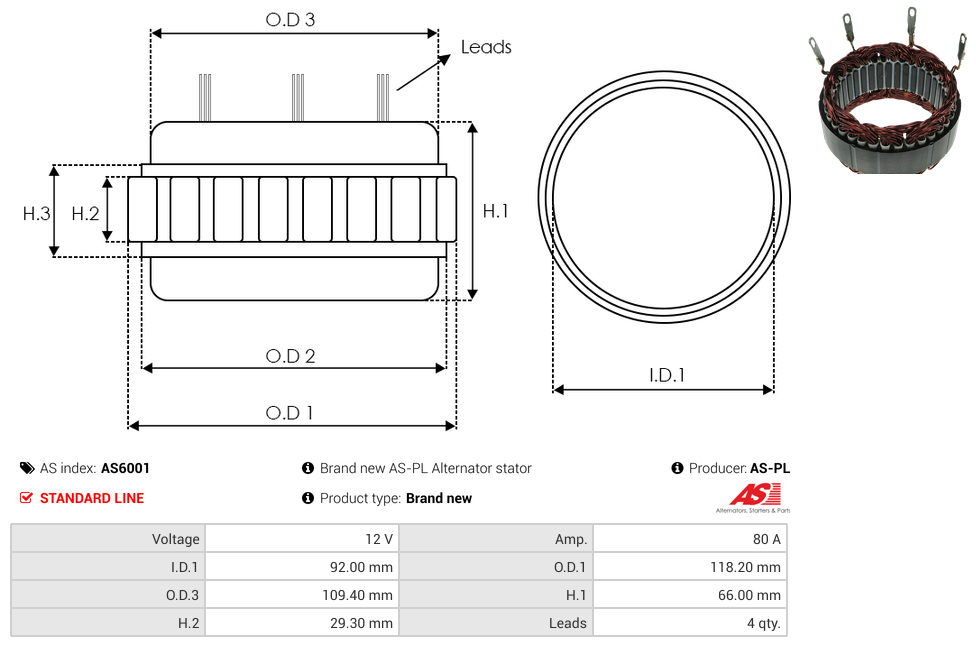

| Amp | 80 A |
| Height (H.1) | 66 mm |
| Height (H.2) | 29.30 mm |
| Inside Diameter (I.D.1) | 92 mm |
| No./Leads | 4 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 118.20 mm |
| Outside Diameter of Windings (O.D.3) | 109.40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Unit Type | DENSO |
| Voltage | 12 V |
Reference Information
| 021100-3200 | DENSO |
| 021100-3220 | DENSO |
| 021100-3500 | DENSO |
| 021100-3510 | DENSO |
| 021100-3930 | DENSO |
| 021100-4110 | DENSO |
| 021100-4120 | DENSO |
| 021100-4130 | DENSO |
| 021100-4180 | DENSO |
| 021100-4280 | DENSO |
| 021100-4930 | DENSO |
| 133671 | CARGO |
| 235223 | CARGO |
| 238834 | CARGO |
| 27-8204 | WAI / TRANSPO |
| CSR40007AS | CASCO |
| F032133671 | CARGO |
| F032235223 | CARGO |
| F032238834 | CARGO |
| SSR40007 | SANDO |
| STA6006 | ELECTROLOG |
| T-503609 | UNIPOINT |
| T-504209 | UNIPOINT |
| WST8965 | WOODAUTO |
