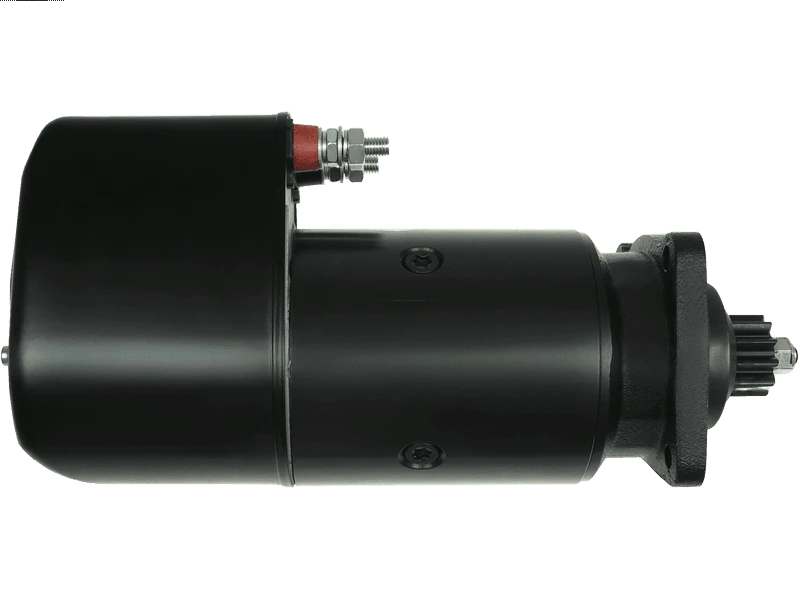

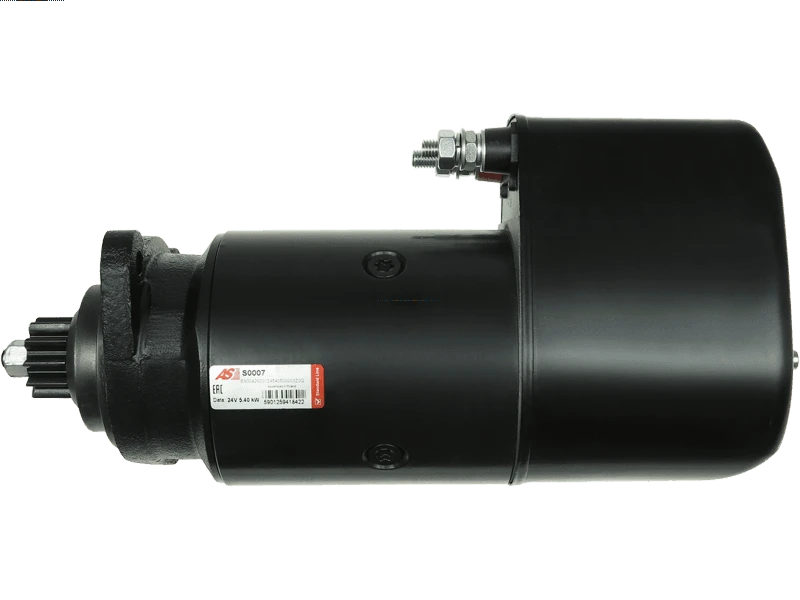

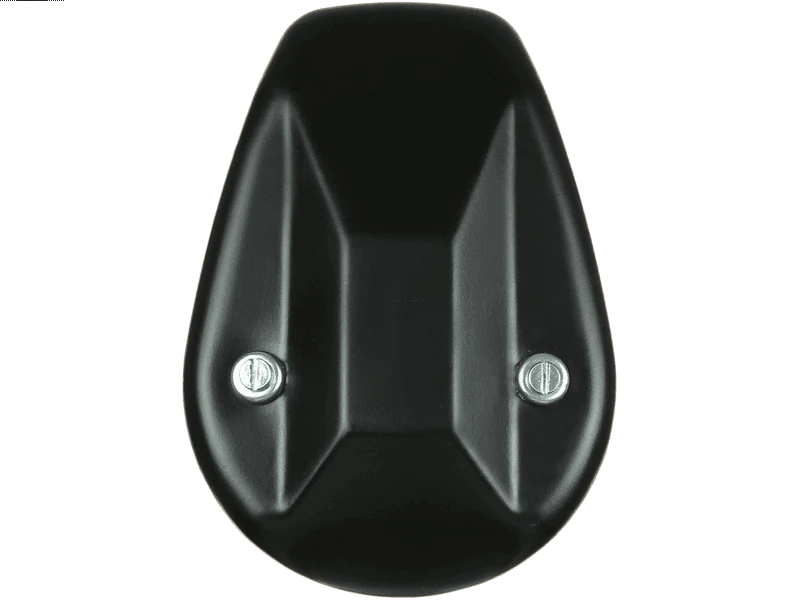

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 778.12 including GST
NZ$ 676.63 excluding GST
or four payments of $194.53
with
Learn More
each
S0007
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001410044Associated Numbers
0001410044 0011512901 0986012740 10710 110208 18253N 18380N 20401077BN 240504 33346 45-0327 469414 5000270909 5001683 51.26201-7034 51.26201-9034 6010770 611.000.0 61227993 860500GB 860504GB 8675 8812740 8EA730226-001 9000084018 A0011512901 AES8160 CS710 CST10770AS DRS2740 IM325 LRS00860 R23-11 STR50137Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 387 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ TRUCKS & BUSES | U 1300 5.7 | 01.1977-05.1988 | |
| STEYR | 19 S 34 12.0 | 10.1987-06.1996 | |
| STEYR | 19 S 37 12.0 | 10.1987-06.1996 | |
| STEYR | 19 S 39 12.0 | 05.1990-06.1996 | |
| STEYR | 22 S 34 12.0 | 10.1987-06.1996 | |
| STEYR | 22 S 37 12.0 | 10.1987-06.1996 | |
| STEYR | 26 S 34 12.0 | 10.1987-06.1996 | |
| STEYR | 26 S 37 12.0 | 10.1987-06.1996 | |
| STEYR | 32 S 34 12.0 | 10.1987-06.1996 | |
| STEYR | 32 S 37 12.0 | 10.1987-06.1996 | |
| STEYR | 33 S 34 12.0 | 10.1987-06.1996 | |
| STEYR | 40 S 34 12.0 | 01.1988-06.1996 | |
| STEYR | 40 S 37 12.0 | 01.1988-06.1996 | |
| VOLVO | B10 | 01.1978-12.1983 | |
| VOLVO | B10M | 01.1979-12.1986 | |
| VOLVO | B58 | 01.1972-12.1980 | |
| VOLVO | B58T | 01.1972-12.1980 | |
| VOLVO | B59T | 01.1972-12.1979 |
Reference Information
| 0001410044 | BOSCH |
| 0011512901 | MERCEDES |
| 001151290180 | MERCEDES |
| 01161280 | KHD |
| 01161563 | KHD |
| 0986012740 | BOSCH |
| 10710 | KUHNER |
| 110208 | CARGO |
| 11030906 | VOLVO |
| 1161280 | KHD |
| 1161563 | KHD |
| 1199872 | VOLVO |
| 1516764R | DAF |
| 1516800R | DAF |
| 18253N | WAI / TRANSPO |
| 18380N | WAI / TRANSPO |
| 20401077BN | REAL |
| 220251 | ERA |
| 240504 | VOLVO |
| 293020 | DAF |
| 293020 | SCANIA |
| 30051600022 | DOOSAN |
| 33346 | EAI |
| 45-0327 | ELSTOCK |
| 465929 | VOLVO |
| 469414 | VOLVO |
| 5000270909 | RENAULT |
| 5001683 | VOLVO |
| 5003027 | VOLVO |
| 51262017034 | MAN |
| 51.26201-7048 | MAN |
| 51262017100 | MAN |
| 51.26201-7100 | MAN |
| 51262019034 | MAN |
| 51.26201-9100 | MAN |
| 6000733 | LIEBHERR |
| 6010770.0 | SANDO |
| 611.000.0 | ELMOT |
| 61227993 | FIAT |
| 636306 | DAF |
| 81400090003 | STEYR |
| 81500090049 | STEYR |
| 85000438 | VOLVO |
| 85000450 | VOLVO |
| 860504GB | PRESTOLITE |
| 8790 | EFEL |
| 8812740 | FRIESEN |
| 8EA730226-001 | HELLA |
| 9000084018 | BOSCH |
| 9004778060 | VOLVO |
| 9011030906 | VOLVO |
| A0011512901 | MERCEDES |
| A001151290180 | MERCEDES |
| AES8160 | AUTOELECTRO |
| C2R24X4H7622 | KHD |
| CS506 | HC PARTS |
| CS710 | HC PARTS |
| CST10770AS | CASCO |
| D2R24X6H7622 | KHD |
| DRS2740 | DELCO |
| F032110208 | CARGO |
| IM325 | AVF |
| LRS00860 | LUCAS |
| LRS860 | LUCAS |
| R23-11 | ELMOT |
| STR1077 | ELECTROLOG |
| STR50137 | WOODAUTO |
Video/Publications
