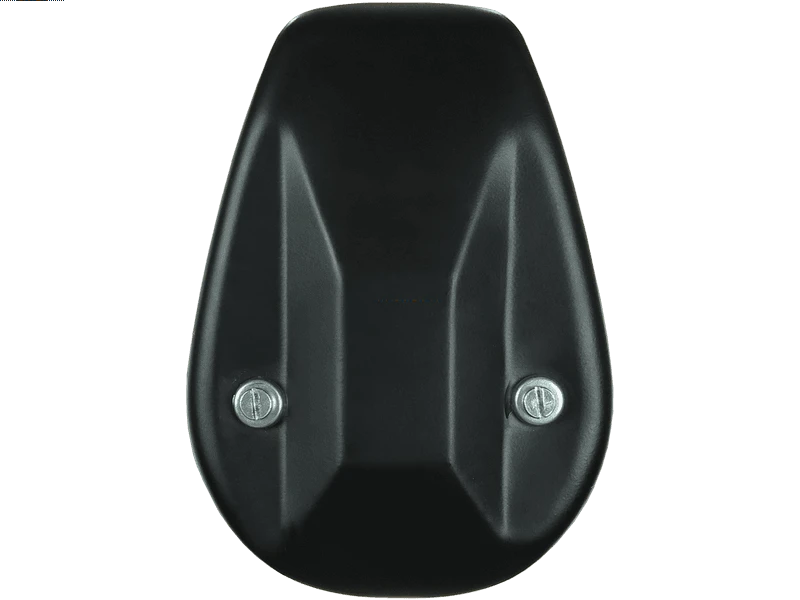

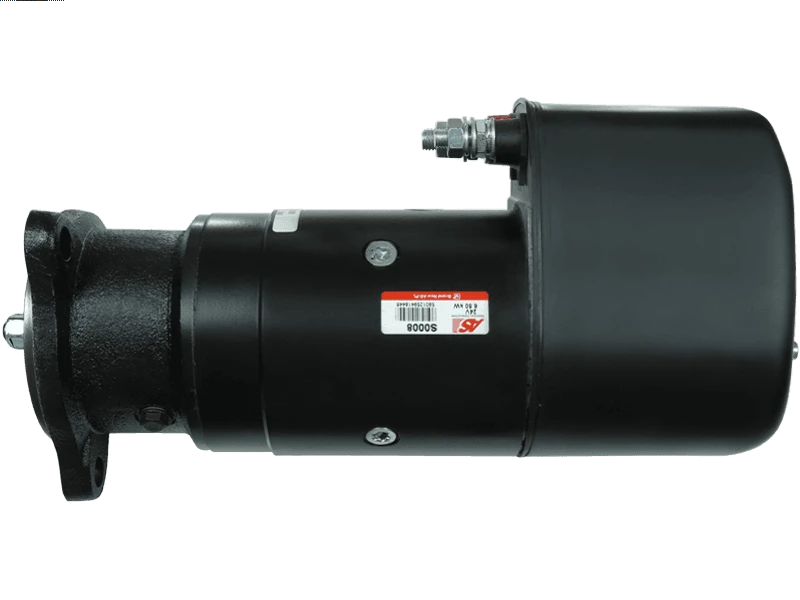

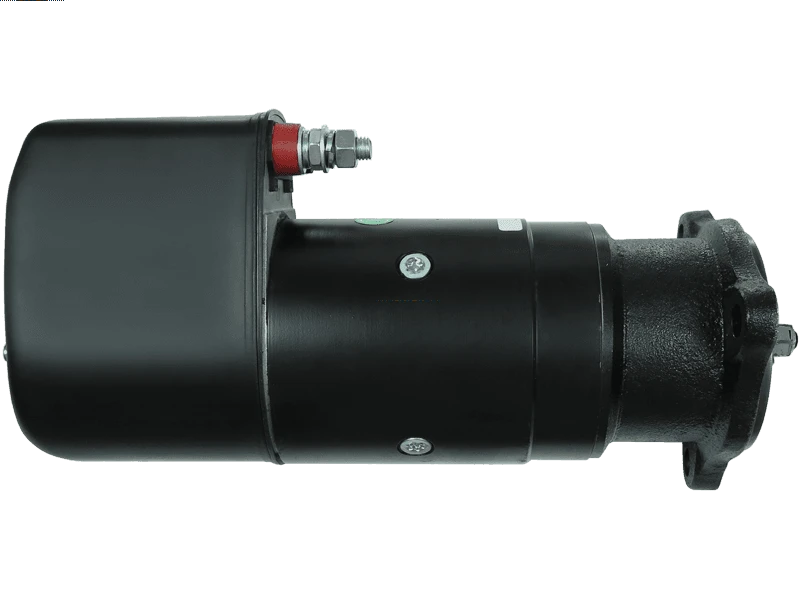

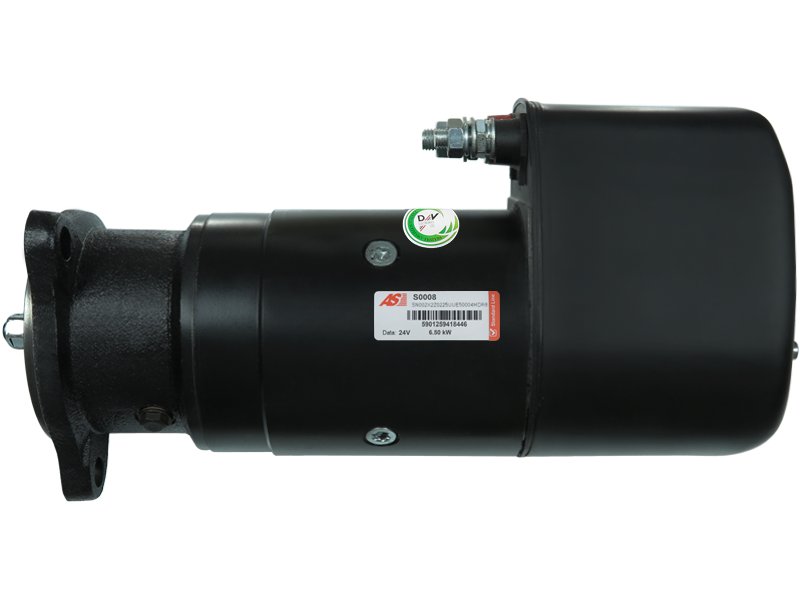

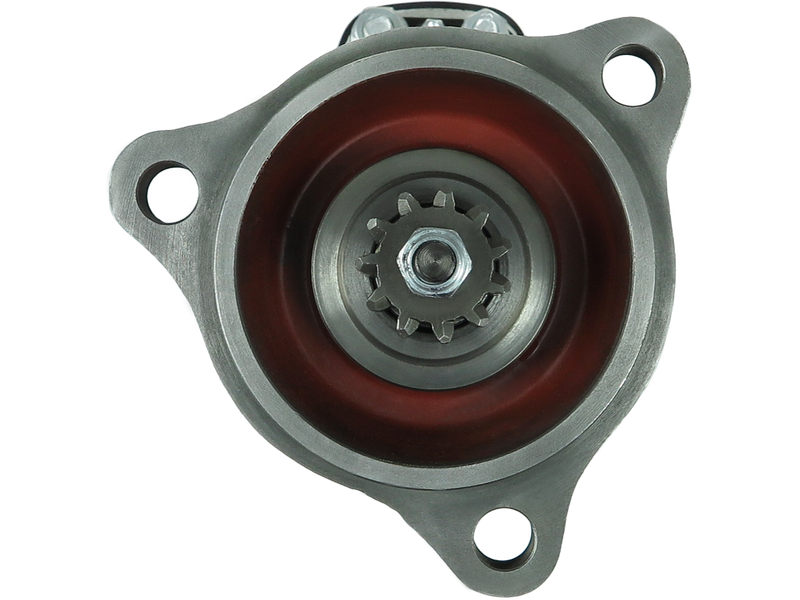

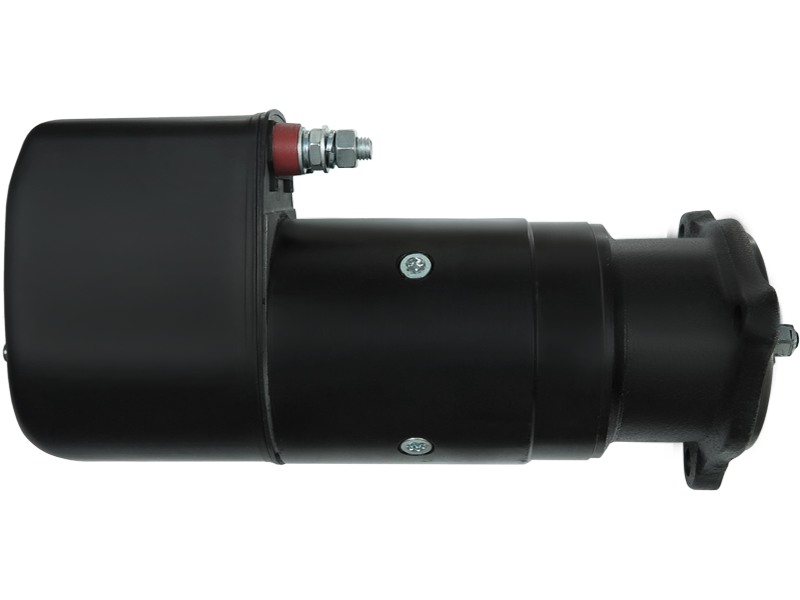

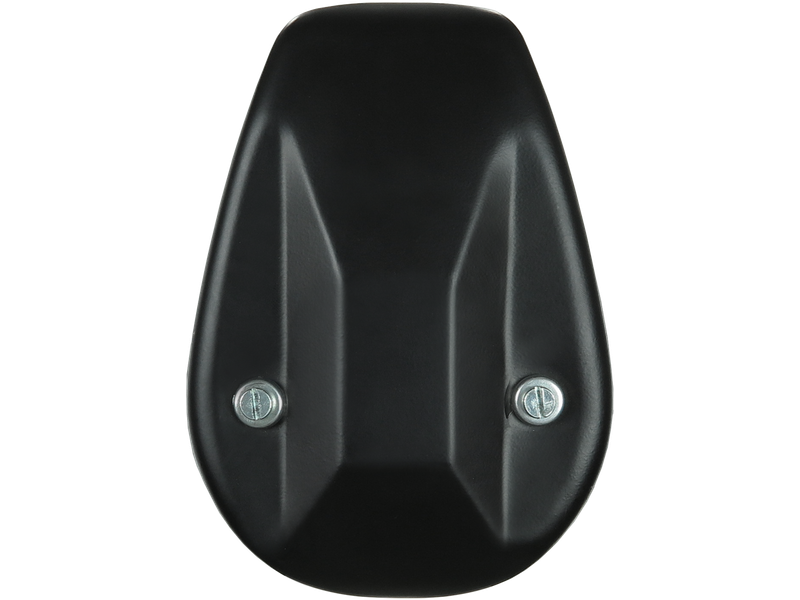

S0008 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 785.07 including GST

NZ$ 682.67 excluding GST



or four payments of $196.27 with
Afterpay Payment Offer Learn More

each
S0008
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

0001417006
0001411017 0001411026 0001417006 0001417074 06860 0986013440 0986018810 10564 10564P 10564R 110532 20401037BN 20401037EL 20401936BN 20401936EL 22.0564 255905 255905P 28.0564 28.0564M 30118N 33531 33596 4179626 438043 45-1123 455524 4732241 4782802 6010639 6010730 81467007 8212986 860545GB 8705 8813440 8EA726189-001 CS564 CST10639AS CST10639ES CST10730AS CST10730ES DRS3440 EAA-121376 IM606 LRS00778 R20.24 S0008 STR50052 20401240
Kilowatt6.50 kW
Length (L.1)410 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)127 mm
Mount Hole Diameter (C.1)15.50 mm
Mount Hole Diameter (C.2)15.50 mm
Mount Hole Diameter (C.3)15.50 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth11 qty
No./Teeth (Replaces)11 qty
OEM ProductNo
Oil SealedYes
Pinion at Rest (B)20 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)115 mm
Unit TypeBOSCH
Voltage24 V
Water ProofYes
Make Model Type Year
IVECO 190-42 17.2 [8280.22.201][8280.22.205] 07.1984-09.1986
IVECO 190-48 17.2 [8280.42.001] 03.1989-12.1993
IVECO 190-48 17.2 [8280.42.050] 11.1991-11.2000
IVECO 190 E 52 17.2 [8280.42STCA] 04.1992-11.2000
IVECO 240 E 42 14.0 [8210.42L.400] 04.1992-12.2000
IVECO 240 E 47 14.0 [8210.42M.TCA] 11.1995-12.2002
IVECO 260 E 37 14.0 [8210.42K] 01.1993-12.2001
IVECO 260 E 52 17.2 [8280.42S.TCA] 01.1995-07.2000
IVECO 340 E 42 14.0 [8210.42L] 01.1995-12.2000
IVECO 410 E 37 14.0 [8210.42K] 01.1994-11.2000
IVECO 440 E 37 14.0 [8210.42K] 01.1993-11.2000
IVECO 440 E 52 17.2 [8280.42S.TCA] 01.1993-12.2000
IVECO 8210 13.0 [8210.22.170] 01.1990-12.2000
IVECO 8210 13.8 [8210..] 03.1985-12.2000
IVECO 8210 13.9 [8210M22.10] 01.1990-12.2000
IVECO 8217 13.8 [8217.32.036] 01.1991-12.2001
IVECO 8281 17.0 [8281.22..,42..] 03.1990-12.2002
IVECO 8281 17.0 [8281M32.10] 01.1990-12.2000
IVECO 8281 17.2 [8281.02..,22..] 06.1983-12.2005
IVECO 8282 17.0 [8282.02..,22..] 01.1992-12.2002
0001411017BOSCH
0001411026BOSCH
0001417006BOSCH
0001417074BOSCH
04684280KHD
04782803KHD
06860EFEL
0986013440BOSCH
0986018810BOSCH
10564KUHNER
10564PKUHNER
10564RKUHNER
110213CARGO
110532CARGO
1516767RDAF
1516774RDAF
20401037BNREAL
20401037ELREAL
20401240REAL
20401936BNREAL
20401936ELREAL
20401936ITREAL
220236ERA
220297ERA
22.0564LAUBER
22703EFEL
255905KUHNER
255905PKUHNER
28.0564LAUBER
28.0564MLAUBER
2995112IVECO
2997242IVECO
2997243IVECO
2997245IVECO
2997383IVECO
30118NWAI / TRANSPO
330716LOGISTIK
331992LOGISTIK
33531EAI
33596EAI
4179626FIAT
42498146IVECO
42498146FIAT
42498147IVECO
438043VALEO
45-1123ELSTOCK
455524VALEO
4684280FIAT
4684280KHD
4732241FIAT
4732242FIAT
4732242IVECO
4782802FIAT
4782803FIAT
4782803SCANIA
4936699FIAT
4936699IVECO
500325102FIAT
500325102IVECO
500325103IVECO
500325103URAL INDIA
6010639.0SANDO
6010639.3SANDO
6010639.5SANDO
6010730.0SANDO
6010730.3SANDO
81467007MONARK
8212986POWERMAX
860545GBPRESTOLITE
8705CEVAM
8813440FRIESEN
8EA726189-001HELLA
ANM15660XANDEL
CGB-11605AINDE
CS526HC PARTS
CS564HC PARTS
CST10639ASCASCO
CST10639ESCASCO
CST10639ISCASCO
CST10730ASCASCO
CST10730ESCASCO
DRS3440DELCO
F032110213CARGO
F032110532CARGO
IM606AVF
LRS00778LUCAS
LRS778LUCAS
MAV1207SIOM
MAV126390SIOM
MAV2040SIOM
PTC-4069POWER TRUCK
R20.24ELMOT
S0008AS-PL
STR1082ELECTROLOG
STR50052WOODAUTO
STRL0873EFFE
STRL3093EFFE
S0008
