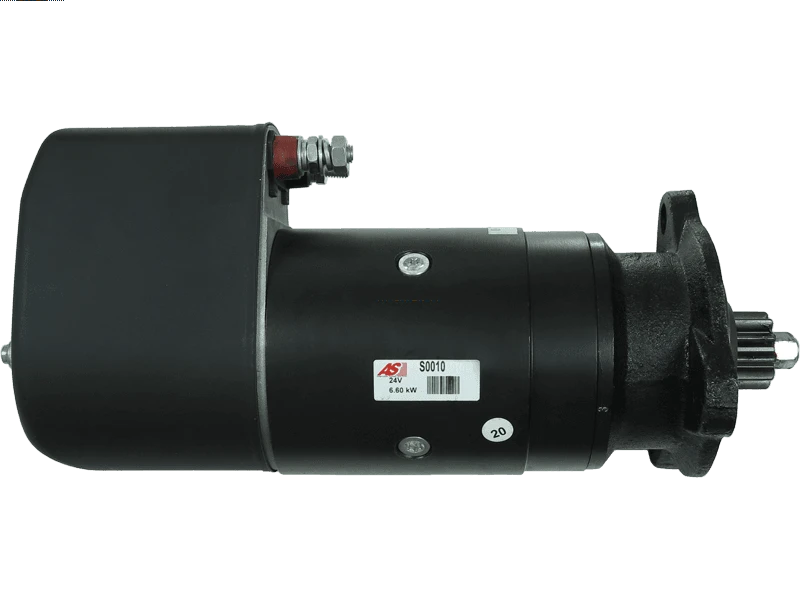

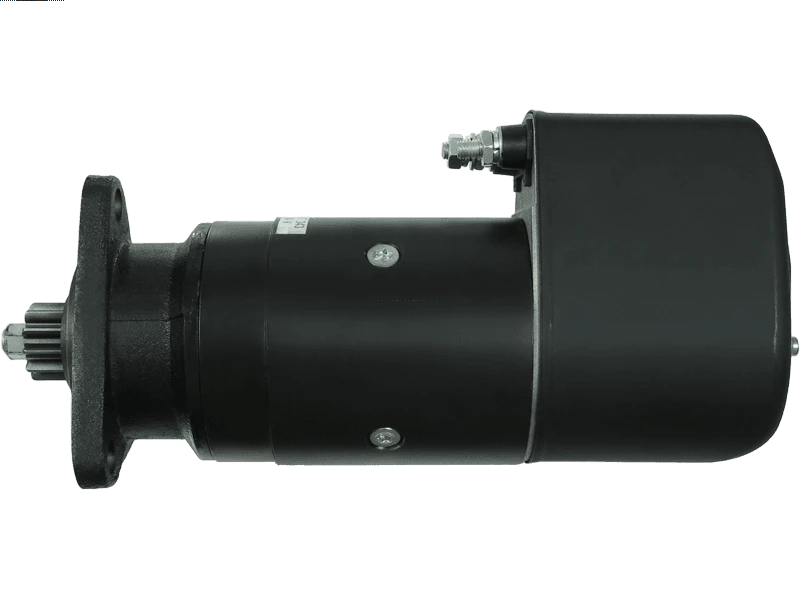

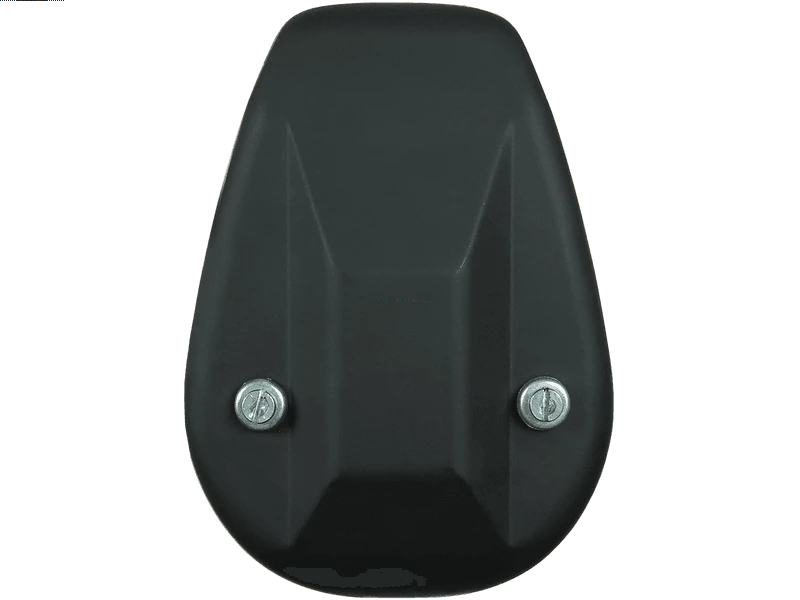

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 883.00 including GST
NZ$ 767.83 excluding GST
or four payments of $220.75
with
Learn More
each
S0010
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417043Associated Numbers
0001417043 0986017250 101040 110214 18393N 20401646BN 20401646EL 28.1040 28.1040M 28.3007 33599 349576 45-0399 571454 6010646 859022 860548 860548GB 8754 8817250 8EA737288-001 901.204.113 AES8178 CS1040 CST10646AS CST10646ES DRS7250 EAA-121419 IM643 R22.13 STR2395Specifications
| Insulated Earth | Yes |
| Kilowatt | 6.60 kW |
| Length (L.1) | 405 mm |
| Mount Hole Center - Center (O.1) | 125 mm |
| Mount Hole Center - Center (O.2) | 125 mm |
| Mount Hole Center - Center (O.3) | 125 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 37 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCANIA | 112 H/280 11.0 | 01.1981-12.1986 | |
| SCANIA | 112 H/305 11.0 | 01.1981-12.1986 | |
| SCANIA | 112 M/305 11.0 | 01.1981-12.1986 | |
| SCANIA | BK112 11.0 | 05.1982- | |
| SCANIA | BR112 11.0 | 09.1978- | |
| SCANIA | F112 | 10.1981- | |
| SCANIA | K112 | 06.1982- |
Reference Information
| 0001417043 | BOSCH |
| 0986017250 | BOSCH |
| 101040 | KUHNER |
| 110214 | CARGO |
| 1516654R | DAF |
| 1516832R | DAF |
| 163394 | SCANIA |
| 18393N | WAI / TRANSPO |
| 20401646BN | REAL |
| 20401646EL | REAL |
| 220239 | ERA |
| 22710 | EFEL |
| 279932 | SCANIA |
| 28.1040 | LAUBER |
| 28.1040M | LAUBER |
| 28.3007 | LAUBER |
| 33599 | EAI |
| 349576 | SCANIA |
| 349577 | SCANIA |
| 45-0399 | ELSTOCK |
| 571454 | SCANIA |
| 6010646.0 | SANDO |
| 6010646.3 | SANDO |
| 859022 | PRESTOLITE |
| 860548 | PRESTOLITE |
| 860548GB | PRESTOLITE |
| 8754 | CEVAM |
| 8817250 | FRIESEN |
| 8EA737288-001 | HELLA |
| 901.204.113.010 | PSH |
| 901.204.113.016 | PSH |
| AES8178 | AUTOELECTRO |
| ANM19470X | ANDEL |
| CGB-11643 | AINDE |
| CS1040 | HC PARTS |
| CST10646AS | CASCO |
| CST10646ES | CASCO |
| DRS7250 | DELCO |
| F032110214 | CARGO |
| IM643 | AVF |
| MAV1213 | SIOM |
| PRSF037 | 3EFFE |
| R22.13 | ELMOT |
| S0010 | AS-PL |
| STM521 | ROLLCO |
| STR1434 | ELECTROLOG |
| STR2395 | WOODAUTO |
| STRF037 | 3EFFE |
Video/Publications
