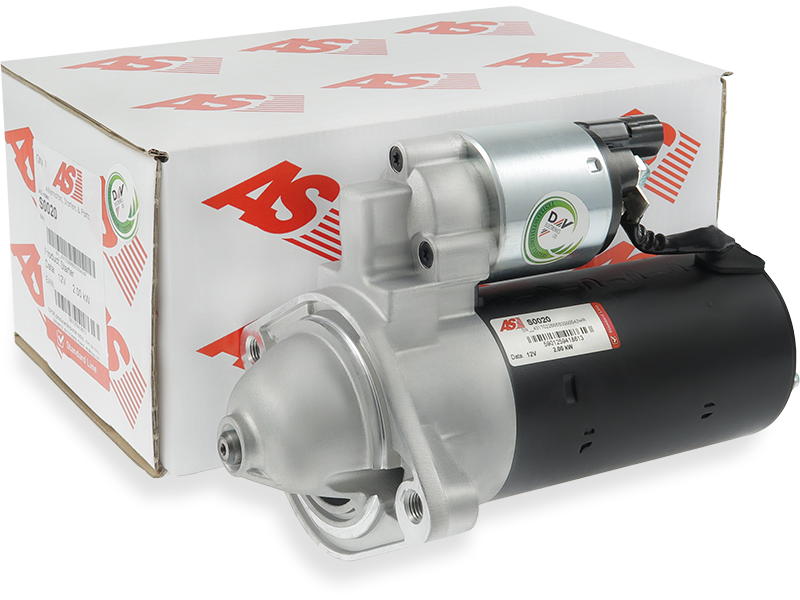

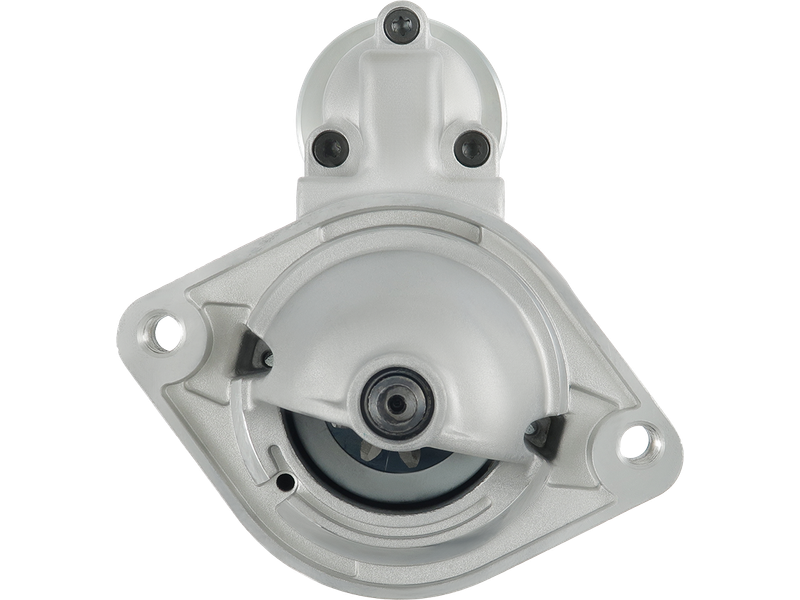

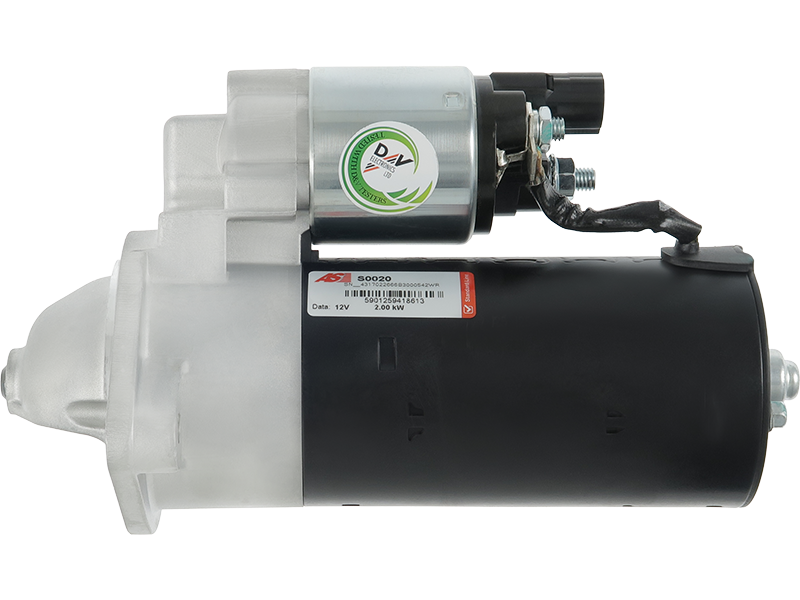

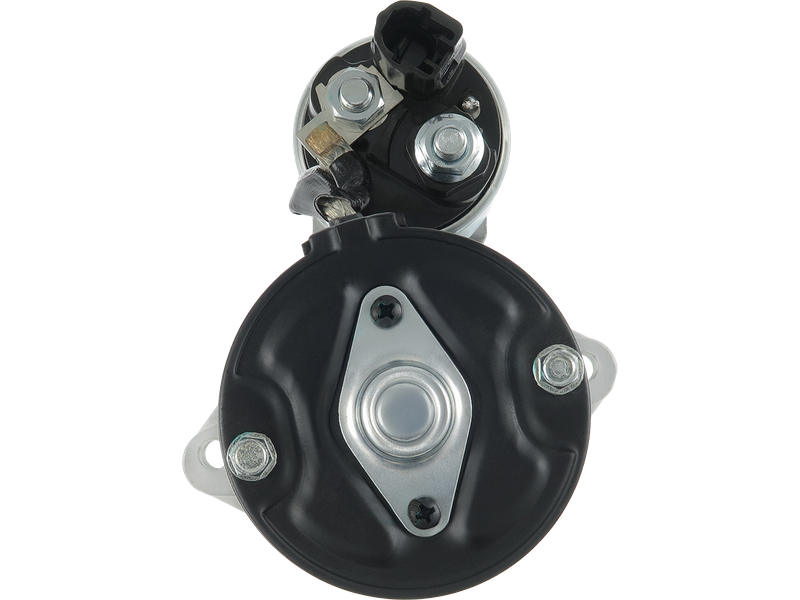

S0020 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 251.45 including GST

NZ$ 218.65 excluding GST



or four payments of $62.86 with
Afterpay Payment Offer Learn More

each
S0020
1
Purchase Qty:

0001110132
0001110132 063280077010 063521101320 063721135010 0986018680 112006 11941 190.533.092 201135 20401311 20432203 20510182 220094 25-2477 28100-0B010 28100-0B020 28100-0G010 28100-0G020 28100-0G021 31183N 458514 6.0051.9 6010113 6040302 88212897 8EA011610-631 8EA737543-001 943211351010 944280186800 9521 BOS0001110132 CST10113 CST10113AS CST10113ES CST10113GS CST10113OS CST10113RS CST40302 CST40302AS CST40302ES CST40302GS CST40302OS CST40302RS DENDSN950 DRS8680 DS9790 DSN950 EAA-121019 J5212117 JS1135 LRS02099 MRS18680 MSN2148 MSN8077 MSRC1135 RAS39791 S0020 S1049B STB1135 STB9135 STM761 STN1135 STR50267 SRJ142 Bosch show 0001110140 ruil 0986018681 11040257 EuroTec 11040607 Cargo EAI 190533092 PSH 252477 Elstock 281000G010 Toyota 281000G020 281000G021 28100B020 28100OG010 28100OG020 335089092 DRI 428000072 Denso 4280000720 4280000721 4280000722 4280000723 4280004350 458260 Valeo 600000170110 Magneti Marelli 63280077010 726122 8018680 Friesen 8018680F 8EA737543001 Hella 918680 EDR CEVAM ATS375 ATK ATS910 F042202533 F042S00274 HJS1135 HC J5212124 LRT182 Lucas N5212113 Nipparts N5212124 OSM11157 Optimum SP4568 Spidan STR8284 Unipoint STRH143 T521A109 NPS
Kilowatt2 kW
Length (L.1)251 mm
Mount Hole Center - Center (O.1)115 mm
Mount Hole Diameter (C.1)M10x1.25 mm
Mount Hole Diameter (C.2)M10x1.25 mm
No./Mount holes2 qty
No./Mount holes with thread2 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
OEM ProductNo
Pinion at Rest (B)3 mm
Product LineStandard Line
Product TypeBrand new
RotationCW
Spigot Diameter (A)74 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
TOYOTA Avensis 2.0 D [1CD-FTV] 09.2002-02.2003
TOYOTA Avensis 2.0 D-4D [1CD-FTV] 09.2002-02.2003
TOYOTA Avensis 2.0 D-4D [1CD-FTV] 10.1999-02.2003
TOYOTA Avensis 2.0 TD [2C-TE] 09.1997-02.2003
TOYOTA Corolla 2.0 D-4D [1CD-FTV] 01.2002-02.2007
TOYOTA Corolla 2.0 D-4D [1CD-FTV] 01.2002-12.2006
TOYOTA Corolla 2.0 D-4D [1CD-FTV] 04.2004-02.2007
TOYOTA Corolla 2.0 D-4D [1CD-FTV] 06.2004-07.2007
TOYOTA Corolla 2.0 D-4D Verso [1CD-FTV] 04.2004-
0001110132BOSCH
0986018680BOSCH
1019852FORD
1057811FORD
112006CARGO
11941EAI
190.533.092.010PSH
190.533.092.215PSH
201067VALEO
20401311BNREAL
20401311OEREAL
20401311RCREAL
25-2477ELSTOCK
2810001020TOYOTA
2810008010TOYOTA
281000B010TOYOTA
28100-0B010TOYOTA
28100-0B010ATOYOTA
281000B020TOYOTA
28100-0B020TOYOTA
28100-0G010TOYOTA
28100-0G020TOYOTA
28100-0G021TOYOTA
28100OG020TOYOTA
31183NWAI / TRANSPO
428000-0720DENSO
428000-4350DENSO
458514VALEO
5010077MEAT & DORIA
6010113.0SANDO
6010113.1SANDO
6010113.2SANDO
7275964FORD
8EA011610-631HELLA
8EA737543-001HELLA
9521CEVAM
AES1282AUTOELECTRO
ANM10900XANDEL
ASM1363APEC
BOS0001110132WOODAUTO
CST10113ASCASCO
CST10113GSCASCO
CST10113RSCASCO
DRS7500DELCO
DRS8680DELCO
DRS8680XDELCO
DS6460DELCO
DS8610DELCO
F032112006CARGO
J5212117HERTH+BUSS
JS1135HC PARTS
LRS02099LUCAS
LRS2099LUCAS
MAV121130ASIOM
MAV121130RSIOM
MAV423020SIOM
MAV423020ASIOM
NPANSM1363NAPA
PRSL0543EFFE
PRSL054B3EFFE
RAS39791DELCO
S0020AS-PL
S1049BPRESTOLITE
S130.791PSH
STA0125RBOVEZ
STB1135KRAUF
STM761ROLLCO
STR1514ELECTROLOG
STR50267WOODAUTO
STRL0543EFFE
STRL054B3EFFE
STRL054NE3EFFE
STRL054U3EFFE
STX200027STARDAX
STX200027RSTARDAX
STX200089STARDAX
STX200089RSTARDAX
S0020
