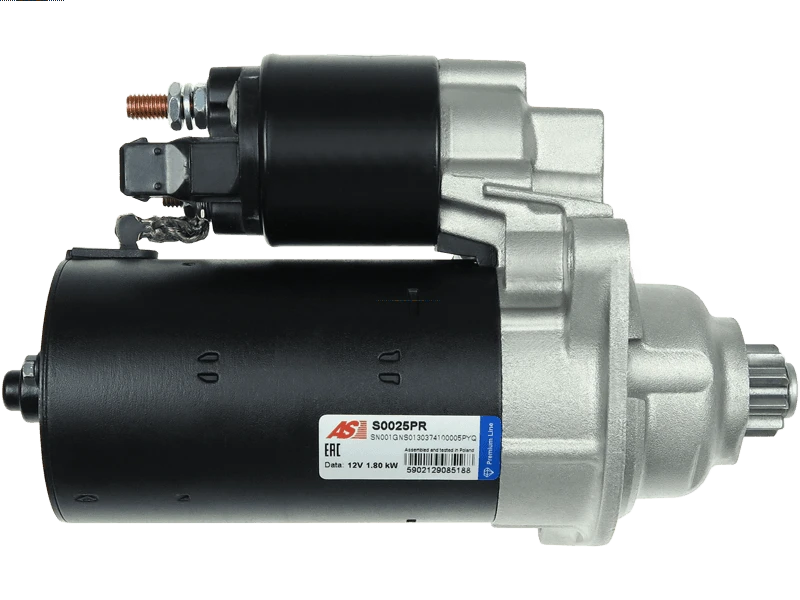

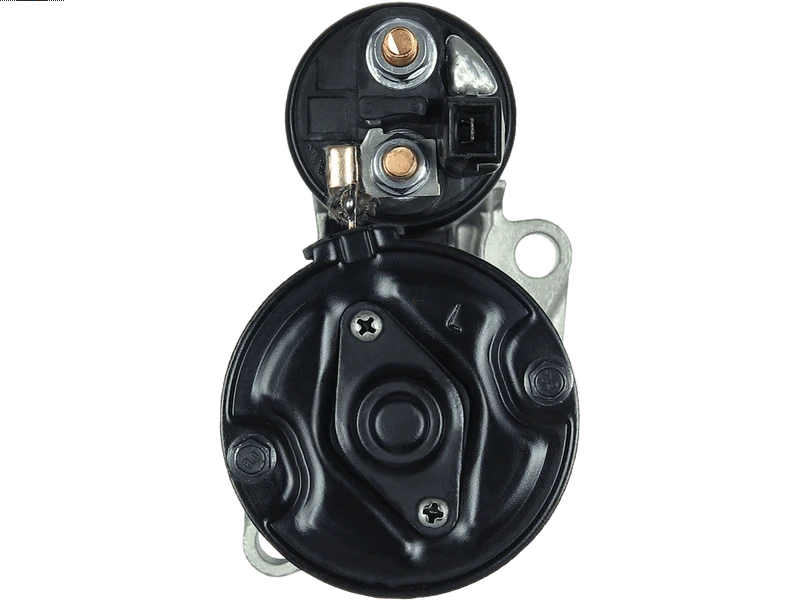

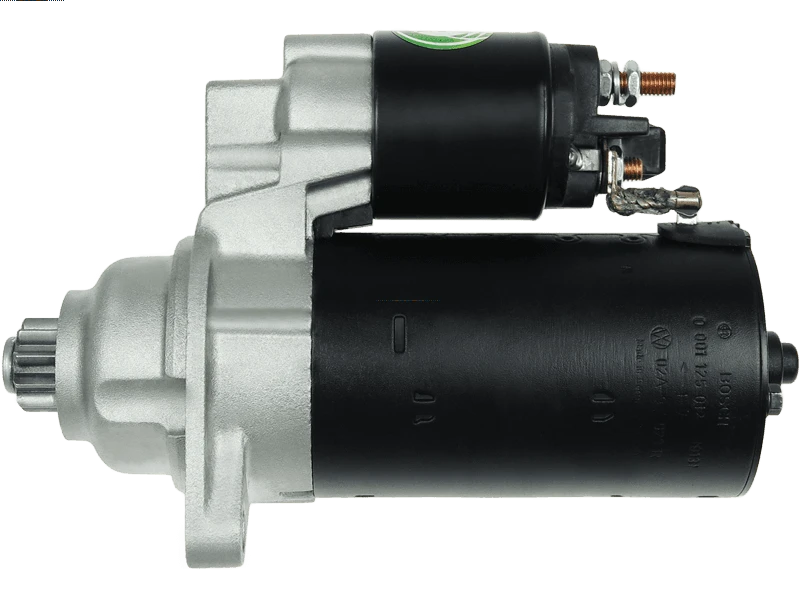

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 234.90 including GST
NZ$ 204.26 excluding GST
or four payments of $58.73
with
Learn More
each
S0025PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001124001 0001124002 0001125007 0001125008 0001125012 0001125013 0001125042 0001125043 02A911023J 02A911023JX 02A911023R 02A911023RX 02A911024 02A911024D 02A911024DX 02A911024X 063521250420 063720012010 063720974010 0986017460 10974 10974V 11.131.055 111900 115503 11641 1516828R 17755N 17755R 20500977 20510179 25-2021 300.525.102 3034 35258640 42016980 6010125 72736011 88212115 8EA011610-561 8EA737147-001 91-15-7117 91-15-7117N 9141414 943209741010 943253108010 944280169800 944280174600 95VW-11000-CB 97VW-11000-AA A188253A AES9177 AZE2624 CS974 CST10125 CST10125AS CST10125ES CST10125GS CST10125OS CST10125RS DRS6980 DRS7460 DS8090 DS8570 GS125012-A IS1041 LRS00977 LRS977 MQS974 MRS17460 MS383 MSN2112 MSR5308 NES9177 R97VW-11000-AA S-6197 S1047B SG0078 STB0974 STR50027 STV0974 STV8974Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 111 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 52 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A2 1.4 TDi | [AMF] | 02.2000-08.2005 |
| AUDI | A2 1.4 TDi | [ATL] | 11.2003-08.2005 |
| AUDI | A2 1.4 TDi | [BHC] | 05.2003-08.2005 |
| AUDI | A3 1.9 TDi | [AGR] | 09.1996-07.2001 |
| AUDI | A3 1.9 TDi | [AHF] | 01.1997-08.2000 |
| AUDI | A3 1.9 TDi | [ALH] | 09.1996-07.2001 |
| AUDI | A3 1.9 TDi | [ASV] | 09.1999-07.2001 |
| AUDI | A3 1.9 TDi | [ASZ] | 08.2000-05.2003 |
| AUDI | A3 1.9 TDi | [ATD] | 10.2000-05.2003 |
| AUDI | A3 1.9 TDi | [AXR] | 10.2000-05.2003 |
| FORD | Galaxy 1.9 TDi | [1Z] | 03.1995- |
| FORD | Galaxy 1.9 TDi | [AFN] | 08.1997-04.2000 |
| FORD | Galaxy 1.9 TDi | [AHU] | 03.1995- |
| FORD | Galaxy 1.9 TDi | [ANU] | 03.1995- |
| FORD | Galaxy 1.9 TDi | [AVG] | 08.1997-04.2000 |
| FORD | Galaxy 2.0 i | [NSE] | 11.1995- |
| FORD | Galaxy 2.3 | [E5SA] | 01.1997- |
| FORD | Galaxy 2.3 | [Y5B] | 01.1997- |
| SEAT | Alhambra 1.9 TDi | [1Z] | 04.1996- |
| SEAT | Alhambra 1.9 TDi | [AFN] | 08.1996-06.2000 |
| SEAT | Alhambra 1.9 TDi | [AHU] | 04.1996- |
| SEAT | Alhambra 1.9 TDi | [AVG] | 08.1996-06.2000 |
| SEAT | Arosa 1.4 TDi | [AMF] | 01.2000-06.2004 |
| SEAT | Cordoba 1.4 TDi | [AMF] | 10.2002- |
| SEAT | Cordoba 1.9 TDi | [1Z] | 08.1996-06.1999 |
| SEAT | Cordoba 1.9 TDi | [AFN] | 03.1997-06.1999 |
| SEAT | Cordoba 1.9 TDi | [AFN] | 07.1997-06.1999 |
| SEAT | Cordoba 1.9 TDi | [AGR] | 06.1999- |
| SEAT | Cordoba 1.9 TDi | [AGR] | 06.1999-10.2002 |
| SEAT | Cordoba 1.9 TDi | [AHU] | 06.1999-10.2002 |
| SEAT | Cordoba 1.9 TDi | [AHU] | 08.1996-06.1999 |
| SEAT | Cordoba 1.9 TDi | [ALH] | 06.1999- |
| SEAT | Cordoba 1.9 TDi | [ALH] | 06.1999-10.2002 |
| SEAT | Cordoba 1.9 TDi | [ASK] | 06.1999- |
| SEAT | Cordoba 1.9 TDi | [ASK] | 06.1999-10.2002 |
| SEAT | Cordoba 1.9 TDi | [ASV] | 06.1999- |
| SEAT | Cordoba 1.9 TDi | [ASV] | 06.1999-10.2002 |
| SEAT | Cordoba 1.9 TDi | [ATD] | 09.2002- |
| SEAT | Ibiza 1.4 TDi | [AMF] | 05.2002- |
| SEAT | Ibiza 1.9 TDi | [1Z] | 08.1996-08.1999 |
| SEAT | Ibiza 1.9 TDi | [AFN] | 02.1997-08.1999 |
| SEAT | Ibiza 1.9 TDi | [AGR] | 08.1999-02.2002 |
| SEAT | Ibiza 1.9 TDi | [AHU] | 08.1996-08.1999 |
| SEAT | Ibiza 1.9 TDi | [ALH] | 08.1999-02.2002 |
| SEAT | Ibiza 1.9 TDi | [ASK] | 08.1999-02.2002 |
| SEAT | Ibiza 1.9 TDi | [ASV] | 08.1999-02.2002 |
| SEAT | Ibiza 1.9 TDi | [ATD] | 02.2002- |
| SEAT | Ibiza 1.9 TDi | [AXR] | 05.2005- |
| SEAT | Ibiza 1.9 TDi | [BMT] | 09.2006- |
| SEAT | Inca 1.9 TDi | [ALH] | 09.1996- |
| SEAT | Leon 1.9 TDi | [AGR] | 11.1999- |
| SEAT | Leon 1.9 TDi | [AHF] | 11.1999- |
| SEAT | Leon 1.9 TDi | [ALH] | 11.1999- |
| SEAT | Leon 1.9 TDi | [ASV] | 11.1999- |
| SEAT | Leon 1.9 TDi | [AXR] | 10.2005- |
| SEAT | Toledo 1.9 TDi | [1Z] | 08.1995-03.1999 |
| SEAT | Toledo 1.9 TDi | [AFN] | 11.1996-03.1999 |
| SEAT | Toledo 1.9 TDi | [AGR] | 04.1999-05.2006 |
| SEAT | Toledo 1.9 TDi | [AHF] | 04.1999-05.2006 |
| SEAT | Toledo 1.9 TDi | [AHU] | 08.1995-03.1999 |
| SEAT | Toledo 1.9 TDi | [ALH] | 04.1999-05.2006 |
| SEAT | Toledo 1.9 TDi | [ASV] | 04.1999-05.2006 |
| SKODA | Fabia 1.4 TDi | [AMF] | 04.2003- |
| SKODA | Fabia 1.9 TDi | [ATD] | 01.2000- |
| SKODA | Fabia 1.9 TDi | [ATD] | 04.2000-10.2005 |
| SKODA | Fabia 1.9 TDi | [ATD] | 09.2000- |
| SKODA | Fabia 1.9 TDi | [AXR] | 10.2005- |
| SKODA | Fabia 1.9 TDi | [AXR] | 10.2005-12.2007 |
| SKODA | Octavia 1.9 TDi | [AGR] | 07.1998- |
| SKODA | Octavia 1.9 TDi | [AGR] | 09.1996- |
| SKODA | Octavia 1.9 TDi | [AHF] | 07.1998- |
| SKODA | Octavia 1.9 TDi | [AHF] | 08.1997-09.2004 |
| SKODA | Octavia 1.9 TDi | [ALH] | 07.1998- |
| SKODA | Octavia 1.9 TDi | [ASV] | 07.1998- |
| SKODA | Octavia 1.9 TDi | [ASV] | 08.2000-09.2004 |
| SKODA | Octavia 1.9 TDi | [ATD] | 08.2000- |
| SKODA | Octavia 1.9 TDi | [AXR] | 08.2000- |
| SKODA | Octavia 1.9 TDi | [AXR] | 10.2005- |
| SKODA | Octavia 1.9 TDi 4x4 | [AGR] | 11.1999-09.2000 |
| SKODA | Octavia 1.9 TDi 4x4 | [ATD] | 09.2000- |
| VW | Bora 1.9 TDi | [AGR] | 07.2004-05.2005 |
| VW | Bora 1.9 TDi | [AGR] | 10.1998-06.2001 |
| VW | Bora 1.9 TDi | [AHF] | 05.1999-06.2001 |
| VW | Bora 1.9 TDi | [AHF] | 10.1998-06.2001 |
| VW | Bora 1.9 TDi | [ALH] | 10.1998-06.2001 |
| VW | Bora 1.9 TDi | [ASV] | 05.1999-06.2001 |
| VW | Bora 1.9 TDi | [ASV] | 10.1998-06.2001 |
| VW | Bora 1.9 TDi | [ATD] | 09.2000-05.2005 |
| VW | Bora 1.9 TDi | [AXR] | 09.2000-05.2005 |
| VW | Bora 1.9 TDi 4motion | [AGR] | 02.1999-06.2001 |
| VW | Bora 1.9 TDi 4motion | [ALH] | 02.1999-06.2001 |
| VW | Bora 1.9 TDi 4motion | [ATD] | 09.2000-05.2005 |
| VW | Bora 1.9 TDi 4 Motion | [AGR] | 02.1999-06.2001 |
| VW | Bora 1.9 TDi 4 Motion | [ALH] | 02.1999-06.2001 |
| VW | Bora 1.9 TDi 4 Motion | [ATD] | 09.2000-05.2005 |
| VW | Cabrio 2.0 | [ABA] | 01.1995-01.1996 |
| VW | Cabrio 2.0 | [ABA] | 01.1995-12.1995 |
| VW | Cabrio 2.0 | [ABA] | 01.1996-01.1997 |
| VW | Cabrio 2.0 Highline | [ABA] | 01.1997-12.1997 |
| VW | Caddy 1.9 TDi | [1Z] | 09.1997-01.2004 |
| VW | Caddy 1.9 TDi | [AHU] | 10.1996-01.2004 |
| VW | Caddy 1.9 TDi | [AHU] | 12.1996-01.2004 |
| VW | Caddy 1.9 TDi | [ALE] | 10.1996-01.2004 |
| VW | Caddy 1.9 TDi | [ALH] | 09.1997-01.2004 |
| VW | Caddy 1.9 TDi | [ALH] | 10.1996-01.2004 |
| VW | Eurovan 2.5 | [ACU] | 01.1996- |
| VW | Eurovan 2.8 | [AES] | 01.1999- |
| VW | Eurovan 2.8 | [AES] | 01.2000-12.2000 |
| VW | Golf III 1.9 SDi | [AEY] | 07.1995-08.1997 |
| VW | Golf III 1.9 TDi | [1Z] | 03.1994-04.1999 |
| VW | Golf III 1.9 TDi | [1Z] | 07.1995-04.1999 |
| VW | Golf III 1.9 TDi | [1Z] | 08.1995-05.1998 |
| VW | Golf III 1.9 TDi | [1Z] | 09.1993-08.1997 |
| VW | Golf III 1.9 TDi | [AAZ] | 01.1996-12.1996 |
| VW | Golf III 1.9 TDi | [AAZ] | 07.1993-04.1999 |
| VW | Golf III 1.9 TDi | [AFN] | 04.1996-04.1999 |
| VW | Golf III 1.9 TDi | [AFN] | 04.1996-08.1997 |
| VW | Golf III 1.9 TDi | [AFN] | 06.1998-06.2002 |
| VW | Golf III 1.9 TDi | [AFN] | 07.1996-05.1998 |
| VW | Golf III 1.9 TDi | [AHU] | 01.1997-12.1997 |
| VW | Golf III 1.9 TDi | [AHU] | 03.1994-04.1999 |
| VW | Golf III 1.9 TDi | [AHU] | 07.1995-04.1999 |
| VW | Golf III 1.9 TDi | [AHU] | 08.1995-05.1998 |
| VW | Golf III 1.9 TDi | [AHU] | 09.1993-08.1997 |
| VW | Golf III 1.9 TDi | [ALE] | 03.1994-04.1999 |
| VW | Golf III 1.9 TDi | [ALE] | 05.1997-12.1997 |
| VW | Golf III 1.9 TDi | [ALE] | 07.1995-04.1999 |
| VW | Golf III 1.9 TDi | [ALE] | 08.1995-05.1998 |
| VW | Golf III 1.9 TDi | [ALH] | 01.1999-12.1999 |
| VW | Golf III 1.9 TDi | [AVG] | 06.1998-06.2002 |
| VW | Golf III 1.9 TDi Syncro | [1Z] | 03.1995-07.1996 |
| VW | Golf III 1.9 TDi Syncro | [AHU] | 08.1996-12.1997 |
| VW | Golf III 1.9 TDi Syncro | [ALE] | 05.1996-12.1997 |
| VW | Golf III 1.9 Turbo | [ALH] | 01.2000-12.2000 |
| VW | Golf III 1.9 Turbo | [ALH] | 01.2001-12.2001 |
| VW | Golf IIII 1.9 Turbo | [ALH] | 01.2001-12.2001 |
| VW | Golf IV 1.9 TDi | [AGR] | 05.1999-09.2002 |
| VW | Golf IV 1.9 TDi | [AGR] | 10.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [AHF] | 05.1999-06.2001 |
| VW | Golf IV 1.9 TDi | [AHF] | 08.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [AHU] | 04.1998-06.2000 |
| VW | Golf IV 1.9 TDi | [ALE] | 04.1998-12.2001 |
| VW | Golf IV 1.9 TDi | [ALH] | 05.1999-05.2005 |
| VW | Golf IV 1.9 TDi | [ALH] | 05.1999-05.2006 |
| VW | Golf IV 1.9 TDi | [ALH] | 10.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [ASV] | 05.1999-06.2001 |
| VW | Golf IV 1.9 TDi | [ASV] | 08.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [ATD] | 09.2000- |
| VW | Golf IV 1.9 TDi | [ATD] | 09.2000-06.2005 |
| VW | Golf IV 1.9 TDi | [AXR] | 09.2000- |
| VW | Golf IV 1.9 TDi | [AXR] | 09.2000-06.2005 |
| VW | Golf IV 1.9 TDi 4motion | [AGR] | 05.1999-05.2005 |
| VW | Golf IV 1.9 TDi 4motion | [AGR] | 07.1998-04.2002 |
| VW | Golf IV 1.9 TDi 4motion | [ALH] | 07.1998- |
| VW | Golf IV 1.9 TDi 4motion | [ATD] | 09.2000- |
| VW | Golf IV 1.9 TDi 4motion | [ATD] | 09.2000-06.2005 |
| VW | Golf IV 1.9 TDi 4 Motion | [AGR] | 05.1999-05.2005 |
| VW | Golf IV 1.9 TDi 4 Motion | [AGR] | 07.1998-04.2002 |
| VW | Golf IV 1.9 TDi 4 Motion | [ALH] | 07.1998- |
| VW | Golf IV 1.9 TDi 4 Motion | [ATD] | 09.2000- |
| VW | Golf IV 1.9 TDi 4 Motion | [ATD] | 09.2000-06.2005 |
| VW | Jetta 1.9 TDi | [AAZ] | 01.1996-12.1996 |
| VW | Jetta 1.9 TDi | [AHU] | 01.1997-12.1997 |
| VW | Jetta 1.9 TDi | [AHU] | 01.1998-12.1998 |
| VW | Jetta 1.9 TDi | [ALH] | 01.1999-01.2001 |
| VW | Lupo 1.4 TDi | [AMF] | 01.1999-07.2005 |
| VW | New Beetle 1.9 TDi | [ALH] | 01.1998-06.2004 |
| VW | New Beetle 1.9 TDi | [AXR] | 06.2003- |
| VW | New Beetle 1.9 TDi | [BEW] | 07.2003-09.2010 |
| VW | New Beetle 1.9 TDi | [BSW] | 07.2005- |
| VW | New Beetle 1.9 TDi | [BSW] | 07.2005-09.2010 |
| VW | New Beetle 1.9 Turbo | [ALH] | 01.1998-12.1998 |
| VW | New Beetle 1.9 Turbo | [ALH] | 01.1999-01.2000 |
| VW | New Beetle 1.9 Turbo | [ALH] | 01.2001-12.2001 |
| VW | Passat 1.9 TDi | [1Z] | 01.1996-12.1996 |
| VW | Passat 1.9 TDi | [1Z] | 10.1993-05.1997 |
| VW | Passat 1.9 TDi | [1Z] | 10.1993-08.1996 |
| VW | Passat 1.9 TDi | [AAZ] | 03.1991-05.1997 |
| VW | Passat 1.9 TDi | [AAZ] | 03.1991-08.1996 |
| VW | Passat 1.9 TDi | [AFN] | 03.1996-03.1997 |
| VW | Passat 1.9 TDi | [AFN] | 03.1996-05.1997 |
| VW | Passat 1.9 TDi | [AHU] | 01.1997-12.1997 |
| VW | Passat 1.9 TDi | [AHU] | 06.1997-11.2000 |
| VW | Passat 1.9 TDi | [AHU] | 10.1993-05.1997 |
| VW | Passat 1.9 TDi | [AHU] | 10.1993-08.1996 |
| VW | Polo 1.4 TDi | [AMF] | 10.1999-09.2001 |
| VW | Polo 1.4 TDi | [AMF] | 10.2001- |
| VW | Polo 1.4 TDi | [BAY] | 07.2003- |
| VW | Polo 1.4 TDi | [BAY] | 10.2001- |
| VW | Polo 1.9 TDi | [AFN] | 06.1998-09.2001 |
| VW | Polo 1.9 TDi | [AGR] | 05.1997-09.2001 |
| VW | Polo 1.9 TDi | [AGR] | 10.1999-09.2001 |
| VW | Polo 1.9 TDi | [AHU] | 05.1997-09.2001 |
| VW | Polo 1.9 TDi | [AHU] | 09.1996-08.2000 |
| VW | Polo 1.9 TDi | [ALE] | 11.1997-08.1999 |
| VW | Polo 1.9 TDi | [ALH] | 05.1997-09.2001 |
| VW | Polo 1.9 TDi | [ALH] | 10.1999-09.2001 |
| VW | Polo 1.9 TDi | [ASV] | 06.1998-09.2001 |
| VW | Polo 1.9 TDi | [ATD] | 10.2001- |
| VW | Polo 1.9 TDi | [AXR] | 10.2001- |
| VW | Polo 1.9 TDi | [BMT] | 05.2006- |
| VW | Sharan 1.9 TDi | [1Z] | 09.1995- |
| VW | Sharan 1.9 TDi | [AFN] | 09.1996-04.2000 |
| VW | Sharan 1.9 TDi | [AHU] | 09.1995- |
| VW | Sharan 1.9 TDi | [AVG] | 08.1999-04.2000 |
| VW | Vento 1.9 TDi | [1Z] | 09.1993-09.1998 |
| VW | Vento 1.9 TDi | [AFN] | 04.1996-09.1998 |
| VW | Vento 1.9 TDi | [AHU] | 09.1993-09.1998 |
| VW | Vento 1.9 TDi | [ALE] | 09.1993-09.1998 |
Reference Information
QRS1184 STR79121 0001124001 1029405 CGB-52021 1072559 2A911023RX 726019 063720974010 0001125042-R 390875 PRSL016 ASM1539 DS8570 2A911023JX 42016980 300.521.102.505 2S0008 SX2112 02T911023D 1416238 NPANSM1539 2A911024DX 300.521.102.500 20401521BN MT6297 1669991 331126 1516828R DRS7460X AES1279 111900 1059564 95VW-11000-GA GS125012-A 0001124002 95VW-11000-GC 11010028 8EA011610-561 8EA011610-562 300.525.102.215 11016980 S1047B MQS974 10010125AV ANM19680X 2A911024B 1638120480 CST10125AS MSN2112 2A911024G 5010132 2A911024D 726829 2A911023J 063521250420 455927 6010125.0 943253108010 91-15-7117N 2A911023R 2A911024BX 20401061OE 02A911023RX 97VW-11000-AA AZE2624 0001125042 1025950 AC-CBS0974 AC-CBS1546 C191654A 5015834 17724N 0001125043 S-6197 726029 3034 02A911024BX MS383 1003308 8550505927 726819 438076 LRS977 9141414 300.521.102.210 LES0065 STX200003R 300.521.102.215 10974V 17755N 0001125012 0001125013 300.521.102.395 STR1099 STM547 0986016980 944280174600 SG0078 943209741010 S12BH0027A2 STR0041 R97VW-11000-AA 6010160.1 LRS00977 6010160.0 D7R130 02A911024X DRS7460 MRS17460 0001125007 10974 0001125008 8EA737147-001 20510179 02A911023JX 2A911024X CGB-26980 CST10160GS 098911023 RNL1746 1007765 5010360 1005821744 02A911024 115503 DS8090 02A911024DX LRT00179 CS974 10010160AV 3849 1012221 MAV172100 02A911024B 455939 02A911024D 2A911024 02A911024G STRL016 10440757 063720012010 25-2021 944280169800 95VW-11000-CC MAV6420 95VW-11000-CB DRS6980 02A911023R 101570 300.521.102.010 300.525.102.010 97VW-11000-A 02A911023J 91-15-7117 1012395 02A911024GX 311055102 103629 220180 20401061BN 910003EGT 220181 20500977 0986017460 88212115 300.521.102.000 011-001-000009R 11641 LRT179 STV8974 10010160OV NES9177 CST10160AS CS1546 MSR5308 S12BH0245A2 1986S00810 BST2355 STR50027 STV0974 AES9177 A188253A 8EA012080-211 STM1383 STA0004R 2A911024GX 17755RVideo/Publications
S0025PRView your shopping basket or Browse other items in Starter Motors.
