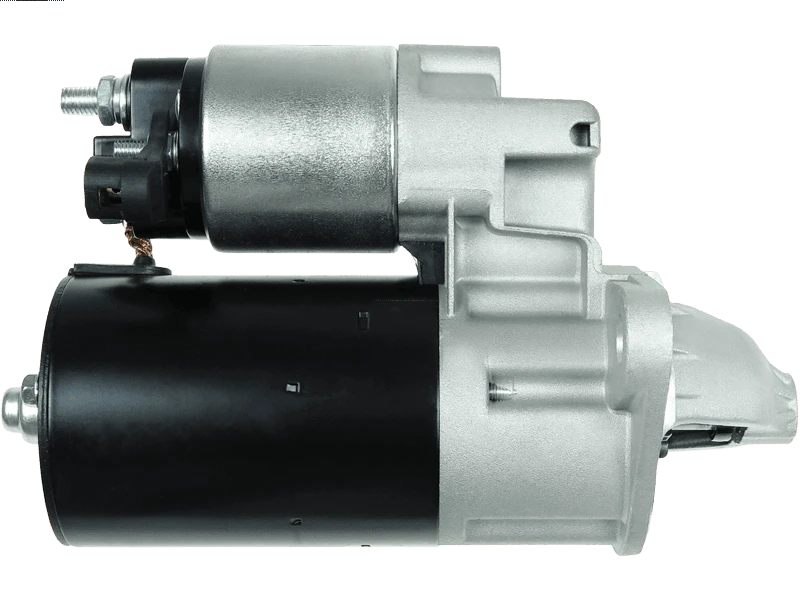

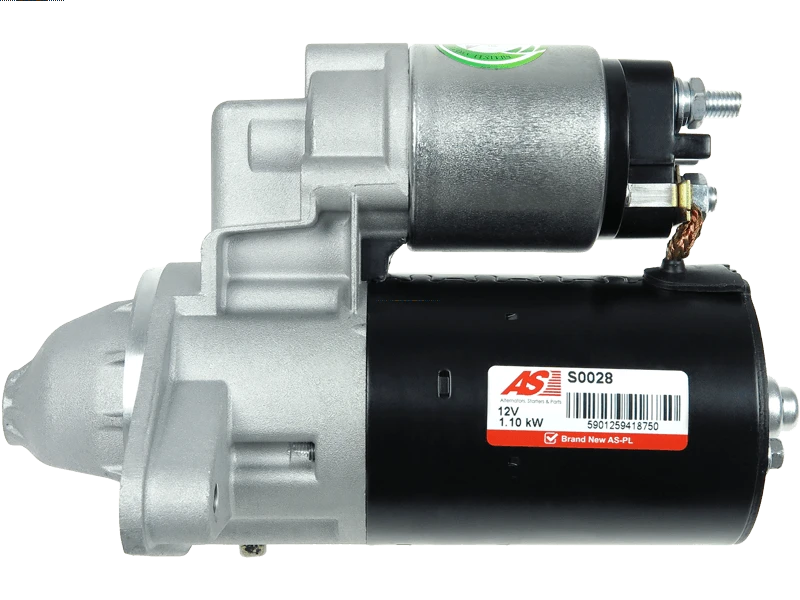

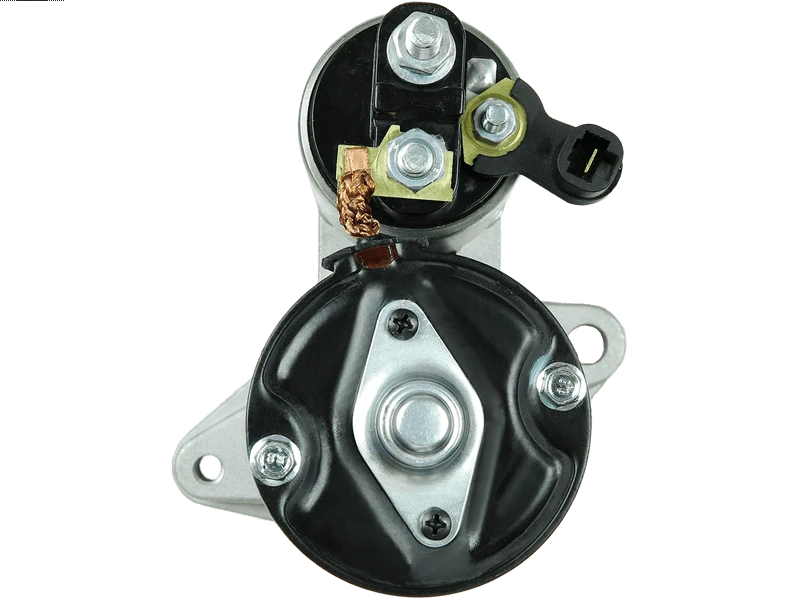

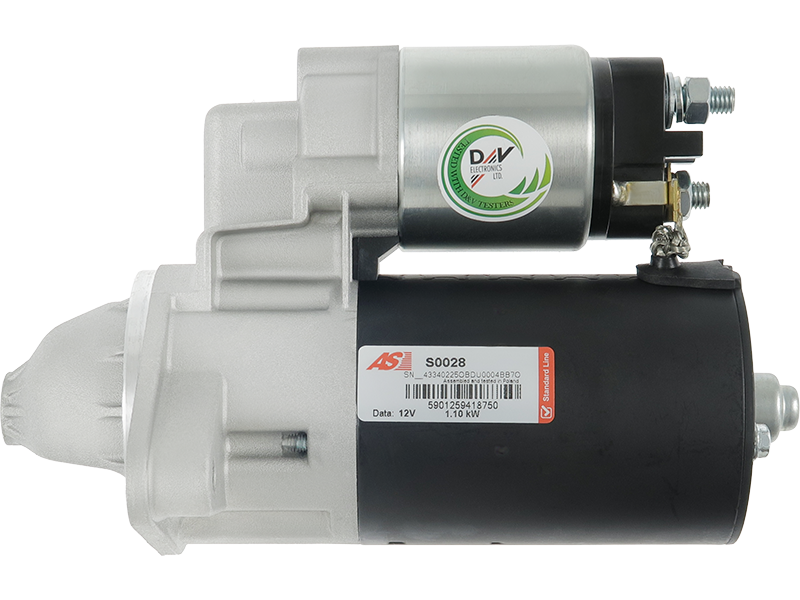

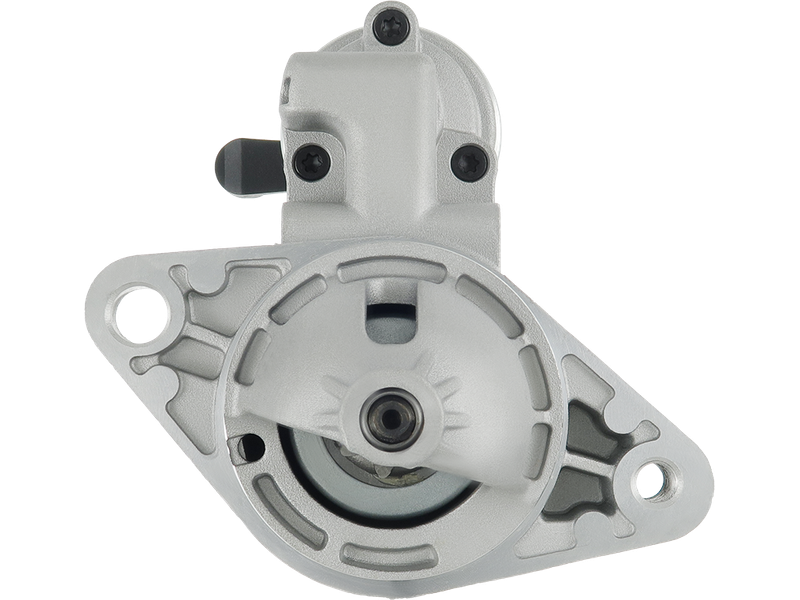

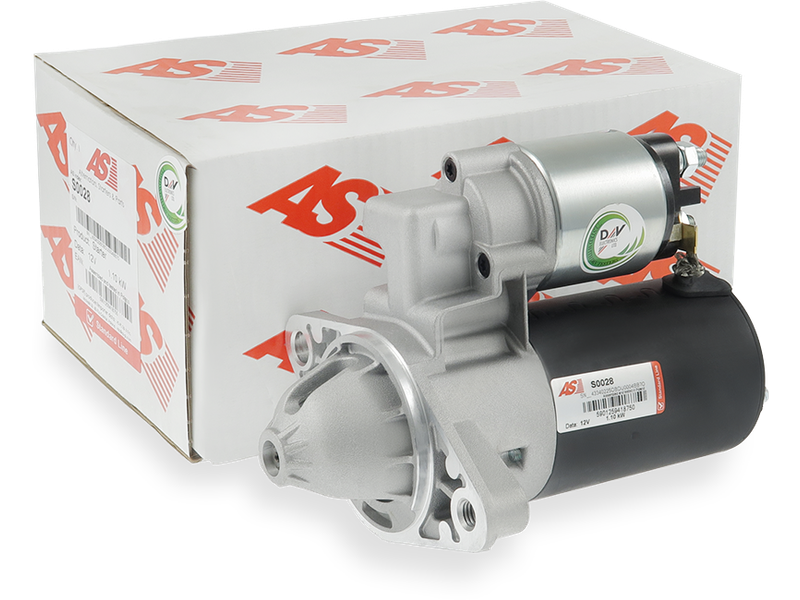

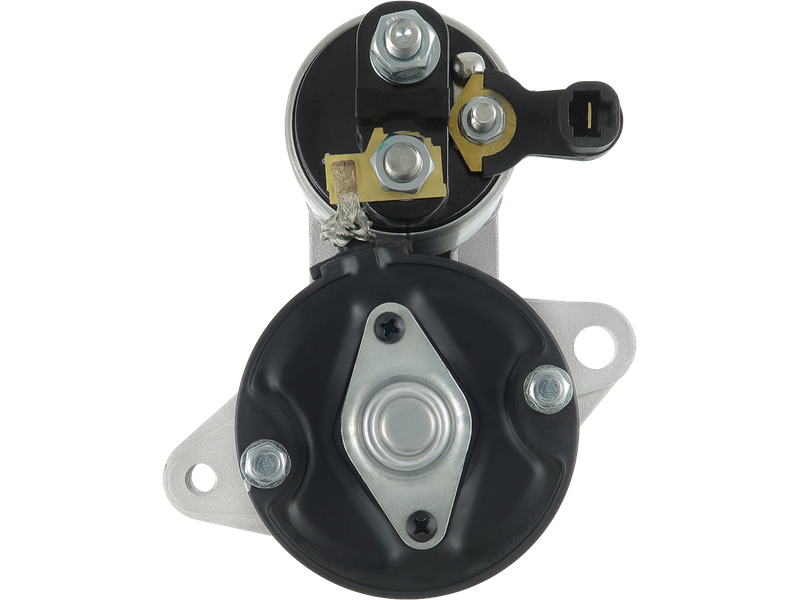

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 255.23 including GST
NZ$ 221.94 excluding GST
or four payments of $63.81
with
Learn More
each
S0028
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107031Associated Numbers
0001107031 0001107049 0986019370 10990 111396 17560N 17560R 22.0990 25-2263 4557468 4793110 8019370 8213115 88213115 8EA737239-001 9007045009 9007045020 AES2229 CS990 DRS5178 DRZ5178 EAA-121360 LRT00229 S1035B SS510 STR50229Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 216 mm |
| Mount Hole Center - Center (O.1) | 120.50 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 9 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Neon 2.0 16V | [420H] | 06.1994-08.1999 |
| CHRYSLER | Stratus 2.0 16V | 12.1995- | |
| CHRYSLER | Stratus 2.0 LE | [C00] | 01.1997-12.1997 |
| DODGE | Neon 2.0 16V | 06.1994- | |
| DODGE | Stratus 2.0 16V | 12.1995- | |
| PLYMOUTH | Breeze 2.0 16V | 12.1995- | |
| PLYMOUTH | Neon 2.0 16V | 05.1994-12.1999 |
Reference Information
| 0001107031 | BOSCH |
| 0001107049 | BOSCH |
| 04793210 | CHRYSLER |
| 04793210AB | CHRYSLER |
| 0986019370 | BOSCH |
| 10990 | KUHNER |
| 10990R | KUHNER |
| 111396 | CARGO |
| 17560N | WAI / TRANSPO |
| 17560R | WAI / TRANSPO |
| 22.0990 | LAUBER |
| 25-2263 | ELSTOCK |
| 4557466 | DODGE |
| 4557466 | CHRYSLER |
| 4557468 | CHRYSLER |
| 4793110 | CHRYSLER |
| 4793210 | CHRYSLER |
| 4793210 | DODGE |
| 4793210AB | CHRYSLER |
| 8019370 | FRIESEN |
| 8213115 | POWERMAX |
| 830.501.082.018 | PSH |
| 830.501.082.210 | PSH |
| 830.501.082.215 | PSH |
| 830.501.082.265 | PSH |
| 830.501.082.550 | PSH |
| 830.501.082.605 | PSH |
| 88213115 | POWERMAX |
| 8EA737239-001 | HELLA |
| 9007045009 | BOSCH |
| 9007045020 | BOSCH |
| 944280193700 | MAGNETI MARELLI |
| AES2229 | AUTOELECTRO |
| ANM97398X | ANDEL |
| CGB-25178 | AINDE |
| CS990 | HC PARTS |
| DRS5178 | DELCO |
| DRZ5178 | DELCO |
| F032111396 | CARGO |
| LRT00229 | LUCAS |
| LRT229 | LUCAS |
| MRS19370 | MAGNETI MARELLI |
| PRSW225 | 3EFFE |
| S0028 | AS-PL |
| S1035B | PRESTOLITE |
| SS510 | SOVEREIGN |
| STR1371 | ELECTROLOG |
| STR50229 | WOODAUTO |
| STRW225 | 3EFFE |
| STX200928 | STARDAX |
Video/Publications
