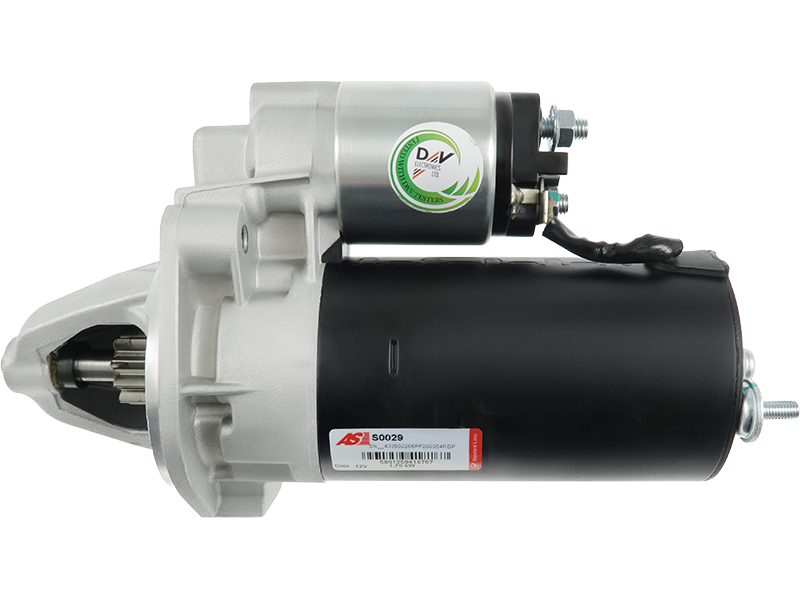

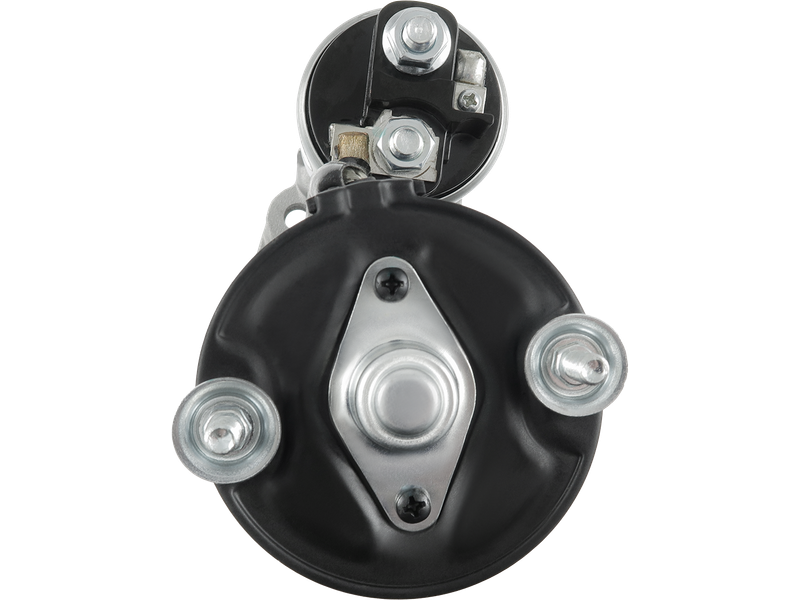

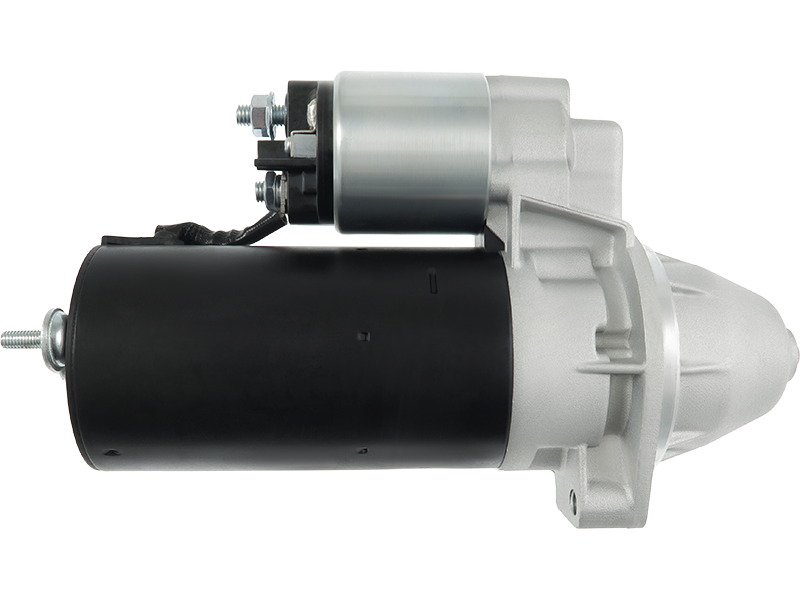

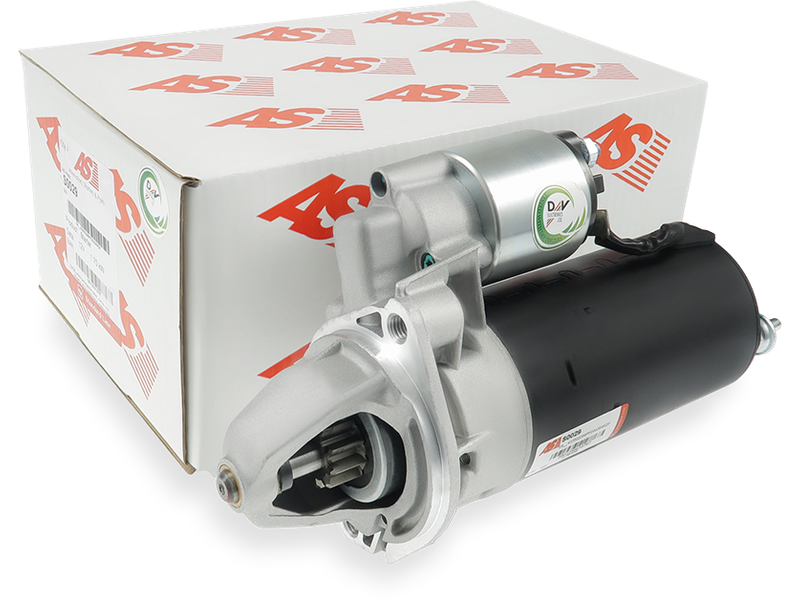

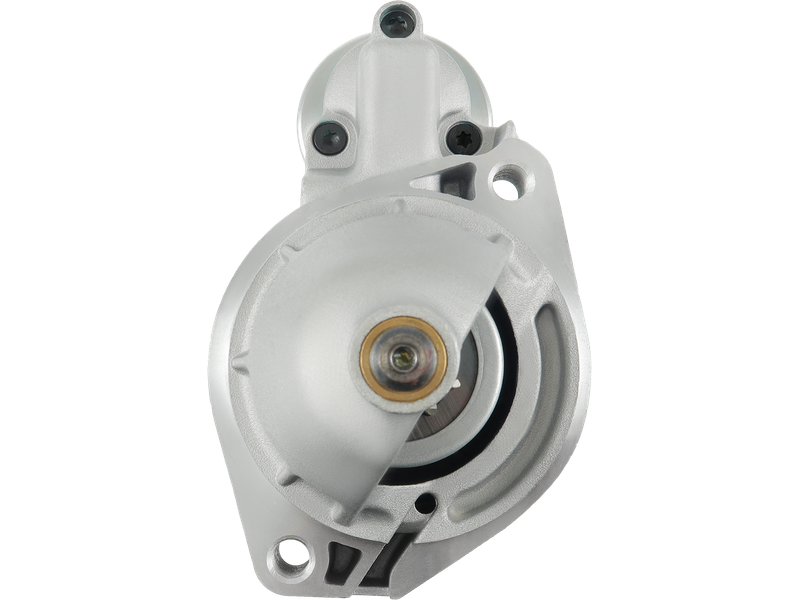

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 258.84 including GST
NZ$ 225.08 excluding GST
or four payments of $64.71
with
Learn More
each
S0029
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001110016Associated Numbers
0001110016 0001110075 0001110091 0001110112 0031515001 0041514501 0041516501 0041517001 0986013150 10360 111851 11284 17038N 17698N 20401821BN 20500656 22.0360 25-1252 3565 42013150 438199 455674 6010128 8013150 8212905 88212905 8EA726108-001 A0031515001 A0041514501 A0041516501 A0041517001 AES6156 AEY2028 CS360 CST10128AS DRS3150 DRS3150N EAA-121275 IS9430 LRS00656 LRS02028 S1057B S1058B SS850 STR50023 VS308Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 270 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Korando 3.2 | [M104.995] | 01.1999- |
| DAEWOO | Korando 3.2 | [M104.995] | 01.1999- |
| MAYBACH | Maybach 5.5 V12 | [M285.950] | 09.2002- |
| MERCEDES BENZ | 190 E 2.6 | (201)[M103.942] | 09.1986-08.1993 |
| MERCEDES BENZ | 260 E 2.6 | (124)[M103.940] | 09.1985-08.1992 |
| MERCEDES BENZ | 260 E 2.6 4-Matic | (124)[M103.940] | 12.1986-12.1989 |
| MERCEDES BENZ | 260 E 2.6 4-Matic | (124)[M103.943] | 09.1986-08.1992 |
| MERCEDES BENZ | 260 SE 2.5 | (126)[M103.941] | 09.1985-06.1991 |
| MERCEDES BENZ | 280 E 2.8 | (124)[M104.942] | 10.1992-06.1993 |
| MERCEDES BENZ | 280 TE 2.8 | (124)[M104.942] | 10.1992-06.1993 |
| MERCEDES BENZ | 300 CE-24 3.0 | (124)[M104.980] | 09.1989-12.1992 |
| MERCEDES BENZ | 300 E-24 3.0 | (124)[M104.980] | 09.1988-08.1992 |
| MERCEDES BENZ | 300 E 2.9 | (124)[M103.980] | 06.1985-12.1985 |
| MERCEDES BENZ | 300 E 3.0 | (124)[M103.983] | 08.1985-08.1992 |
| MERCEDES BENZ | 300 E 3.0 4-Matic | (124)[M103.983] | 09.1986-02.1992 |
| MERCEDES BENZ | 300 E 3.0 4-Matic | (124)[M103.985] | 09.1986-06.1993 |
| MERCEDES BENZ | 300 SE 2.9 | (126)[M103.981] | 01.1986-06.1991 |
| MERCEDES BENZ | 300 SE 3.2 | (140)[M104.990] | 03.1991-05.1993 |
| MERCEDES BENZ | 300 SE 3.2 | (140)[M104.994] | 03.1991-04.1993 |
| MERCEDES BENZ | 300 SEL 2.9 | (126)[M103.981] | 09.1986-06.1991 |
| MERCEDES BENZ | 300 SEL 3.2 | (140)[M104.990] | 03.1991-05.1993 |
| MERCEDES BENZ | 300 SEL 3.2 | (140)[M104.994] | 05.1993-10.1998 |
| MERCEDES BENZ | 300 SL-24 3.0 | (129)[M104.981] | 03.1989-07.1993 |
| MERCEDES BENZ | 300 SL 2.9 | (107)[M103.982] | 09.1985-08.1989 |
| MERCEDES BENZ | 300 SL 3.0 | (129)[M103.984] | 03.1989-08.1993 |
| MERCEDES BENZ | 320 CE 3.2 | (124)[M104.992] | 10.1992-05.1993 |
| MERCEDES BENZ | 320 E 3.2 | (124)[M104.992] | 10.1992-06.1993 |
| MERCEDES BENZ | 600 SE 6.0 | (140)[M120.980] | 04.1991-09.1998 |
| MERCEDES BENZ | C 280 2.8 | (202)[M104.941] | 05.1993-05.1997 |
| MERCEDES BENZ | C 36 AMG 3.6 | (202)[M104.941] | 01.1994-05.1997 |
| MERCEDES BENZ | E 280 2.8 | (124)[M104.942] | 06.1993-06.1996 |
| MERCEDES BENZ | E 280 3.0 | (124)[M104.942] | 06.1993-06.1995 |
| MERCEDES BENZ | E 280 E 2.8 | (210)[M104.945] | 01.1996-02.1997 |
| MERCEDES BENZ | E 300 3.0 4-Matic | (124)[M103.985] | 06.1993-06.1995 |
| MERCEDES BENZ | E 300 CE 3.0 | (124)[M103.983] | 03.1987-05.1993 |
| MERCEDES BENZ | E 300 CE 3.0 | (124)[M103.983] | 03.1987-12.1989 |
| MERCEDES BENZ | E 320 3.2 | (124)[M104.992] | 06.1993-06.1998 |
| MERCEDES BENZ | E 320 3.2 | (124)[M104.995] | 06.1993-06.1998 |
| MERCEDES BENZ | E 320 3.2 | (210)[M104.992] | 06.1995-02.1997 |
| MERCEDES BENZ | E 36 AMG 3.6 | (124)[M104.992] | 03.1993-02.1994 |
| MERCEDES BENZ | G 320 3.2 | (463)[M104.996] | 09.1994-11.1997 |
| MERCEDES BENZ | S 280 2.8 | (140)[M104.944] | 02.1993-10.1998 |
| MERCEDES BENZ | SL 280 2.3 | (129)[M104.943] | 08.1993-05.1998 |
| MERCEDES BENZ | SL 320 3.2 | (129)[M104.991] | 09.1993-05.1998 |
| SSANGYONG | Korando 3.2 | [M104.995] | 01.1999- |
| SSANGYONG | Korando 3.2 4WD | [M104.995] | 07.1996-12.2000 |
| SSANGYONG | Musso 3.2 4WD | [M104.992] | 06.1996- |
Reference Information
22.0360 0986013150 AEY2028 003151500180 0001110112 AES6156 STR1172 004151650180 STRW218 1611513001 1621513001 R5134510AB A005151130180 8013150 5010448 1621513401 A0041514501 5103581AB 550.501.102.010 25-1252 LRS02028 0001110091 5103581AA STR00301 A004151970180 0041514501 A0061513001 A0041517001 111851 11284 220134 A0061513401 A0041519701 20500656 004151700180 A004151700180 STX200122 0061513001 STX200002 0041517001 550.501.102.215 3151500180 STX200002R 0041519701 05103581AA 0051511301 0061513401 05103581AB 4151700180 S1058B 10360 A004151920180 CS360 A0051516601 004151450180 A004151450180 8EA726108-001 0001110075 550.501.102.500 550.501.102.900 550.501.102.901 438199 VS308 0051516601 455674 17698N 05134510AA A004151650180 A0031515001 A0041519201 A003151500180 S1057B DRS3150N CST10128AS A0071519201 05134510AB 003-130116 004151920180 0031515001 0041519201 0071519201 05073919AA 3130116 42013150 MAV3120 005151130180 MT130116 330512 PRSW218 A0041518901 ANM15370X MS123 5073919AA CS1044 S0029 1005831549 3565 004151970180 STX200074 5134510AA 5134510AB STX200122R STX200355 0041518901 DRS3150 STM762 17038N A1005831549 SS850 0001110016 005151660180 A005151660183 550.501.102.018 A005151660180 005151660183 IS9430 LRS2028 A0071518901 0041513901 A004151890180 STX200074R 6010128.0 A0041516501 550.501.102.550 S12BH0468A2 88212905 0071518901 20401821BN A0041513901 A1611513001 1516655R 8212905 0041516501 STR10283 004151890180Video/Publications
