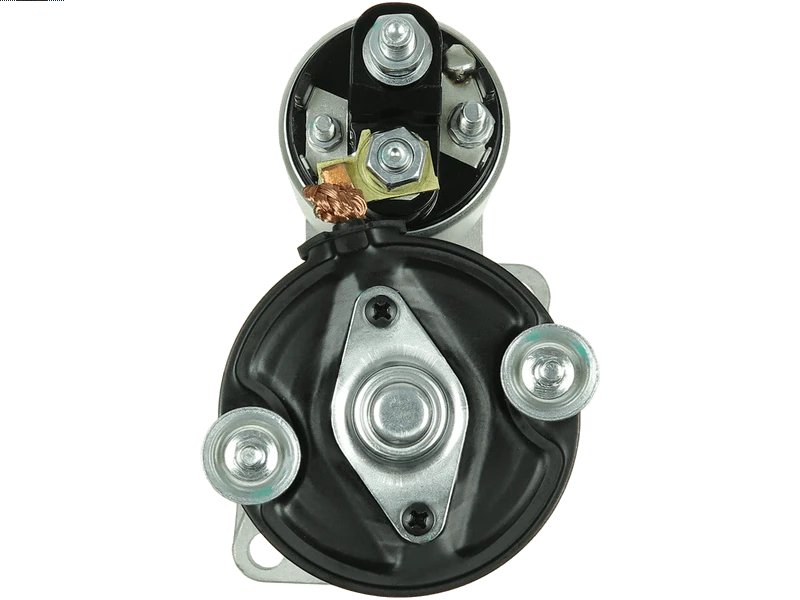

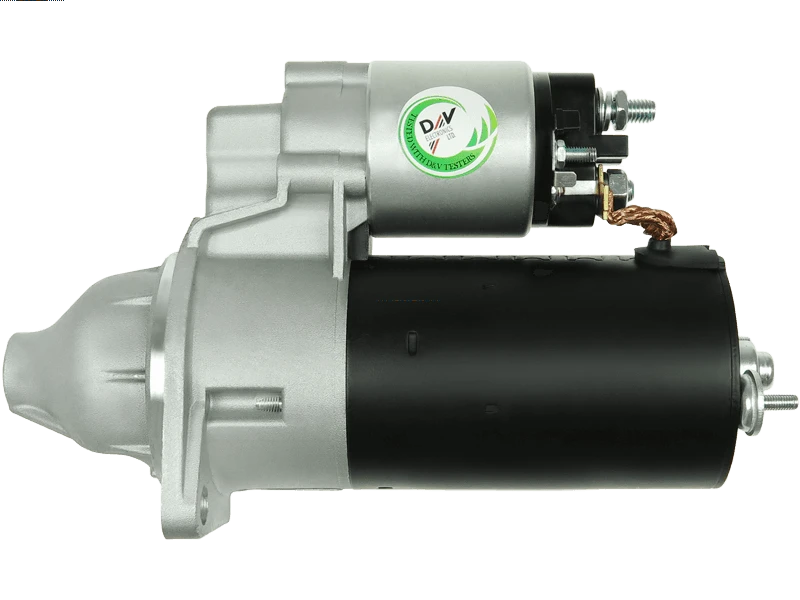

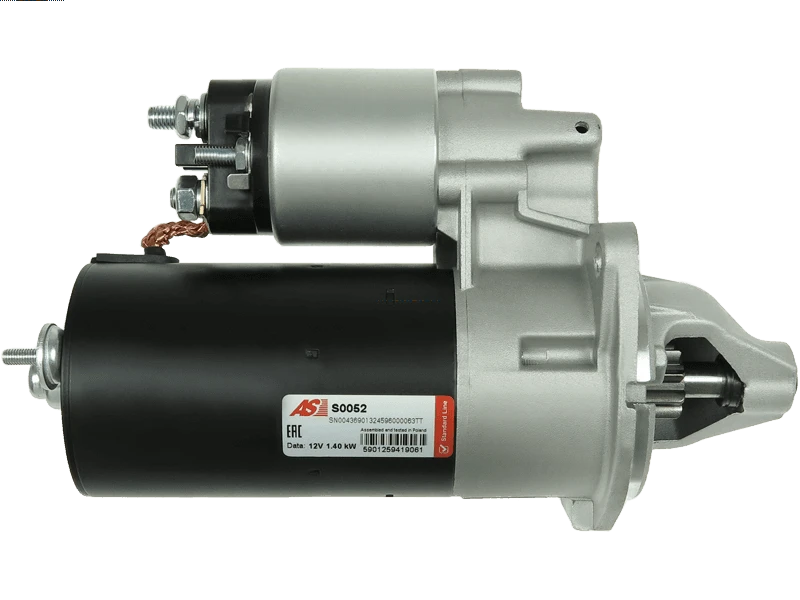

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 250.01 including GST
NZ$ 217.40 excluding GST
or four payments of $62.50
with
Learn More
each
S0052
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108018Associated Numbers
0001108018 0001108064 0986014840 1005821086 10377 111400 11640 12411279747 12411720643 12411726504 12411726508 17140N 20401431BN 20500963 22.0377 26-1175 3414 42014840 455676 6010134 63223433 8014840 8213103 88213103 8EA726125-001 AES9163 CS377 CST10134AS DRS4840 EAA-121455 LRS00963 SS303 STR50210 UD20335S snb8064 Bosch show 0001108249 001108064 063223433 Magneti Marelli ruil 0986014847 11014840 EuroTec 11139306 Mahle Cargo EAI 120200A Opel BMW 12411718750 12411720642 12412289185 1279747 1285 Sanden 1285SP Spidan 1361874 1514840 Ford 17140 Lester 1726504 1726508 210502092 PSH 2289185 230587 261175 Elstock 315106092 DRI Valeo 63223433010 Friesen 8014840F 8EA726125001 Hella 91156964 Wilson 914840 Remy 943223433 A14840 ATL AZE2120 HC F042002006 F042S02006 HCS377 IS9306 Lucas LRS963 S26016 Hitachi SP1285 SR443X (USA) STR1119sa Electrolog STR2006 Unipoint STR23771 Stabeco STR78008sa SNB8064Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 244 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9. 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 320 2.0 i | (E30)[M20B20] | 01.1988-12.1991 |
| BMW | 320 2.0 i L-Jetronic | (E30)[M20B20] | 07.1987-03.1993 |
| BMW | 320 2.0 i Motronic | (E30)[M20B20] | 07.1987-03.1993 |
| BMW | 320 2.0 iS | (E30)[S14204EA] | 05.1988-12.1990 |
| BMW | 325 2.5 i | (E30)[M20B25] | 12.1986-10.1993 |
| BMW | 325 2.5 Xi 4x4 | (E30)[M20B25] | 01.1987-03.1993 |
| BMW | 325 2.7 E | (E30)[M20B27] | 01.1987-12.1988 |
| BMW | 520 2.0 i | (E34)[M20B20] | 01.1988-08.1991 |
| BMW | 525 2.5 i | (E34)[M20B25] | 01.1988-08.1991 |
| BMW | 525 2.7 E | (E28)[M20B27] | 01.1987-12.1987 |
| BMW | Z1 2.5 | [M20B25] | 06.1988-06.1991 |
Reference Information
330529 943223433010 20500963 0986014840 MAV121340 12411361022 1720642 STX200182 210.502.092.010 1005821086 42014840 12411279747 88213103 17140N 10377 STR50210 20401431BN 8213103 0001108064 8014840 SS303 1361874 6010134.2 210.502.092.461 CS377 63223433 6010134.0 STX200273 DRS4840 12411719999 943223433 LRS00963 944280148400 12411361874 12411735786 0001108018 5010411 MRS14840 26-1175 20401431RC STR1119 12411718750 12411726508 UD20335S 12411720643 3414 LRS963 12411720642 12411726504 S0052 STRW437 11640 AES9163 ANM17060X 111400 12411735608 PRSW437 CST10134AS 210.502.092.280 2289185 8EA726125-001 12412289185 22.0377 S12BH0341A2 MSR333 455676 CST10134RSVideo/Publications
S0052View your shopping basket or Browse other items in Starter Motors.
